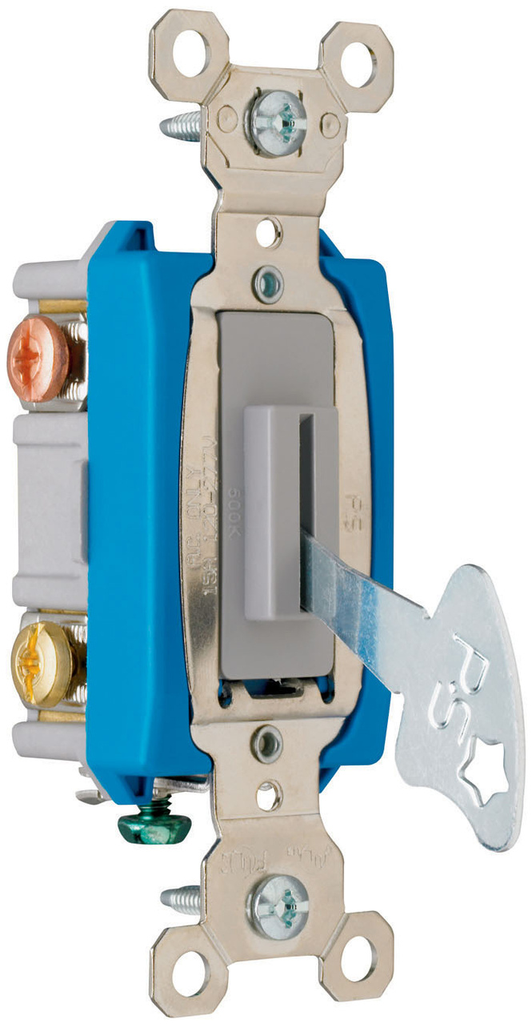

Product image for P&S PS15AC3L 15A 120/277VAC B+S WIR
Image thumbnail 0
Image thumbnail 1
Email

P&S PS15AC3L 15A 120/277VAC B+S WIR

Manufacturer: Legrand / Pass & Seymour | Catalog # PS15AC3L | North Coast Part # 363290
$73.28 /ea
ea
Order in multiples of 10 (pack qty)
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet Brochure
3-Way Lock Switch, Back and Side-Wire, 15A 120/277V (Key can be removed in both positions)

Technical Information

Actuator
Key, Toggle
Amperage
15 Amp
Applications
Commercial,Industrial
Contact Rating
120 V
Duty Rating
Extra Heavy Duty
Grade
Industrial
Indoor Outdoor
Indoor
Load Type
CFL,Fluorescent,Halogen,Incandescent,LED,Universal,Xenon
Material
Thermoplastic
Mounting Type
Wall Box
Number of Gangs
1
Number of Poles
3 Pole
Number of Switches
1
Size
3.3"
Switch Type
Toggle
Type
3 Way
Voltage
120 Volt
Wattage
3 Watt

Manufacturer Information

Brand
Pass & Seymour
Sub Brand
Pass & Seymour

General Product Info

12-Digit UPC
785007195606
Color
Gray
Finish
Matte
GTiN
00785007195606
Product UPC
78500719560
UNSPSC
39121507

Dimensions

Depth
1.073 Inch
Height
3.281 Inch
Warranty Length
1 yr
Width
1.32 in

Certifications and Compliance

Certifications
CULUS,FEDSPEC
Country of Origin
Mexico
Features
  • External screw-pressure-plate back and side wired. Accepts #14 - #10 AWG copper or copper-clad conductors.
  • Heavy-gauge one-piece copper alloy contact arm virtually eliminates contact bounce.
  • Cam controls fast ''make'' and positive ''break'' to minimize arcing.
  • Heavy-duty bumper pads for quiet operation.
  • High strength thermoplastic polycarbonate toggle.
  • Back body made of glass-reinforced nylon.
  • Locking support provides resistance to face and back body separation.
  • Oversized silver alloy contacts for long life and better heat dissipation.
  • Grounding terminal is standard.
  • Shallow design for ease of installation.
  • Strap nickel-plated steel with integral ground.
  • Auto-ground clip assures positive ground.
  • For covering patents, see www.legrand.us/patents.
  • For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.
Certifications
  • cULus Listed
  • Federal Spec Listed
