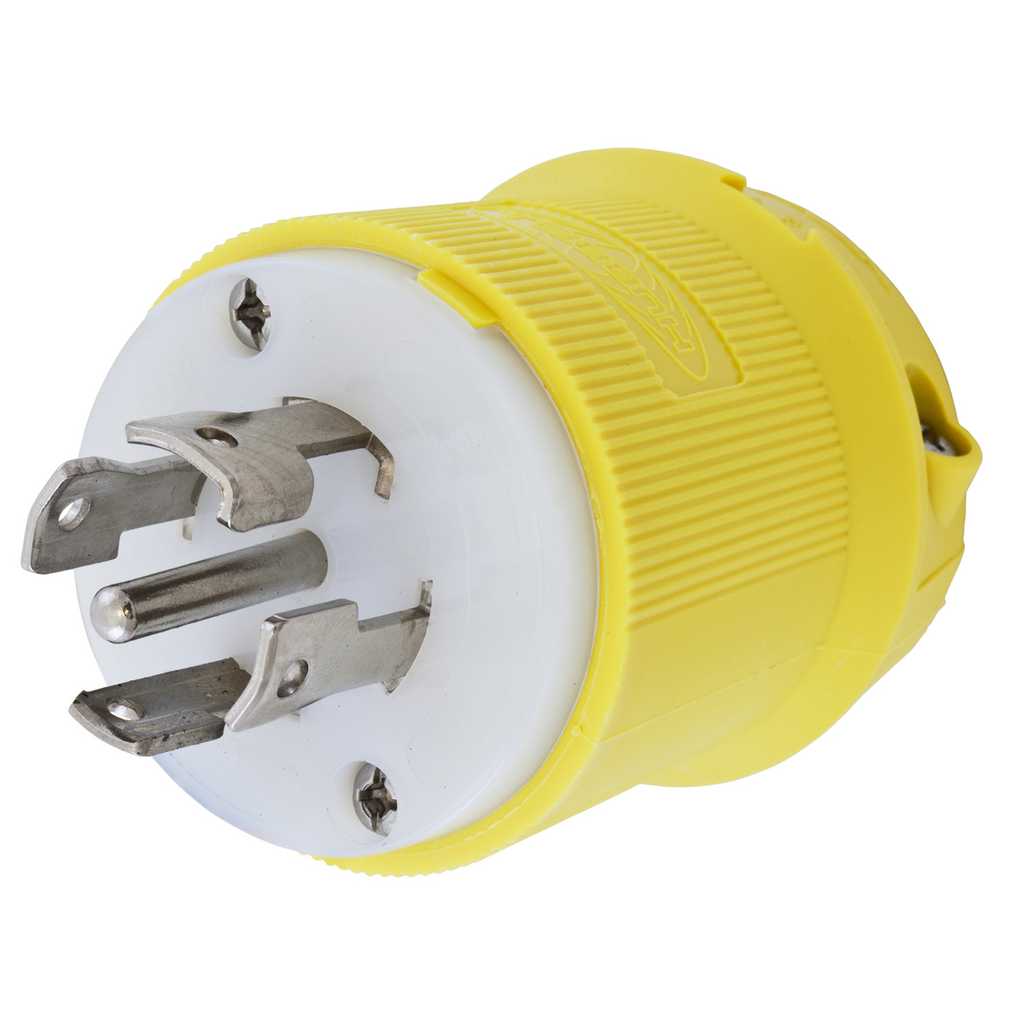

HCI HBL28CM11 30A 3Y 120/208V TL PL

Manufacturer: Hubbell / Kellems | Catalog # HBL28CM11 | North Coast Part # 363436
$138.13/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet Product Catalog Page Installation / Instruction Manual
Locking Devices, Twist-Lock®, Corrosion Resistant Insulgrip® Plug, 30A, 30A, 3 Phase Y 120/208V AC, 4 Pole, 5 Wire Grounding, NEMA L21-30P, Yellow nylon

Technical Information

Amperage
30 Amp
Applications
Power Connection
Conductor Size
10-8 AWG
Cord Type
Portable
Current
30 Amp
Horsepower
3 hp
Material
Nylon
Mounting Type
Cord
NEMA
L21-30P
Number of Phases
3 Phase
Number of Poles
4 Pole
Number of Wires
4 Wire
Operating Temperature
-40 degrees C
Screw Material
#10-32 Bronze
Size
2.33 in x 2.33 in x 2.75 in
Standard
CSA C22.2 No.42,Fed.Spec. W-C-596,UL 498
TC Connection
Terminal Screws
Type
Male
Voltage
120/208 Volt
Wattage
6240 Watt
Wire Size
16-8 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Twist-Lock®

General Product Info

12-Digit UPC
783585039770
Color
Yellow
Environmental Conditions
Corrosion-Resistant
GTiN
00783585039770
Housing Material
Yellow Nylon
Product UPC
78358503977
Weight
0.25 lb

Dimensions

Height
2-3/4 Inch
Length
2.33 Inch
Width
2.33 in

Certifications and Compliance

Country of Origin
USA
Features
  • Nickel plated blades and stainless steel screws provide maximum corrosion resistance
  • Ribbed nylon housing provides a secure grip and impact and chemical resistance
  • Superior cord grip design protects terminations from excess strain
  • Integral dust shield protects wiring chamber from dust or contaminants
  • Corrosion Resistant
