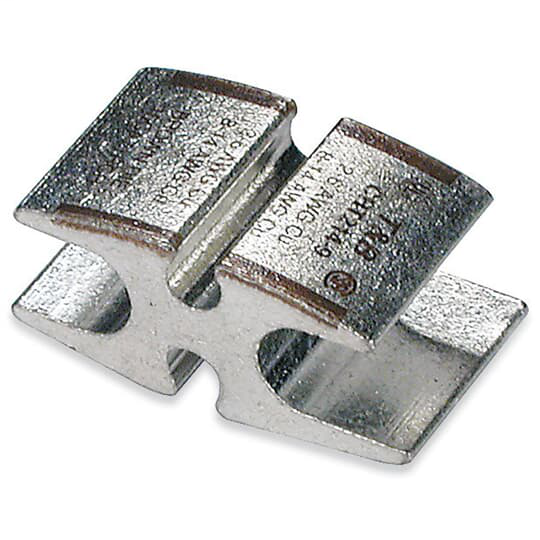

Product image for TB CHT814-10 COPPER H-TAP GREEN
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

TB CHT814-10 COPPER H-TAP GREEN

Manufacturer: Thomas & Betts | Catalog # CHT814-10 | North Coast Part # 365484
$4,304.20/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet Brochure Product Catalog Page Installation / Instruction Manual
Copper H-Tap for Wire Range Main: 8-14 (8-14 Flex), Branch 8-14 (8-14 Flex), Green 37R

Technical Information

Conductor Size
14-8 AWG
Material
High Conductivity Extruded Copper
Standard
UL E9809
Strip Length
1/2 in
Tap Size
8 to 14 AWG
Type
H-Tap
Voltage
600 Volt

Manufacturer Information

Brand
ABB
Sub Brand
Color-Keyed®

General Product Info

12-Digit UPC
786210895987
Finish
Electro-Tin Plated
GTiN
00786210895987
Product UPC
78621089598
Used With
TBM15I Hydraulic Crimper Head

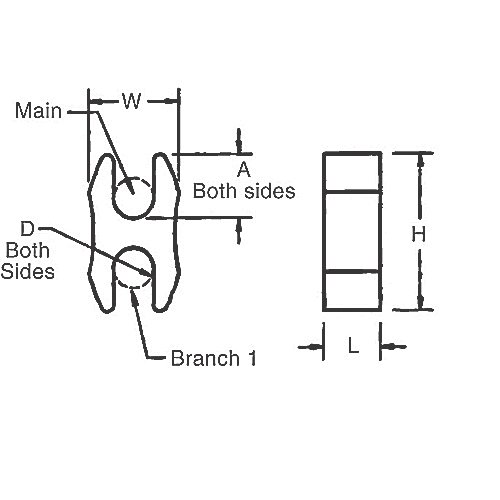

Dimensions

Height
0.62 Inch
Length
0.37 Inch
Width
0.6 in
Certifications
  • CSA
  • UL
Notes
  • Available packaged with HTC series covers, add WC to catalog number.
  • Requres adapter catalog number 15500-TB when used with hydraulic head TBM15I.
  • Copper per ASTM designation B-124-55 Alloy 12
Features
  • Color-coded for easy matching with proper die.
