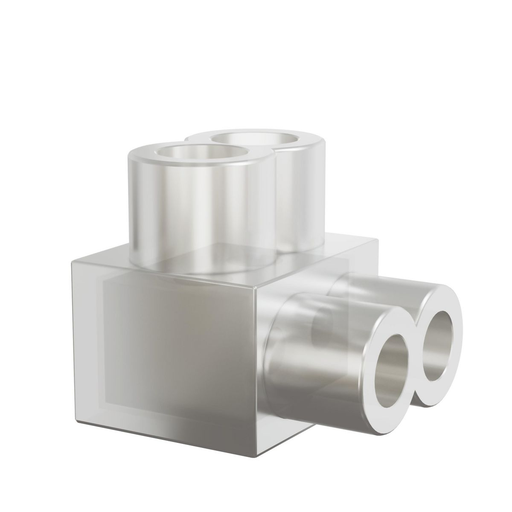

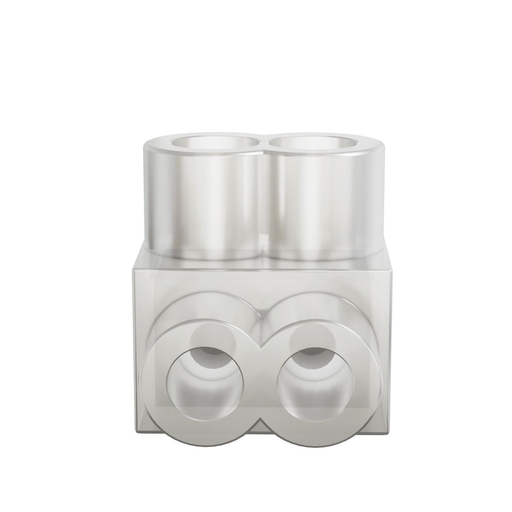

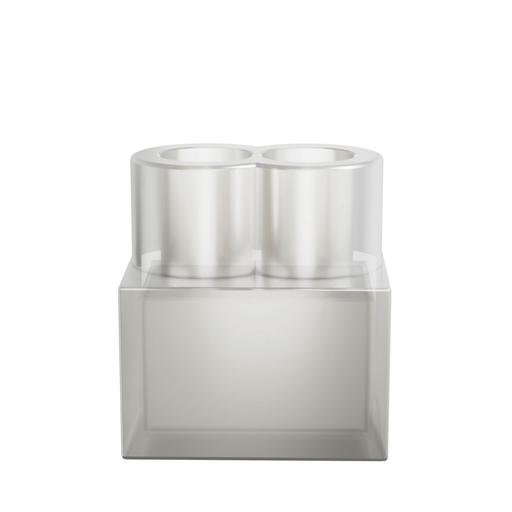

Product image for Burndy BIT4 Aluminum Multiple Tap Connector, Clear Insulated, 2 Port, 1 Sided Entry, 14-4 AWG, Al/Cu Rated
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Email

Burndy BIT4 Aluminum Multiple Tap Connector, Clear Insulated, 2 Port, 1 Sided Entry, 14-4 AWG, Al/Cu Rated

Manufacturer: Burndy | Catalog # BIT4 | North Coast Part # 36595
$21.52/ea
ea
Log in or register to view your price, purchase history, and more!
604 available

For Pick Up

at Auburn Closes 4:00pm PT
604 available

For Delivery

Order by 4:00pm PT for delivery tomorrow
Not in local stock *
Check another branch
Buy American Compliant Buy American Compliant Specification Sheet
Aluminum Multiple Tap Connector, Clear Insulated, 2 Port, 1 Sided Entry, 14-4 AWG, Al/Cu Rated.

Technical Information

Applications
Indoor use, Copper or Stranded Aluminum
Conductor Size
14-4 AWG
Connection Type
Screw
Direct Burial?
No
Insulation Type
Plastisol
Material
Aluminum
Number of Ports
2
Number of Screws
2
Plated?
No
Plating Type
Unplated
Port Number
2
Size
1.26 IN Height X 1.26 IN Width X 1.16 IN Length
Standard
CSA,E2186,UL
Stud Size
1/8 in
Temperature Rating
90 degrees C
Type
BIT, One Side
Voltage
600 Volt

Manufacturer Information

Brand
Burndy
Sub Brand
Unitap™

General Product Info

12-Digit UPC
781810134146
GTiN
00781810134146
Product UPC
78181013414

Dimensions

Height
1-1/4 Inch
Length
1.08 Inch
Overall Length
27 mm
Width
29 mm

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
USA
CSA
Yes
Features
  • Type BIT and BITO (Offset) Multi-tap connectors are installed quickly and easily
  • Suitable for use on Code conductor
  • UL486B Listed, Dual-rated AL9CU.
