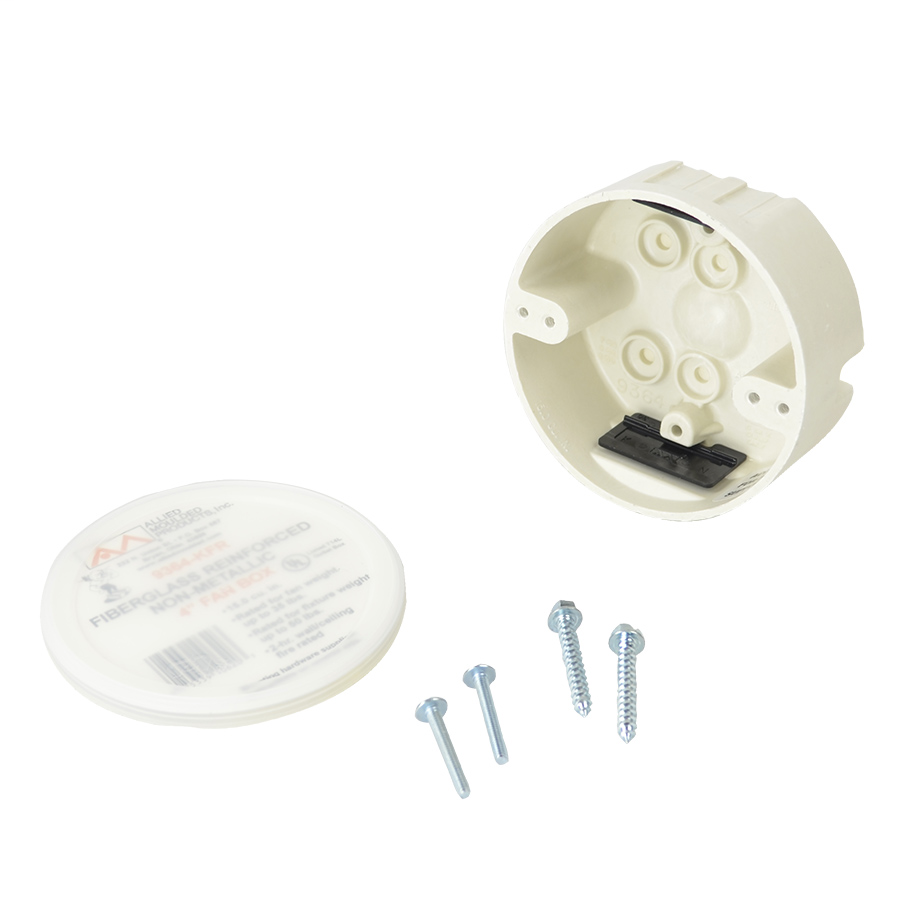

Product image for ALLIED 9364-KFR 15 CI 4 IN RND BTM
Image thumbnail 0

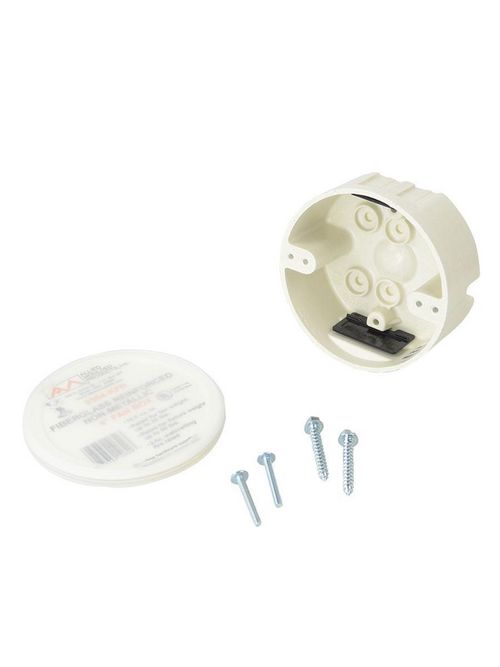

Image thumbnail 1
Email

ALLIED 9364-KFR 15 CI 4 IN RND BTM

Manufacturer: Allied Molded Products | Catalog # 9364-KFR | North Coast Part # 367838
$1,187.94/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet MDM Safety Data Sheet
15.0 Cu. In. 4" dia. round fan support box for use with nonmetallic sheathed cable - Machine tapped fixture holes, rigid hard box construction, no distortion with high temperatures, shatter resistant with low temperatures - New work residential construction 2 HR fire resistive walls and ceilings (50 lbs. fixture support) - Fiberglass reinforced polyester - thermoset box - Size: Depth=1 11/16", Dia=4" - Mount with Bottom mount - Speed Klamps™ factory installed

Technical Information

Applications
New work residential construction 2 HR fire resistive walls and ceilings (50 lbs. fixture support)
Cable Entry
Four "no Tools" Knockouts With 2 Speed "K" Clamps
Insulation Type
Non-Conductive,Non-Metallic
Material
Polyester
Mounting Type
Bottom
Size
Depth=1 11/16", Dia=4"
Type
4" Dia. Round Fan Support Box For Use With Nonmetallic Sheathed Cable

Manufacturer Information

Brand
Allied Moulded Products, Inc.
Sub Brand
FIBERGLASSBOX

General Product Info

12-Digit UPC
085339106203
Color
Beige,Tan
Construction
Injection Molded
GTiN
00085339106203
Product UPC
08533910620

Dimensions

Depth
1-11/16 Inch
Width
4 in
Features
  • Machine tapped fixture holes, rigid hard box construction, no distortion with high temperatures, shatter resistant with low temperatures, Speed \"K\" Clamps factory installed
Additional Materials
  • Polyvinyl chloride clamps
  • Plated carbon steel fasteners
Standards
  • ANSI / UL 514C: File No. E30594
Fire Resistance Classification in Floor-Ceiling Assemblies 2-Hours or Less
  • Note: For more details please refer to the UL fire resistive directory and Allied Mouldeds CEYY.9379 (Outlet boxes and fittings classified for fire resistance)
  • Distance between boxes in adjacent cavities may be reduced to 5 inches
Fire Resistance Classification in Wall Assemblies 2-Hours or less
  • Shall be separated by a horizontal distance of not less than 3 inches
Fire Test of Building Construction Materials
  • ANSI / UL 263: File No. CEYY.R9379 (Category / File No.)
  • Note: Products must also be certified to: ANSI / UL 514C
Application
  • New or old work residential construction 2 HR fire resistive walls and ceilings (35 lbs. fan support and 50 lbs. fixture support)
Specifications
  • Round Ceiling Box
