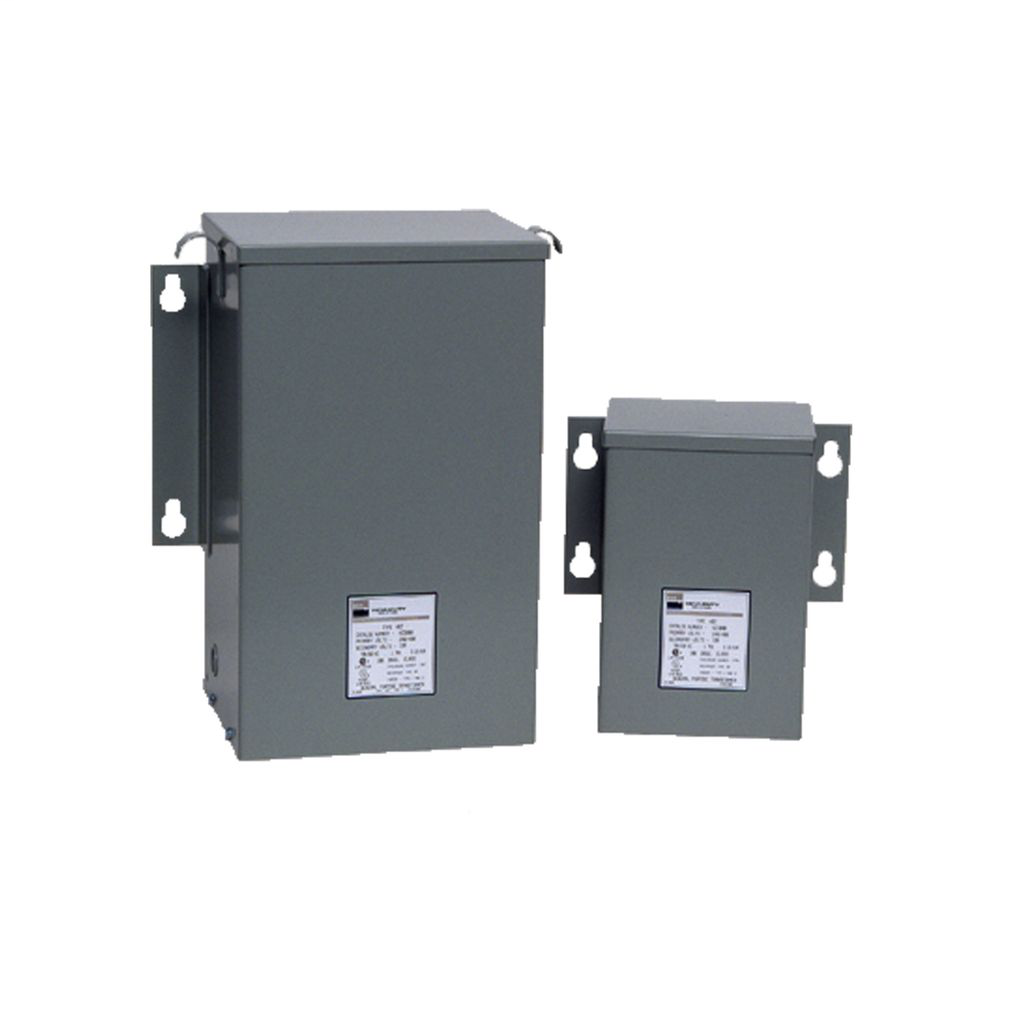

Product image for SHD HZ2000 2KVA 240X480-120
Image thumbnail 0
Image thumbnail 1
Email

SHD HZ2000 2KVA 240X480-120

Manufacturer: Hevi-Duty | Catalog # HZ2000 | North Coast Part # 36822
$1,314.90/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Buy American Compliant Buy American Compliant Specification Sheet Brochure Product Catalog Page
HZ Series industrial control transformers are designed for applications where cost or heat issues make mounting the transformer outside the control panel necessary. This encapsulated transformer has copper windings for industrial applications. The UL Class +180.C insulation system allows for a +80.C temperature rise under full load. Standard models are UL Listed/NEMA Type 3R (rain proof); however custom models are available for UL Listed/NEMA Type 4, 4X and 12 requirements.

Technical Information

Applications
SolaHD encapsulated transformers are rated for hazardous locations and harsh industrial environments.
Enclosure
NEMA 3R
Frequency
60 Hz
Max Output Current
41.7/83.3 A
Number of Phases
1 Phase
Primary Voltage
240/480, 230/460, 220/440 Volt Primary
Secondary Voltage
120/115/110 Volt Secondary
Temperature Rating
115 DEG C Temperature Rise Under Full Load
Type
Automation Transformers - Non-Ventilated 50 VA to 45 kVA
Wattage
10k Watt

Manufacturer Information

Brand
SolaHD

General Product Info

12-Digit UPC
783472112005
GTiN
00783472112005
Product UPC
78347211200

Dimensions

Height
12 Inch
Length
9 Inch
Width
14 in

Certifications and Compliance

Buy American Compliant
Y
Features
  • cULus, RoHS
  • UL Class +180°C insulation system
  • +80°C temperature rise under full load
  • Encapsulated housing with copper windings
  • Two case styles available: UL-3R (Design Style 1) and NEMA-4, 4X, 12 (Design Style 2)
  • UL Listed/NEMA Type 3R (rain proof)
  • Optional: UL Listed/NEMA Type 4 (wash down & dust proof)
  • Optional: UL Listed/NEMA Type 4X (corrosion proof)
  • Optional: UL Listed/NEMA Type 12 (dust proof)
