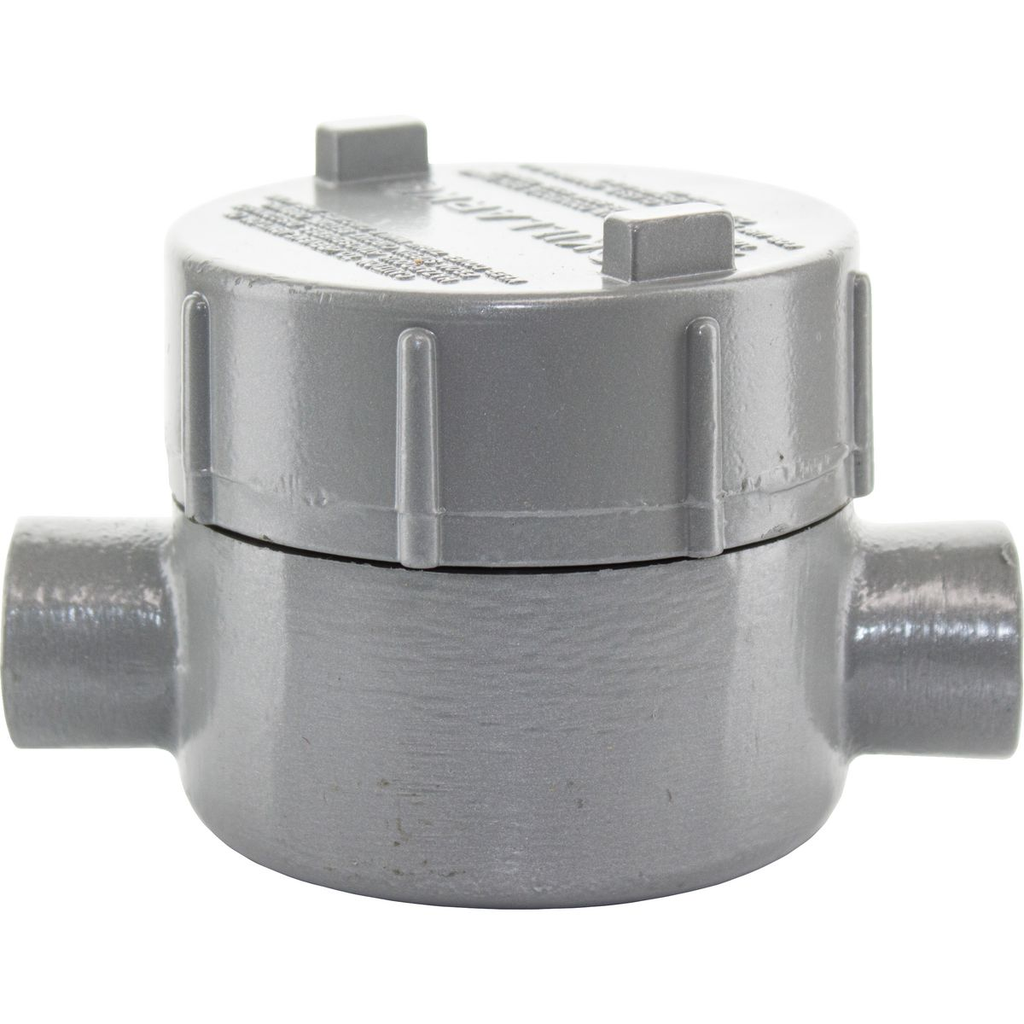

Product image for Killark GECCT-2-6TB GEC-TB 2-3/4" ID RD Body, "C" 3/4" Hubs, Qty 8, 2.5mm2 #12 AWG Panel Mount, UL/CSA, CL I, II, III, BCDEFG, Type 4 IP66, Terminal Box
Image thumbnail 0
Image thumbnail 1
Email

Killark GECCT-2-6TB GEC-TB 2-3/4" ID RD Body, "C" 3/4" Hubs, Qty 8, 2.5mm2 #12 AWG Panel Mount, UL/CSA, CL I, II, III, BCDEFG, Type 4 IP66, Terminal Box

Manufacturer: Hubbell / Killark | Catalog # GECCT-2-6TB | North Coast Part # 368479
$302.99/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet Installation / Instruction Manual
GEC-TB 2-3/4" ID RD Body, "C" 3/4" Hubs, Qty 8, 2.5mm2 #12 AWG Panel Mount, UL/CSA, CL I, II, III, BCDEFG, Type 4 IP66, Terminal Box

Technical Information

Applications
GE Series conduit boxes with terminals are installed in conduit systems within hazardous areas to: protect conductors in threaded rigid conduit; act as pull and splice boxes; interconnect lengths of conduit; change conduit direction; provide access to con
Cable Entry
0.75 in
Hub Size
3/4 in
Material
Aluminum
Size
3-11/16" H x 5-5/16" W x 3-5/8" D
Type
Aluminum outlet body with cover and terminal block

Manufacturer Information

Brand
Hubbell Incorporated
Sub Brand
Killark

General Product Info

12-Digit UPC
783936210384
Color
Gray
Finish
Powder Epoxy Paint
GTiN
00783936210384
Product Series
GE
Product UPC
78393621038

Dimensions

Height
5.563 Inch
Length
5.563 Inch
Width
4 in

Certifications and Compliance

Country of Origin
USA
Features
  • Water shedding cover-suitable for wet locations when mounted in upright position.
  • External cover threads on body protecting conductors from damage during pulling.
  • No pinching of conductors during cover installation.
  • Taper threaded hubs to provide ground continuity.
  • Smooth integral hub bushing to protect conductor insulation when pulling.
  • Weather-resistant finish.
  • Green ground screw standard in all boxes.
  • Weidmuller 6 point MK3 terminal block is mounted inside box on raised X type pad.
  • Box and cover are made of copper free aluminum.
  • Electrostatically applied gray powder coating.
  • Cover o-ring Nitrile gasket.
  • Water shedding cover-suitable for wet locations when mounted in upright position. External cover threads on body protecting conductors from damage during pulling. No pinching of conductors during cover installation. Taper threaded hubs to provide ground c
