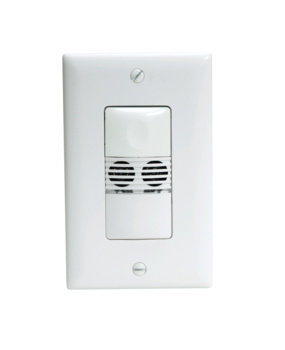

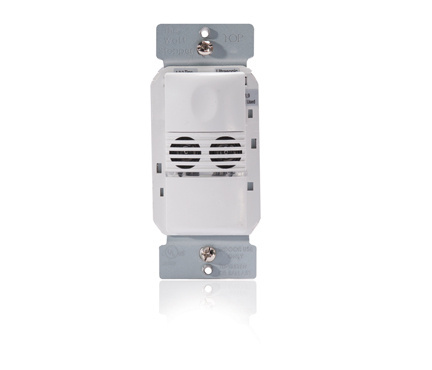

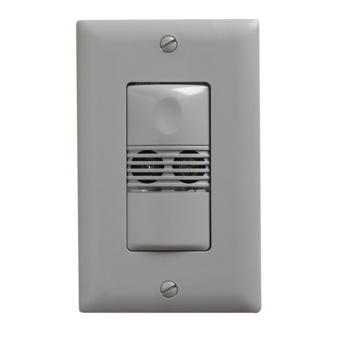

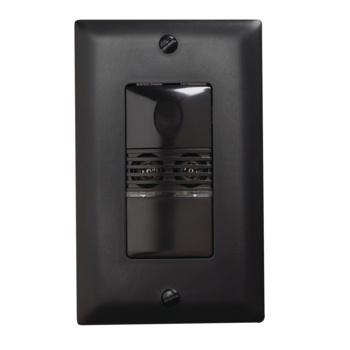

Wattstopper UW-100-W 120/277 VAC 50/60 Hz White Ultrasonic Wall Switch Occupancy Sensor

Manufacturer: Wattstopper | Catalog # UW-100-W | North Coast Part # 369571
$242.44/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet Brochure Installation / Instruction Manual CAD Drawing #1 CAD Drawing #2 CAD Drawing #3
The UW-100 ultrasonic wall switch sensor can turn lights OFF and ON based on occupancy. It is characterized by high sensitivity to small and large movements, appealing aesthetics, and a variety of features.

Technical Information

Applications
Restrooms/Utility/Storage Rooms
Enclosure
Plastic Housing
Indicator
LED
Operating Cycles
100M
Operating Temperature
35degrees C
Sensing Range
300 sq ft
Type
Commercial Wall Switch Sensor
Voltage
277 Volt

Manufacturer Information

Brand
Legrand
Sub Brand
Pass & Seymour

General Product Info

12-Digit UPC
754182919505
Environmental Conditions
95 PCT
GTiN
00754182919505
Product UPC
75418291950

Certifications and Compliance

Country of Origin
China
Features
  • Selectable operation, walk-through, test and presentation modes for increased energy savings and convenience
  • Defaults to Manual-ON operation for maximum energy savings
  • Part of a comprehensive line of PIR, Ultrasonic and Dual Technology wall switch sensors
  • High sensitivity for exceptional performance
  • Low profile design
