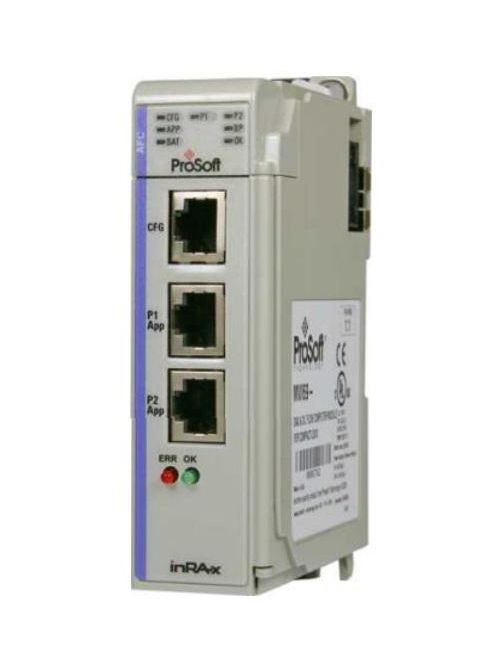

Product image for PROSOFT MVI69-MCM MODBUS MASTER/SLAVE SERIAL COMMUNICATION MODULE
Image thumbnail 0
Image thumbnail 1
Email

PROSOFT MVI69-MCM MODBUS MASTER/SLAVE SERIAL COMMUNICATION MODULE

Manufacturer: Prosoft Technology, Inc. | Catalog # MVI69-MCM | North Coast Part # 370501
$3,877.21/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
The MVI69-MCM Modbus Master/Slave Network Interface Module allows Rockwell Automation® CompactLogix™ Programmable Automation Controllers (PACs) and MicroLogix™ 1769-LRP Programmable Logic Controllers (PLCs) to interface with Modbus-compatible devices. Compatible devices include not only Modicon® PLCs but also a wide assortment of third-party devices found in nearly every industry.

Technical Information

Amperage
800 mA
Applications
Allows Rockwell Automation CompactLogix Programmable Automation Controllers (PACs) and MicroLogix 1769-LRP Programmable Logic Controllers (PLCs) to Interface with Modbus-Compatible Devices
Temperature Rating
32 - 140 degrees F
Voltage
5 VDC

Manufacturer Information

Brand
ProSoft Technology

General Product Info

12-Digit UPC
886739897629
Environmental Conditions
5 - 95% (Without Condensation) Relative Humidity
Product UPC
88673989762
Modbus Master/Slave Protocol Interface
  • Emulate Modbus Master or slave device on each individually-configurable application port
  • Supports Modbus RTU and Modbus ASCII protocol versions
  • Floating point data movement supported, including support for Enron, Daniel®, and other implementations
  • Suitable for SCADA and field device interface applications
Licensed Backplane Technology
  • Manufactured under license from Rockwell Automation
  • High-speed data transfer between MVI69 module and CompactLogix / MicroLogix processor
  • Installs as a Generic 1769 module, sample ladder logic included
  • View module data and status in RSLogix 5000 controller tags and UDTs
Specifications
  • Single Slot - 1769 backplane compatible
  • The module is recognized as an Input/Output module and has access to processor memory for data transfer between processor and module
  • Ladder Logic is used for data transfer between module and processor.
  • Configuration data obtained through user-defined ladder. Sample ladder file included
  • Supports all CompactLogix processors: L20/L23/L30/L31/L32/L35, L43 and L45 (L43 and L45 supported with RSLogix 5000 v16.03 or later)
  • Supports MicroLogix 1500 Controller with LRP firmware version 6.0 or newer.
Backed by ProSoft Technology
  • 20-year history of delivering high-quality, reliable solutions designed with you in mind
  • Free, unlimited, worldwide Technical Support by phone for pre-sale, set-up, or troubleshooting support helps you get going sooner and stay running longer
  • Three-Year Warranty ensures reliability and protects against equipment failures
  • Free ProSoft Software tools tightly integrate with our hardware...a simple and quick, total solution to help you make our products fit your applications
ProSoft Configuration Builder Software Included
  • Graphical drag-and-drop configuration tool for simple module configuration
  • Easy to use diagnostics window with menu-driven hardware and protocol diagnostics
  • View module database contents through serial connection to a desktop PC
