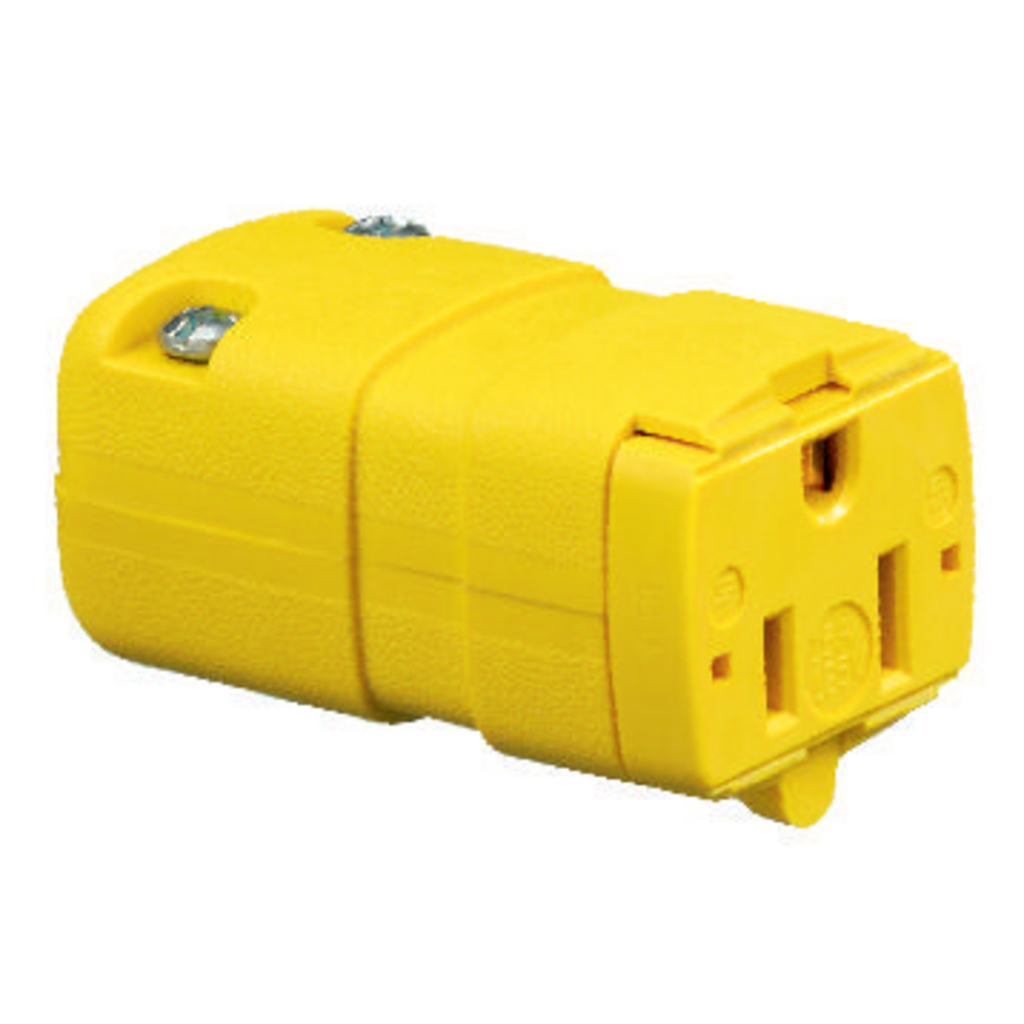

Product image for Hubbell HBL5963VY 15 Amp 125 Volt 2-Pole 3-Wire NEMA 5-15R Yellow Nylon Straight Blade Device Connector Body
Image thumbnail 0
Image thumbnail 1
Email

Hubbell HBL5963VY 15 Amp 125 Volt 2-Pole 3-Wire NEMA 5-15R Yellow Nylon Straight Blade Device Connector Body

Manufacturer: Hubbell / Kellems | Catalog # HBL5963VY | North Coast Part # 371100
$24.07/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet Product Catalog Page Installation / Instruction Manual
Straight Blade Devices, Female Connector Body, Valise Series, Industrial/Commercial Grade, Straight, 2-Pole 3- Wire Grounding, 15A 125V, 5-15R, Yellow, Single Pack.

Technical Information

Amperage
15 Amp
Applications
Industrial/Commercial
Conductor Size
18-16 AWG
Current
15 Amp
Horsepower
0.50 hp
Material
Nylon
NEMA
5-15R
Number of Conductors
3-Wire Grounding
Number of Phases
1 Phase
Number of Poles
2-2 Pole
Number of Wires
3 Wire
Operating Temperature
-40 degrees C
Rating
125 V
Size
Standard
Standard
C22.2 No. 42 File 280C,CSA,NEMA® WD-6,UL,UL498 File E1706
Style
Standard
TC Connection
Screw Terminals
Temperature Rating
-40 to 75 C
Type
Valise
Voltage
125 Volt
Wire Count
3
Wire Size
18-16 AWG

Manufacturer Information

Brand
Hubbell Incorporated
Sub Brand
Straight Blade

General Product Info

12-Digit UPC
783585019604
Color
Yellow
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
GTiN
00783585019604
Housing Material
Nylon
Product Series
Valise
Product UPC
78358501960
Weight
0.1 lb

Dimensions

Height
1.6 Inch
Length
2.91 Inch
Width
1.600 in

Certifications and Compliance

Certifications
CSA Certified To C22.2 No. 42 File 280,UL Listed To UL498 File E1706
Country of Origin
USA
Features
  • Hinged one piece body design for easy assembly
  • Powerful, offsetting cord grips clamp on individual conductors
  • Assembly screws are captive and will not fall out while wiring
  • Insulation displacement terminals reduce assembly time
