Hubbell HBL5969-VBLK 15A 125V VALISE Black Nylon Connector Body

Manufacturer: Hubbell / Kellems | Catalog # HBL5969VBLK | North Coast Part # 3717
$47.78/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet Product Catalog Page Installation / Instruction Manual
Straight Blade Devices, Female Connector Body, Valise Series, Industrial/Commercial Grade, Straight, 2-Pole 3- Wire Grounding, 15A 125V, 5-15R, Black, Single Pack.

Technical Information

Amperage
15 Amp
Applications
Industrial/Commercial
Conductor Size
14-12 AWG
Connection Type
Screw Terminal
Current
15 Amp
Horsepower
0.50 hp
Material
Composite
NEMA
5-15R
Number of Conductors
3
Number of Phases
1 Phase
Number of Poles
2-2 Pole
Number of Ports
2
Number of Wires
3 Wire
Operating Temperature
-40 degrees C
Size
Standard
Standard
C22.2 No. 42 File 280C,CSA,NEMA® WD-6,UL,UL498 File E1706
Style
Standard
TC Connection
Screw Terminals
Temperature Rating
-40 to 75 degrees C without Impact
Type
Standard
Voltage
125 Volt
Wire Count
3
Wire Size
18-12 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Valise®

General Product Info

12-Digit UPC
783585013275
Color
Black
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
GTiN
00783585013275
Product Series
Valise
Product UPC
78358501327
Weight
0.15 lb

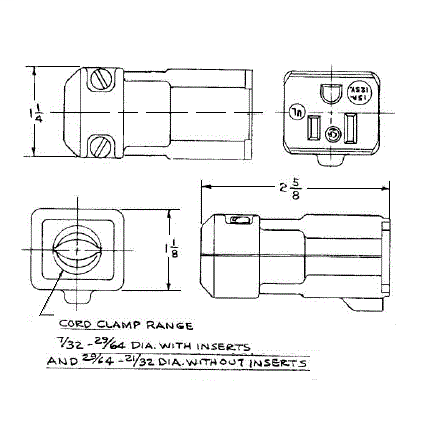

Dimensions

Height
2.68 Inch
Length
2.68 Inch
Width
1.32 in

Certifications and Compliance

Country of Origin
China
Features
  • Hinged one piece body design for easy assembly
  • Powerful, offsetting cord grips clamp on individual conductors
  • Assembly screws are captive and will not fall out while wiring
