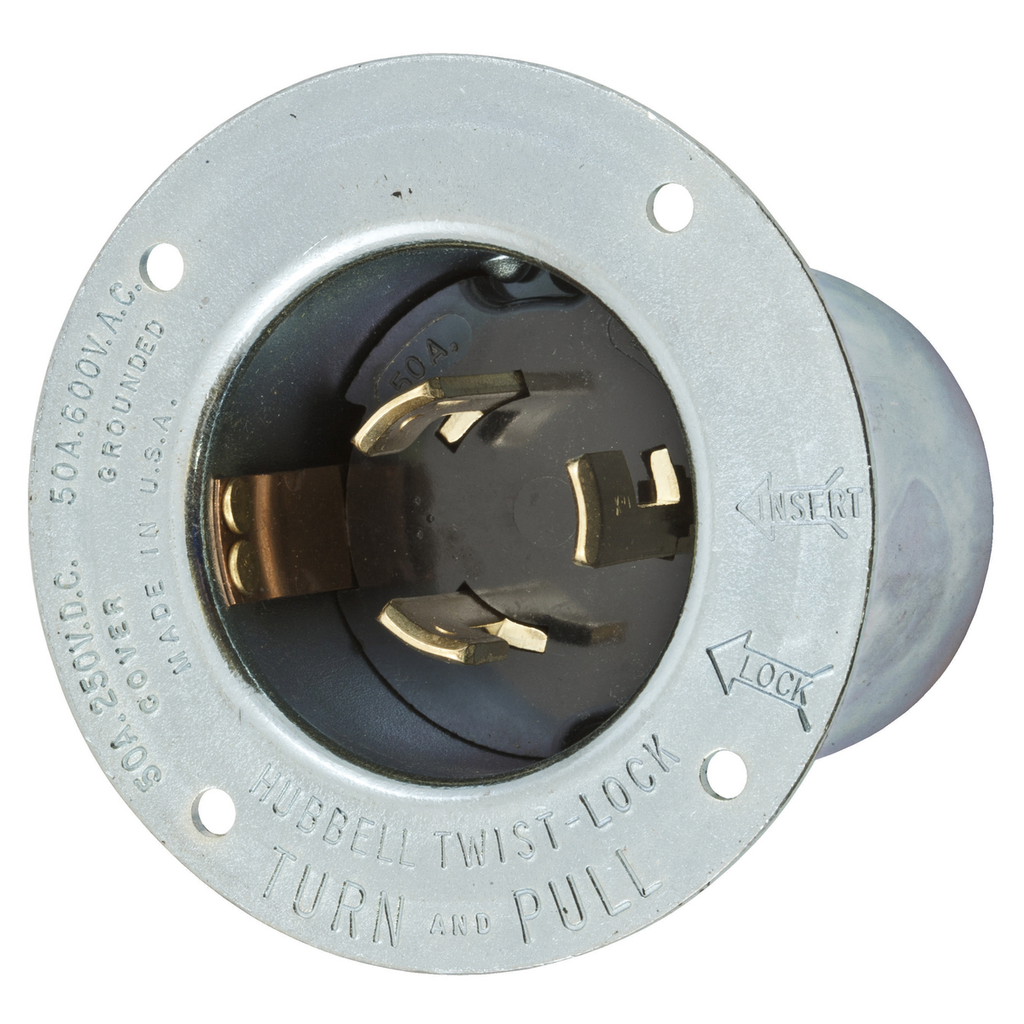

Product image for Hubbell HBL7958 Locking Flanged INLT, 3P4W, 50A 250VDC/600VAC
Image thumbnail 0
Image thumbnail 1
Email

Hubbell HBL7958 Locking Flanged INLT, 3P4W, 50A 250VDC/600VAC

Manufacturer: Hubbell / Kellems | Catalog # HBL7958 | North Coast Part # 377530
$306.93/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet Product Catalog Page Installation / Instruction Manual
Locking Devices, Twist-Lock®, Industrial, Flanged Inlet, 50A 250V/600V AC, 3-Pole 4-Wire Grounding, Non-NEMA, Screw Terminal, Zinc plated steel casing, thermoset interior, Metallic

Technical Information

Amperage
50 Amp
Applications
Extra Heavy Duty Industrial
Conductor Size
8-4 AWG
Current
50 Amp
Dielectric Strength
Withstands 2,000V minimum
Material
Steel
Number of Phases
3 Phase
Number of Poles
3-3 Pole
Number of Wires
4,4
Operating Temperature
-40 degrees C
Size
Standard Sized
Standard
CSA C22.2 No.42,UL 498
TC Connection
Pressure Screw Terminals
Type
Standard Single
Voltage
250 Volt
Wattage
30000 Watt
Wire Count
4
Wire Size
8-4 AWG

Manufacturer Information

Brand
Hubbell Incorporated
Sub Brand
50A Twist-Lock Inlets

General Product Info

12-Digit UPC
783585237589
Color
Metallic
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
GTiN
00783585237589
Product UPC
78358523758
Weight
0.85 lb

Dimensions

Height
2.62 Inch
Length
2.14 Inch
Width
3.50 in

Certifications and Compliance

Country of Origin
Puerto Rico
Features
  • Metallic flanged casing provides maximum strength and protection
  • Thermoset interior provides superior heat resistance
  • For Replacement Only
