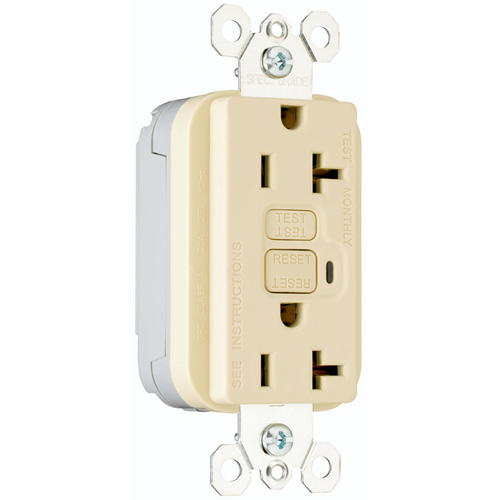

Product image for Pass & Seymour PT2095-I 20 Amp 125 VAC 2-Pole 3-Wire NEMA 5-20R Ivory Thermoplastic Duplex GFCI Receptacle
Image thumbnail 0
Image thumbnail 1
Email

Pass & Seymour PT2095-I 20 Amp 125 VAC 2-Pole 3-Wire NEMA 5-20R Ivory Thermoplastic Duplex GFCI Receptacle

Manufacturer: Legrand / Pass & Seymour | Catalog # PT2095I | North Coast Part # 380376
$40.33/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
From the innovator of the product category, comes a full range of Pass & Seymour GFCI receptacles to enhance safety, shorten installation times and increase productivity on the jobsite. Our PlugTail™ GFCI receptacles are the fastest-installing GFCI ever. Now you can beat tough deadlines on any commercial job.

Technical Information

Amperage
20 Amp
Grade
Specification
NEMA
5-20R
Style
Decorator
Type
PlugTail
Voltage
125 Volt

Manufacturer Information

Brand
Pass & Seymour

General Product Info

12-Digit UPC
785007167085
Color
Ivory
GTiN
00785007167085
Product Series
PlugTail
Product UPC
78500716708

Dimensions

Depth
1.2 Inch
Height
4.2 Inch
Length
4.2 Inch
Width
1.72 in
Features & Benefits
  • Faster, more reliable installation.
  • FSUL Listed (Federal Specification WC596).
  • SafeLock™ Protection: if critical components are damaged and ground fault protection is lost, power to receptacle is disconnected.
  • For covering patents, see www.legrand.us/patents.
  • Exceeds UL943 voltage surge requirements; survives 100x the required UL 3kA/6kV voltage surge test cycles.
  • Trip indicator light (red LED).
  • No exposed terminals create a finger safe application before, during, and after installation.
  • Mounting screws are shipped captive in the device and wall plate for easier installation.
  • High-impact-resistant thermoplastic construction.
  • Class A rated GFCI.
  • 10kA short circuit rating.
  • Button colors match the device face.
  • Built-in connector features large brass terminal blades to ensure consistent, reliable electrical connections to PlugTail Connector.
  • GFCI works with the existing 3 wire PlugTail Connectors creating a non-feed-thru application for facility owners. At rough-in just install the same right angle connector for GFCI and receptacle openings.
  • Dual-direction test and reset buttons.
  • Zinc-plated steel mounting strap.
  • Tri-drive screws.
  • Supplied with matching TP26 nylon wall plate.
Available Options
  • PlugTail™ Spec Grade 20A Duplex GFCI, Gray
  • PlugTail™ Spec Grade 20A Duplex GFCI, Brown
  • PlugTail™ Spec Grade 20A Duplex GFCI, Light Almond
  • PlugTail™ Spec Grade 20A Duplex GFCI, Ivory
  • PlugTail™ Spec Grade 20A Duplex GFCI, Black
  • PlugTail™ Spec Grade 15A Duplex GFCI, Red
  • PlugTail™ Spec Grade 20A Duplex GFCI, White
