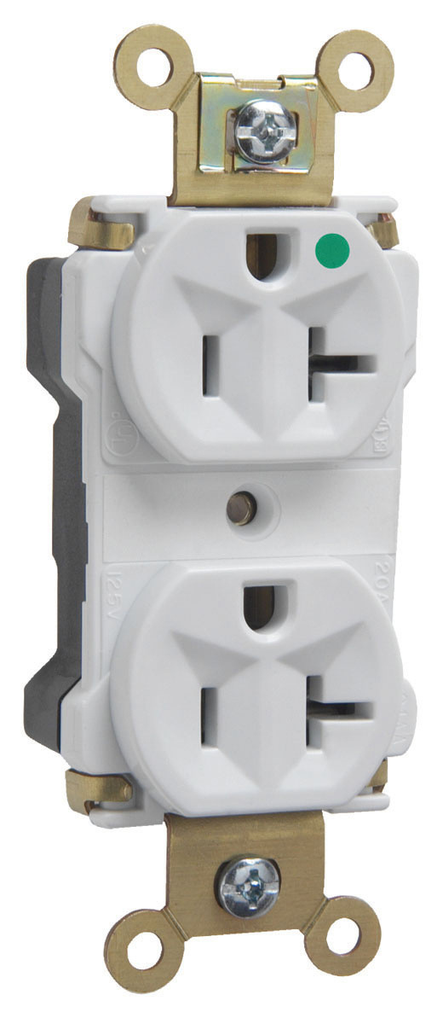

Pass & Seymour PT8300-W 20 Amp 125 VAC 2-Pole 3-Wire NEMA 5-20R White Nylon Extra Heavy Duty Duplex Receptacle

Manufacturer: Legrand / Pass & Seymour | Catalog # PT8300W | North Coast Part # 380642

$26.55/ea
ea
Adding...
Log in or register to view your price, purchase history, and more!
Usually ships within 11 to 17 days
PlugTailĀ® Extra Heavy-Duty Hospital Grade Duplex Receptacle 20 A 125 V Light AlmondFor detailed PlugTailĀ® information, visit our PlugTailĀ® Headquarters.

Technical Information

Amperage
20 Amp
Applications
For Commercial Applications
Blade Dimensions
1-5/8 in L x 0.866 in W x 3.281 in H
Capacity
Duplex
Conductor Size
12 AWG
Dielectric Strength
2000 V
Duty Rating
Extra Heavy Duty
Grade
Hospital
Material
Nylon
Mounting Type
Wall
NEMA
5-20R
Number of Poles
2 Pole
Number of Wires
3
Size
1.625 L x .866 W x 3.281 H In
Type
Non-Reversing
Voltage
125 Volt
Wire Length
6 in
Wire Size
12 AWG
Wire Type
THHN, Stripped, Solid or Stranded

Manufacturer Information

Family Brand Name
Pass & Seymour
Sub Brand
PlugTail

General Product Info

Color
White
GTiN
00785007091168
Product Series
PlugTail
Product UPC
78500709116
UNSPSC
39121406

Dimensions

Depth
0.866 Inch
Height
3.281 Inch
Width
1.625 in

Certifications and Compliance

Certifications
CULUS,FEDSPEC
Country of Origin
Mexico
Certifications
  • Federal Spec Listed
  • Pre-stripped connector leads fasten to conductors, easier than standard pigtails.
  • Auto-ground clip assures positive ground.
  • For covering patents, see www.legrand.us/patents.
  • .036 inch thick, brass, triple-wipe power contacts for lasting retention.
  • Plated steel wrap strap design for maximum durability and corrosion resistance.
  • Large brass contacts snugly terminate on device blade terminals.
  • Ultrasonically welded polycarbonate connector housing secures terminations and conductors in a UL Listed, finger safe housing.
  • Built-in connector features large brass terminal blades to ensure consistent, reliable electrical connections.
  • No exposed terminals create a finger safe application before, during, and after installation.
  • For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.
  • Crimped and welded contacts.
