ABB RC481 INSNYL RECT RING TERM 12-

Manufacturer: Thomas & Betts | Catalog # RC481 | North Coast Part # 381189
$315.60/c (100 ea)
ea
Order in multiples of 500 (pack qty)
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet Brochure Product Catalog Page

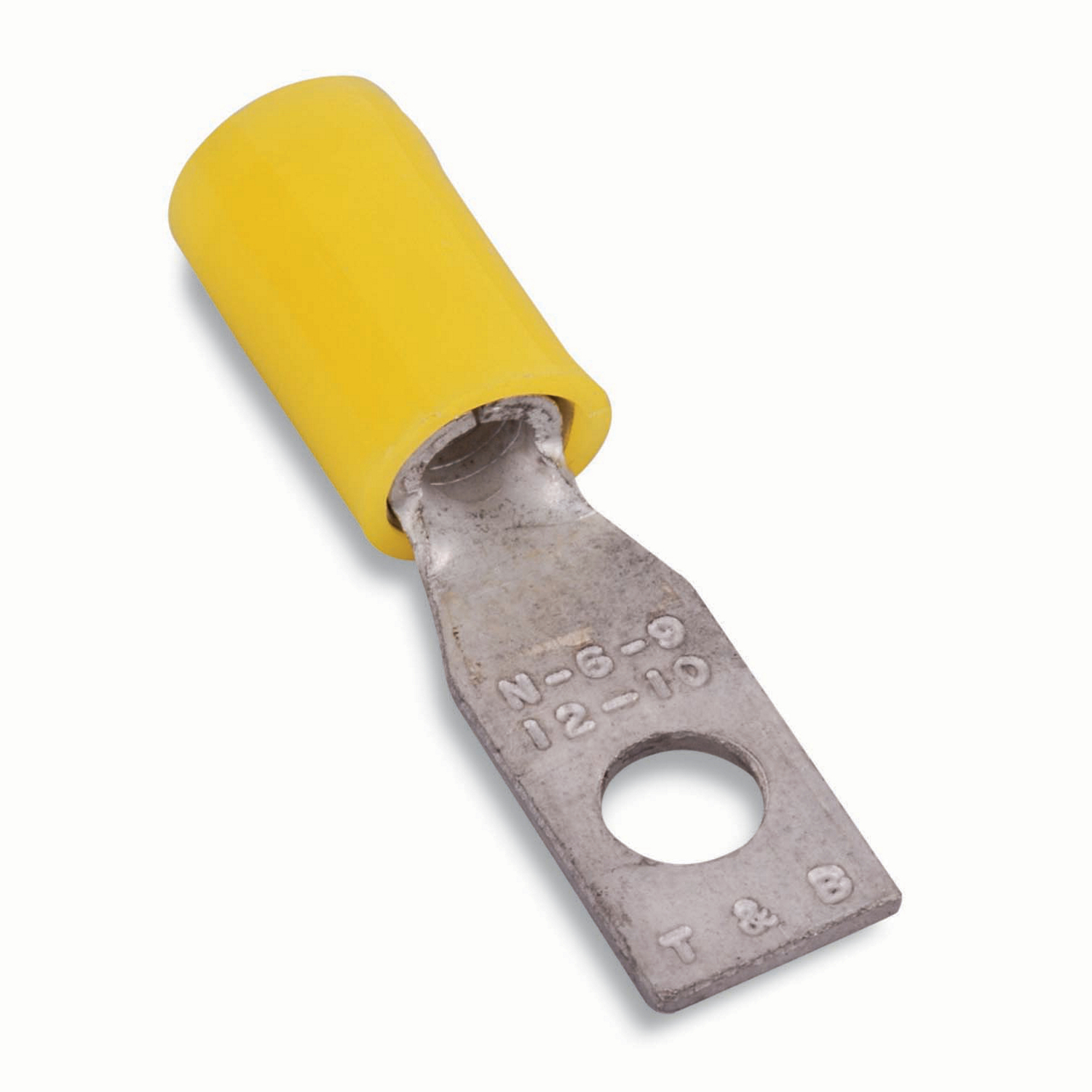

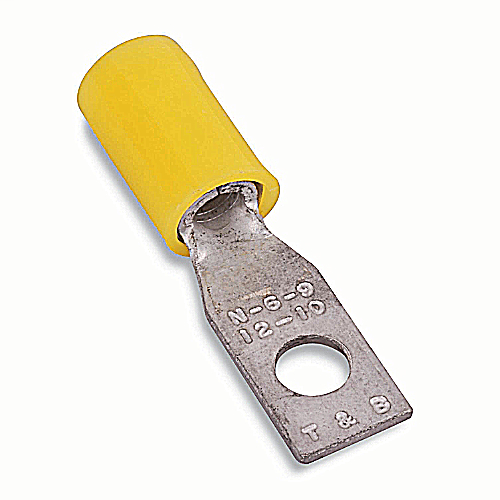

Nylon Insulated Rectangular Ring Terminal, Length 1.281 Inches, Width .302 Inches, Bolt Hole #6, Wire Range #12-#10 AWG, Color Yellow, Copper, Tin Plated

Technical Information

Conductor Size
12-10 AWG
Insulation Material
Nylon/Polyamide
Insulation Type
Insulated Nylon
Material
Copper
Standard
UL E9809
Stud Size
#6
Temperature Rating
105 degrees C
Type
Rectangular
Voltage
600 Volt
Wire Size
12-10 AWG

Manufacturer Information

Brand
ABB
Sub Brand
Sta-Kon®

General Product Info

12-Digit UPC
786210819921
Box Quantity
5000
Color
Yellow
Finish
Tin Plated
GTiN
05414363933373
Product UPC
78621081992
Used With
ERG4002 Crimp Tool

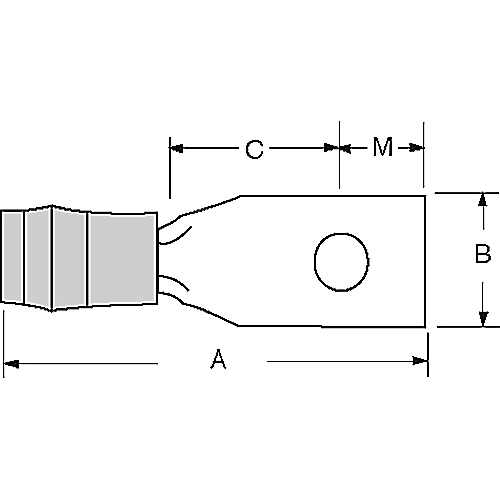

Dimensions

Length
1.28 Inch
Width
0.302 in
Features
  • Funneled Barrel Entry, Deep Internal Serrations, Brazed or overlapping seams.
  • Application Tools: ERG4002
