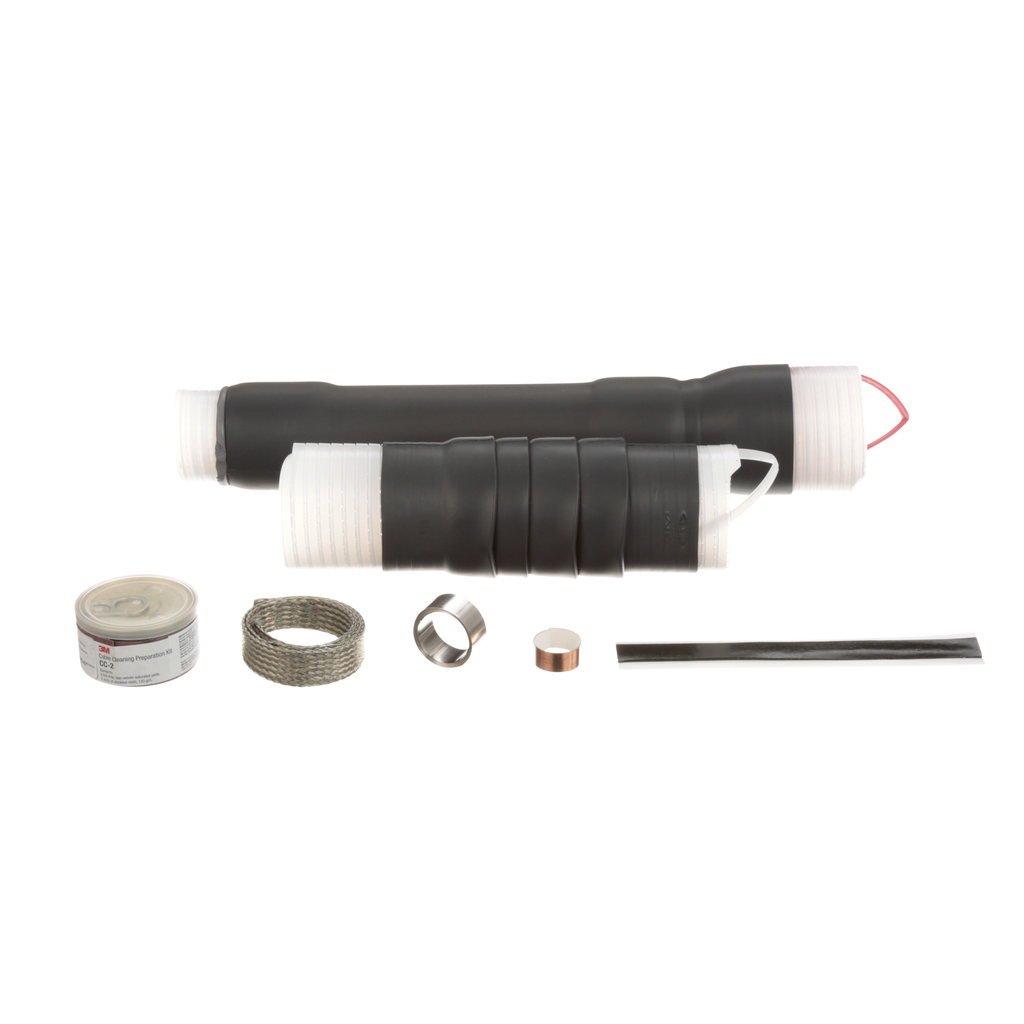

Product image for 3M 7695-S-INV-4 Cold Shrink QT-III Outdoor 4 Skirt Termination
Image thumbnail 0
Image thumbnail 1
Email

3M 7695-S-INV-4 Cold Shrink QT-III Outdoor 4 Skirt Termination

Manufacturer: 3M | Catalog # 7100004583 | North Coast Part # 381698
$2,216.76/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet Brochure Product Catalog Page MDM Safety Data Sheet
3M™ Cold Shrink QT III 7620 S & 7690 S Series Inverted Termination Kit includes 3 single conductor, skirted terminations. It ensures a pliable, tight seal for tape shield, wire shield and UniShield® power cables. The conjunction of high dielectric constant material and sealing compounds allows the termination to withstand voltages of 5 to 35kV.

Technical Information

Applications
Outdoor
Cable Type
Tape Shield; UniShield(R); Wire Shield
Conductor Size
1000 kcmil; 1250 kcmil; 1500 kcmil; 250 kcmil; 3/0 AWG; 300 kcmil; 350 kcmil; 4/0 AWG; 400 kcmil; 500 kcmil; 600 kcmil; 700 kcmil; 750 kcmil; 800 kcmil; 900 kcmil
Indoor Outdoor
Outdoor Skirted Inverted
Type
QT-III
Voltage
15 kV

Manufacturer Information

Brand
3M

General Product Info

12-Digit UPC
054007430186
GTiN
00054007430186
Product Series
7600-S-INV
Product UPC
05400743018

Certifications and Compliance

Country of Origin
USA
Features
  • Provides a void-free seal to tape shield, wire shield and UniShield® power cables
  • High dielectric-constant material regulates the distribution of electric field stress
  • Suitable for outdoor applications
  • Integrated design allows for easier installation in limited spaces, while sealing compounds provide constant radial pressure
