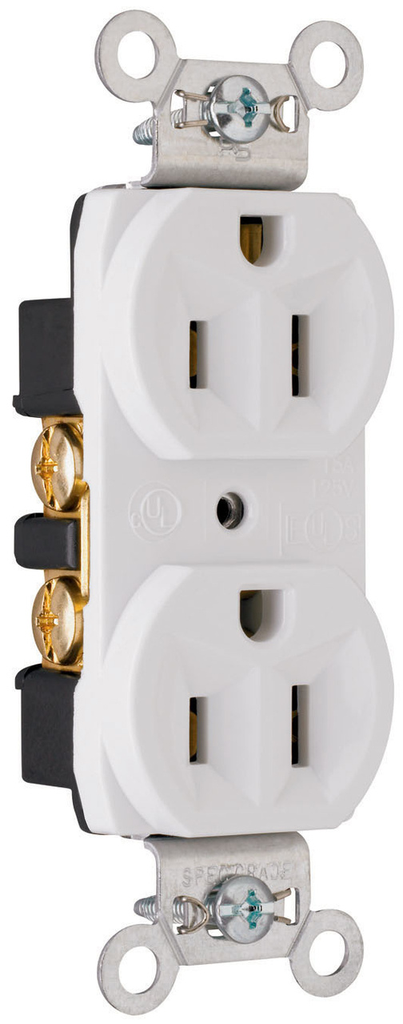

Product image for Pass & Seymour CRB5262-W Construction Spec Grade Duplex Receptacle Back & Side Wire 15Amp 125Volt, White
Email

Pass & Seymour CRB5262-W Construction Spec Grade Duplex Receptacle Back & Side Wire 15Amp 125Volt, White

Manufacturer: Legrand / Pass & Seymour | Catalog # CRB5262W | North Coast Part # 38229
$6.74/ea
Log in or register to view your price, purchase history, and more!
943 available

For Pick Up

at Auburn Opens Thursday 4:00am PT
943 available

For Delivery

Order by Thursday 4:00pm PT for delivery Friday
Not in local stock *
Check another branch
Specification Sheet
Construction Spec Grade Duplex Receptacle Back & Side Wire 15amp 125volt Light Almond

Technical Information

Amperage
15 Amp
Applications
Commercial,Residential
Capacity
Duplex
Conductor Size
4 AWG
Connection Type
Wire Ground
Grade
Residential/Commercial
Material
Thermoplastic
Mounting Type
Wall
NEMA
5-15R
Number of Poles
2 Pole
Number of Wires
3 Wire
Size
3.3 in
TC Connection
Wire Ground
Type
Construction
Voltage
125 Volt
Wire Size
4 AWG

Manufacturer Information

Brand
Pass & Seymour
Sub Brand
Pass & Seymour

General Product Info

12-Digit UPC
785007210163
Color
White
Finish
Matte
GTiN
00785007210163
Product UPC
78500721016
UNSPSC
39121406

Dimensions

Depth
0.78 Inch
Height
2.635 Inch
Width
1.322 in

Certifications and Compliance

Certifications
CULUS,FEDSPEC
Country of Origin
Mexico
Features
  • Corrosion-resistant, plated steel strap locked in to face and back body to resist pulling away from face/body assembly.
  • Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring.
  • Impact-resistant nylon face and thermoplastic back body.
  • 8 hole internal screw-pressure-plate back wire terminals accept #10 - #14 AWG solid or stranded copper or copper-clad conductors.
  • Terminal compartments isolated from each other for positive conductor containment.
  • Auto-ground clip assures positive ground.
  • For covering patents, see www.legrand.us/patents.
  • For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.
  • Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +60°C, minimum -40°C without impact
Certifications
  • Federal Spec Listed
  • cULus Listed
