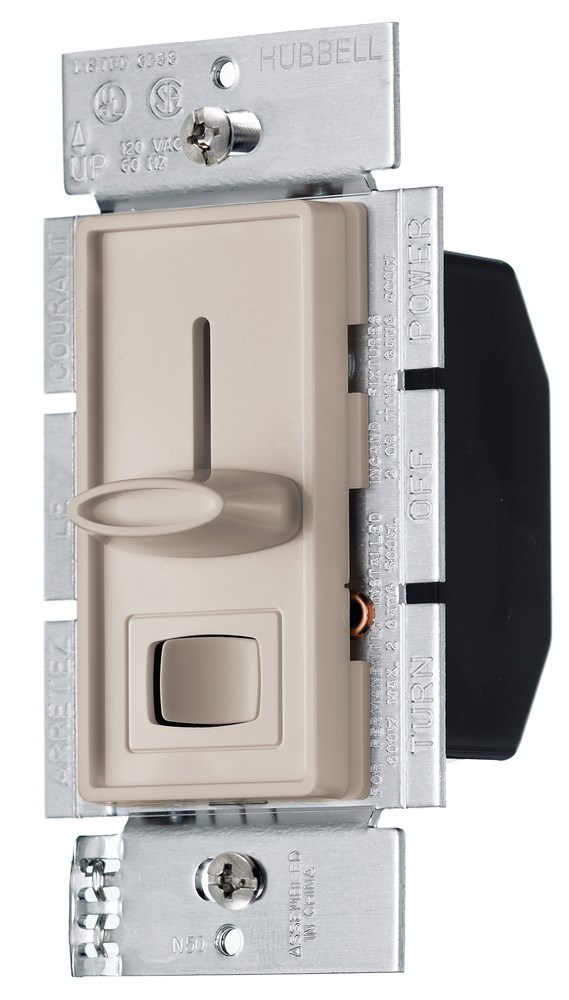

Product image for HWDK RSLV600PAL DIMMER, SP SLIDE, 6
Image thumbnail 0
Image thumbnail 1
Email

HWDK RSLV600PAL DIMMER, SP SLIDE, 6

Manufacturer: Hubbell / Kellems | Catalog # RSLV600PAL | North Coast Part # 386181
$106.38/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet Installation / Instruction Manual
TradeSelect, Switches and Lighting Control, Dimmers, Slider, Magnetic Low Voltage, Single Pole, 600 Watt 120V AC, Almond

Technical Information

Actuator
Preset Slider
Amperage
3.75 Amp
Applications
Residential Lighting Controls
Enclosure
None
Number of Poles
1 Pole
Operating Cycles
10k
Operating Temperature
Maximum, 75 Deg C; Minimum -40 Without Impact
Size
Standard Sized
TC Connection
Wire Leads
Type
Slider Dimmer With Preset and On/Off Switch
Voltage
120 VAC
Wattage
450 Watt

Manufacturer Information

Brand
Hubbell Incorporated
Sub Brand
TradeSelect

General Product Info

12-Digit UPC
883778116629
GTiN
00883778116629
Product UPC
88377811662

Dimensions

Height
2 Inch
Length
5-1/2 Inch
Width
4.000 in

Certifications and Compliance

Country of Origin
USA
Industry Standard(s)
  • CSA Certified
  • Listed to UL Standard 20
Performance
  • Electrical - Dielectric voltage - Withstands 1,500V AC minimum for 1 minute
  • Electrical - Endurance - 30,000 cycles minimum
  • Electrical - Max. working voltage - 120V
  • Electrical - Overload - 1.5 times rating
  • Environmental - Flammability - UL V0
  • Environmental - Operating temperatures - Maximum continuous 60°C
  • minimum -20°C (without impact)
  • Mechanical - Terminal accommodation - Back and side wire: #14 AWG min. - #12 AWG max. solid and stranded copper wire only
  • push wire: #14 AWG solid copper wire only
Features
  • Smooth, quiet rocker
  • Self-grounding feature is standard
  • Ultrasonically welded cover and base
