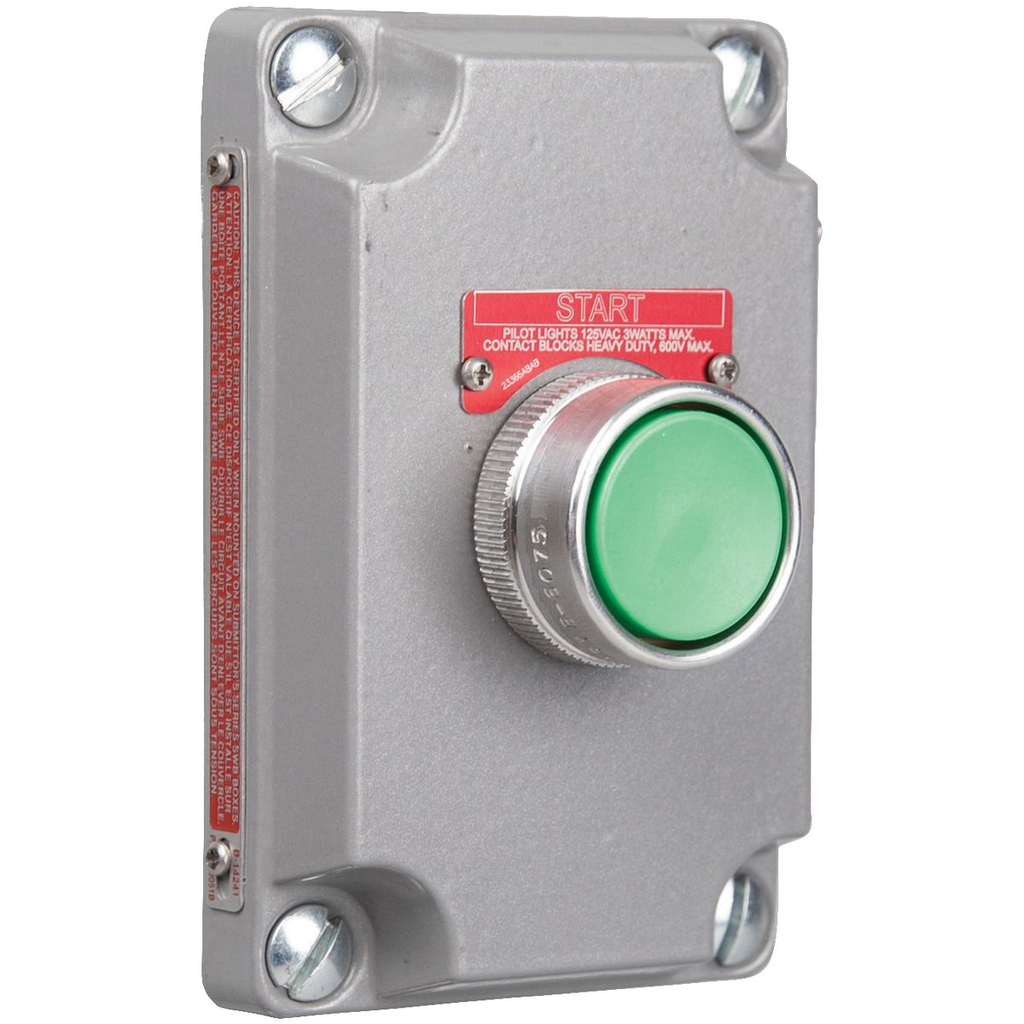

Product image for Killark XCS-0B1 XCS Series - Aluminum Momentary Contact Single Push Button Cover With Device - Green Button With "Start" Nameplate - 1NO Contact Rating
Image thumbnail 0
Image thumbnail 1
Email

Killark XCS-0B1 XCS Series - Aluminum Momentary Contact Single Push Button Cover With Device - Green Button With "Start" Nameplate - 1NO Contact Rating

Manufacturer: Hubbell / Killark | Catalog # XCS-0B1 | North Coast Part # 395772
$582.87/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet Installation / Instruction Manual
XCS Series - Aluminum Momentary Contact Single Push Button Cover With Device - Green Button With "Start" Nameplate - 1NO Contact Rating

Technical Information

Action
Momentary
Actuator
Momentary push button
Amperage
10 Amp
Applications
Hazardous locations due to the presence of flammable gases or vapors, combustible dusts, or easily ignitable fiber or flyings. Installations at petroleum refineries, chemical and petrochemical plants, and other processing or storage facilities where simil
Contact Configuration
1 NO
Contact Rating
60 A Inrush at 120 VAC, 30 A Inrush at 240 VAC, 15 A Inrush at 480 VAC, 12 A Inrush at 600 VAC, 6 A Breaking at 120 VAC, 3 A Breaking at 240 VAC, 1.5 A Breaking at 480 VAC, 1.2 A Breaking at 600 VAC, 10 A Carrying at 120 VAC, 10 A Carrying at 240 VAC, 10 A Carrying at 480 VAC
Frequency
50/60 Hz
Lamp Voltage
600 VAC
Material
Aluminum
Number of Poles
1-1 Pole
Size
4-5/8" H x 3" W x 1-1/16" D
Type
1-Pole, Aluminum Cover with Push Button
Voltage
600 VAC

Manufacturer Information

Brand
Killark Electric
Sub Brand
Killark

General Product Info

12-Digit UPC
783936890050
Color
Green
Environmental Conditions
Hazardous Locations
GTiN
00783936890050
Product UPC
78393689005

Dimensions

Height
4-1/4 Inch
Length
6-1/4 Inch
Width
6 in

Certifications and Compliance

Country of Origin
USA
Features
  • Copper free cast aluminum alloy.
  • Ground flange joint between bolted cover and box provide required flame path.
  • Push button, selector switches and pilot light operator bodies are copper-free aluminum.
  • Operating shaft in both push buttons and selector switches are stainless steel.
  • Killark XCS SERIES CONTROL STATION Control Stations provide control solutions in hazardous location areas to supply; START/STOP Motor Functions, LED Pilot Light Indications and more. Utilized in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas for indoor use are a Non-Factory Sealed unit requiring the need for a conduit seal fitting. UL Listed and CSA Certified.
