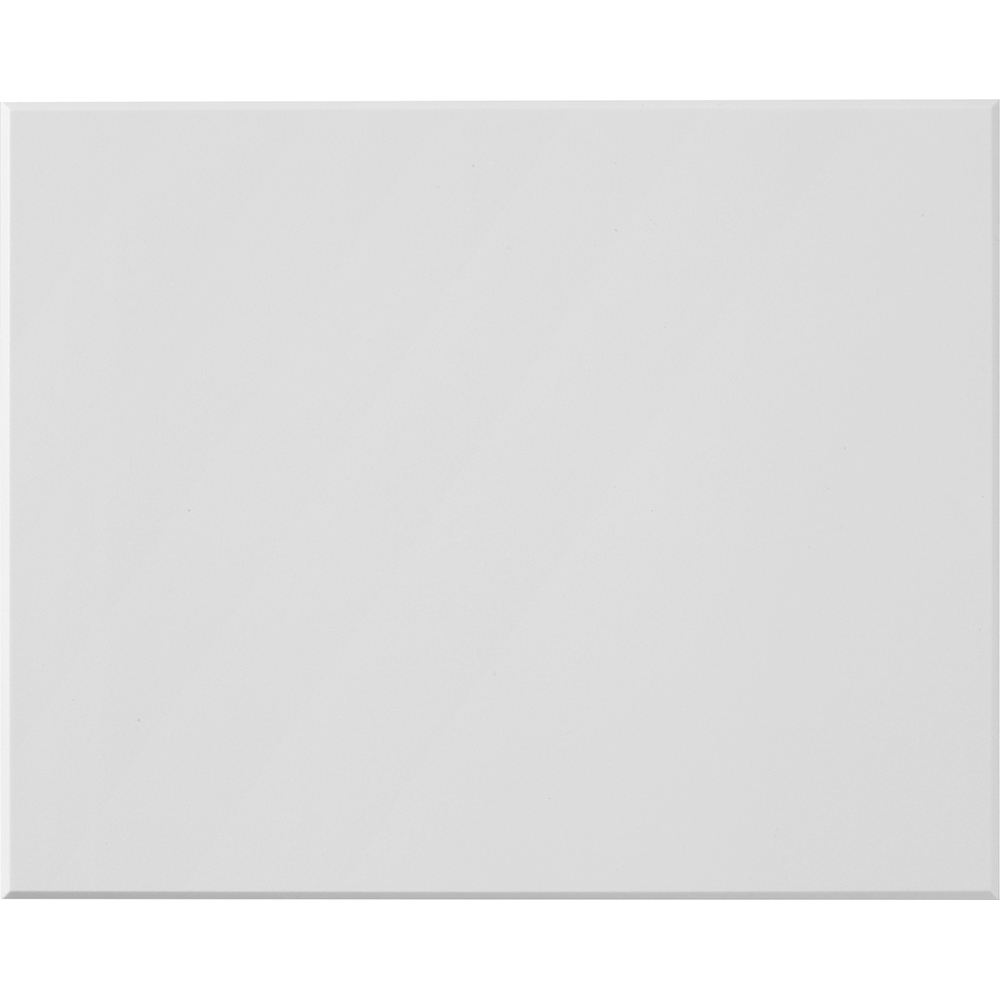

Product image for Lutron Electronics PHPM-PA-120-WH 120 Volt Phase Adaptive Power Module
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

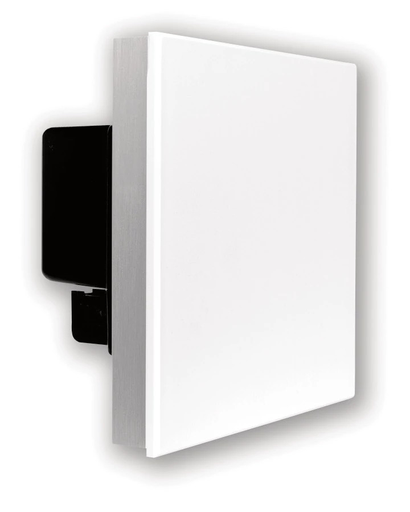

Lutron Electronics PHPM-PA-120-WH 120 Volt Phase Adaptive Power Module

Manufacturer: Lutron | Catalog # PHPM-PA-120-WH | North Coast Part # 398837
*Call For Price*
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Auburn Closes 3:00pm PT
0 available

For Delivery

Not in local stock *
Check another branch
*Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
Provides capability for a zone on a GRAFIK Eye control unit (or other product) to dim a fully loaded circuit of lighting. May be used to switch incandescent, electronic low-voltage, magnetic low-voltage, and neon/cold cathode lighting sources, as well as Tu-Wire fluorescent dimming ballasts. Automatically selects leading-edge or trailing-edge dimming for low-voltage transformers. Provides power and dimming for one zone. Up to 3 power modules may be wired on a single GRAFIK Eye zone. Not for use with non-dim loads. Works with 120 VAC versions of GRAFIK Eye QS and GRAFIK Eye 3000 Series control units. LP, LCP, and GP dimming panels, HomeWorks remote power panels, and Lutron 3-wire fluorescent dimmers.

Technical Information

Applications
For Indoor Use, Lighting Control
Cooling Concept
Air
Enclosure Material
Plastic
Frequency
50 Hz
Input Voltage
120 V
Insulation Material
Plastic
Material
Plastic
Mounting Type
Recess,Surface
Output Voltage
120 V
Standard
CIDET,CSA,NOM,RoHS,UL
Temperature Rating
0 degrees C to 40 degrees C
Type
Phase-Adaptive
Voltage
120 VAC Input/Output

Manufacturer Information

Brand
Lutron Electronics Company

General Product Info

12-Digit UPC
027557533881
Color
White
Environmental Conditions
0 To 40 C
GTiN
00027557533881
Product UPC
02755753388

Dimensions

Height
5.1 Inch
Length
2.4 Inch
Width
6.3 in

Certifications and Compliance

Country of Origin
USA
Features
  • Provides dimming control for 1 zone of a full 16A lighting load.
  • May be used to dim incandescent, halogen, electronic low-voltage, magnetic low-voltage, neon/cold cathode.
  • Phase-adaptive technology automatically selects leading-edge or trailing-edge dimming for low-voltage transformers.
  • Up to 3 power modules may be controlled by a single dimmer (C5-BMJ- will control only 1 module).

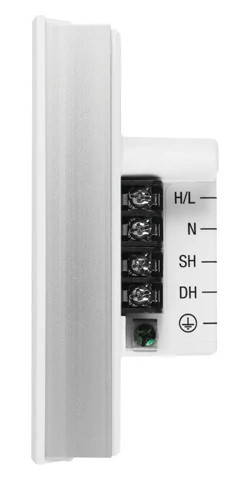

  • 2-wire input
  • Models available for control voltage of 120V only or 220 - 277V.
  • Models available for load voltage of 120V only or 120 - 277V.
  • Compatible with 220 / 240V, non-CE systems. Contact Lutron for specific system applications.
  • Not for use with non-dim loads.
  • Provides capability for a zone on a GRAFIK Eye control unit (or other product) to dim a fully loaded circuit of lighting
  • May be used to switch incandescent, electronic low-voltage, magnetic low-voltage, and neon/cold cathode lighting sources, as well as Tu-Wire fluorescent dimming ballasts
  • Automatically selects leading-edge or trailing-edge dimming for low-voltage transformers
  • Provides power and dimming for one zone
  • Up to 3 power modules may be wired on a single GRAFIK Eye zone
  • Not for use with non-dim loads
  • Works with 120 VAC versions of GRAFIK Eye QS and GRAFIK Eye 3000 Series control units
  • LP, LCP, and GP dimming panels, HomeWorks remote power panels, and Lutron 3-wire fluorescent dimmers.
Standards and Certifications
  • UL
  • CSA
  • NOM
  • RoHS
  • CIDET
