3M 10011 10011 COPPER COMPRESSION C
$15.59/ea
Usually ships within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # 10011
North Coast Part # 212086

Overview

The 3M Scotchlok Copper Standard Barrel Connector 10011 is used on copper conductors only. It is constructed of one-piece, seamless, high-conductivity copper.

Specifications

  • Outside Diameter: 0.88 Inch
  • Agency Approvals: UL Listed
  • Outside Diameter (metric): 22.2 mm
  • Inside Diameter: 0.7 Inch
  • Barrel Style: Standard Barrel
  • Inside Diameter (metric): 17.8 mm

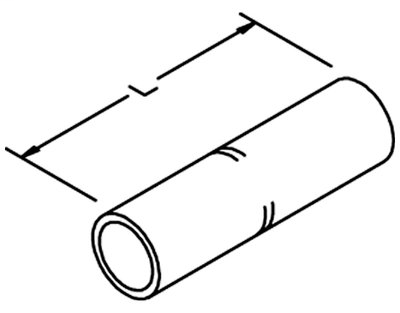

  • Length: 2.38 Inch
  • Color Code: Red
  • For Use With: Copper Conductor Only
  • RoHS EU Comments: RoHS 2011/65/EU compliant without exemption
  • RoHS 2011/65/EU Compliant: Yes
  • Trademark: Scotchlok
  • Connector Base Metal: Copper
  • Stranded Conductor Sizes: 350 kcmil
  • Maximum Voltage: 35 Kilovolt
  • Length (Metric): 60.4 mm

Documents

Overview

UPC 05400712873
GTiN 00054007128731
Length 2.38 in
Width 0.88 in
Type Standard Barrel
Applications Copper Conductor Only
Family Brand Name 3M
Sub Brand Scotchlok
Color Red
Barrel Type Standard Barrel
Conductor Size 350 MCM
Inside Diameter 0.7 in
