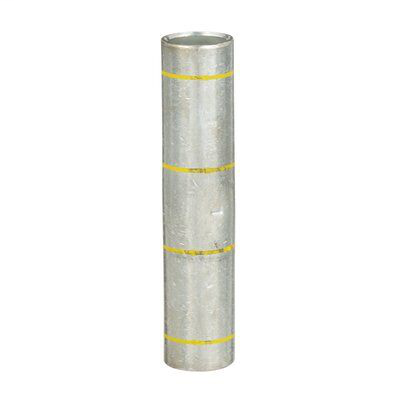

3M 11009 Copper Long Barrel Connector
$15.59/ea
Usually ships within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # 11009
North Coast Part # 1346201

Features

  • Standard barrel ensures reliable performance
  • Built-in solid center oil stop
  • The 3M™ Scotchlok™ Connectors 20000 Series can be used with either copper or aluminum conductors. These aluminum connectors feature color coded end caps for identification. Contact aid provided in connector is compatible with poly/EPR insulations. Each connector is electro tin plated to resist electrolytic corrosion, and have a solid center stop. (UL 486B Listed)
  • Made of aluminum for good conductivity and has corrosion-resistant tin plating
  • Rated up to 35 kV
  • Meets ANSI C119.4 and RoHS 2011/65/EU Compliant
  • Barrel has color stripes that help to indicate the wire range

Specifications

  • 3M ID: 80610033146
  • Agency Approvals: UL Listed
  • Barrel Style: Long Barrel
  • Brand: Scotchlok™
  • Case Quantity: 3
  • Color Code: Yellow
  • Color Family: Yellow
  • Connector Base Metal: Copper
  • Connector Type: Compression Connectors
  • Electrical Connector Type: Compression Connectors
  • For Use With: Copper Conductor Only
  • Indoor/Outdoor: Both
  • Inside Diameter (Imperial): 0.6 in
  • Inside Diameter (Metric): 15.1 mm
  • Manufacturing Origin: USA
  • Maximum Conductor Size: 250 kcmil
  • Maximum Operating Voltage: 35 Kilovolt
  • Maximum Stranded Conductor Size: 250 kcmil
  • Minimum Conductor Size: 250 kcmil
  • Outer Diameter (Imperial): 0.75 in
  • Outside Diameter (Metric): 19.1 mm
  • Overall Length (Imperial): 3.38 in
  • Overall Length (Metric): 85.8 mm
  • Product Color: Yellow

Overview

UPC 05400712840
GTiN 00054007128403
Length 3.38 in
Width 0.75 in
Color Yellow
Type Long Barrel
Applications Copper Conductor Only
Family Brand Name Scotchlok
Sub Brand Scotchlok
Barrel Type Long Barrel
Conductor Size 250 MCM
Inside Diameter 0.6 in
Overall Length 3.38 in
