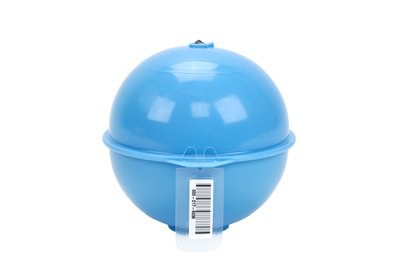

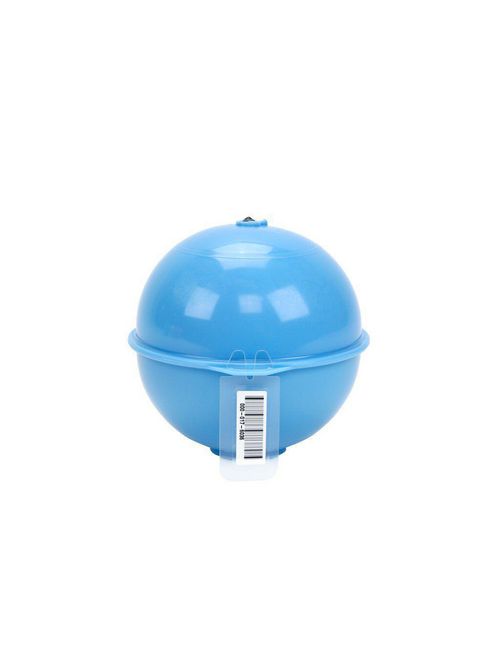

3M 1423-XR/iD ID EXTENDED RANGE BAL
$35.36/ea
Usually ships within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # 1423-XR/ID
North Coast Part # 1832032

Features

  • Self-leveling design for precise and horizontal positioning
  • 3M™ EMS Extended Range Ball Marker is specially designed for locating flush mounted facilities that are covered by backfill. It is affixed to the underside of non metallic lids or covers over flush mounted facilities. This self align marker offers positive identification of facilities.
  • Offers easy marking of buried power lines
  • Passive antenna encased in water-resistant polyethylene shell
  • 3M™ EMS Extended Range Ball Marker provides an effective way of marking underground facility lines. It withstands a temperature range of 4 to 122 °F ( 20 to 50 °C). This passive underground marker with a water resistant polyethylene shell does not react with any chemicals or minerals. This ball marker effectively operates without the need for any external power source.
  • Withstands a temperature range of -4 to 122 °F (-20 to 50 °C)
  • Works without any external power source

Suggested Applications

  • Ideal for marking buried water facilities at a depth of 5 feet (1.5 meters)

Specifications

  • 3M ID: 80611143225
  • Application/Industry: Water
  • Burial Depth (Imperial): 5 ft
  • Burial Depth (Metric): 1.53 m
  • Color Family: Blue
  • Marker Depth: 5 feet (1.5m)
  • Marker Dimension (inch): 4 inch Diameter
  • Marker Finding Capability: Yes
  • Marker Function: Programmable
  • Marker Type: Ball
  • Minimum Order Quantity: 30
  • Overall Diameter (Imperial): 4 in
  • Overall Diameter (Metric): 10.16 cm || 10.16 cm
  • Overall Height (Metric): 10.4 cm || 10.4 cm
  • Product Color: Blue
  • Range: 0 to 5 Linear Foot
  • Solution for: Access Network: FTTH/FTTB/CATV || Access Network: xDSL || Long-haul/Metro Loop Network: Outdoor || Wireless Network: Backhaul
  • Utility Type: Potable Water

Overview

UPC 05111513791
GTiN 00051115137914
Color Blue
Material HDPE
Applications buried electronic ID marker (programmable)
Family Brand Name 3M
Diameter 4 in
Height 10.4 cm
