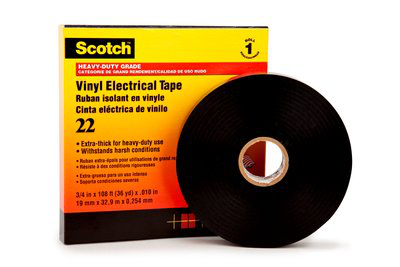

3M 22-1/2x36YD 22 1/2" X 36YD BOXED
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$14.46/ea
Usually ships within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # 22-1/2X36YD
North Coast Part # 154311

Features

  • The combination of the pressure-sensitive, rubber-resin adhesive and the PVC backing offers electrical and mechanical protection
  • Provides high resistance to UV rays, abrasion, moisture, alkalis, acids, corrosion and varying weather conditions
  • Scotch® Vinyl Electrical Tape 22 is a 10 mil thick, premium grade, heavy duty, vinyl electrical tape that's suitable for insulation applications requiring higher mechanical strength and abrasion resistance. The flame retardant tape is designed for low and high voltage bus applications and withstands a temperature range of 15 to 176 °F ( 10 to 80 °C).
  • Scotch® Tape 22 provides electrical and mechanical protection with the combination of an aggressive rubber resin adhesive and an elastic PVC backing. This tape is flame retardant and is highly resistant to UV rays, moisture, alkalis, acids, corrosion and varying weather conditions. It has increased mechanical strength and is suitable for both indoor and outdoor applications. The tape is compatible with solid dielectric cable insulations, synthetic cable insulations, jackets and splicing compounds. UL Listed, ASTM Approved, VDE, CSA Certified and RoHS 2011/65/EU Compliant.
  • Made of durable PVC
  • Withstands a temperature range of 15 to 176 °F (-10 to 80 °C)
  • UL Listed, ASTM Approved, VDE, CSA Certified and RoHS 2011/65/EU Compliant

Legal Disclaimer

  • The designation that a product is Manufactured in the USA means the product undergoes substantial transformation in one of our U.S. Manufacturing plants. Some products contain imported components.
  • Note: 3M products offered on a government contract that require country of origin representation must be certified by 3M Trade Compliance. Contact customer service at 800-245-3573 to request a certificate.

Specifications

  • 3M ID: 80012017036
  • Manufacturing Origin: USA
  • Adhesion Strength: 20 oz/in
  • Adhesion to Steel: 21 oz. /in. (2.2 N/10 mm)
  • Adhesive Material: Based adhesive rubber pressure sensitive
  • Adhesive Type: Rubber
  • Application: Electrical Maintenance
  • Backing Material: Polyvinyl Chloride || Vinyl
  • Brand: Scotch®
  • Breaking Strength (Imperial): 20 lb/in
  • Chemical Resistant: Yes
  • Color Family: Black
  • Elongation at Break: 200 Percent
  • Flame Retardant: Yes
  • Insulation Resistance: > 10^6 megohms
  • Maximum Operating Temperature (Celsius): 80 Degree Celsius
  • Maximum Operating Temperature (Fahrenheit): 176 Degree Fahrenheit
  • National Stock Number: 5970000872979
  • Overall Length (Imperial): 36 yd
  • Overall Length (Metric): 32.9 m
  • Overall Width (Imperial): 0.5 in
  • Overall Width (Metric): 12.7 mm
  • Product Color: Black
  • Product Form: Roll
  • Self-extinguishing: No
  • Shelf Life in Months (From Date of Manufacture): 60
  • Specifications Met: CSA Certified || UL Listed
  • Suitable for High Voltage: No
  • Tape Color: Black
  • Tape Grade: Premium
  • Tape Length (Metric): 32.9 m
  • Tape Width (Metric): 12.7 mm
  • UV Resistant: Yes
  • Voltage Rating: 600 V
  • Vulcanizing: No

Overview

UPC 05400710026
GTiN 00054007100263
Length 36 yd
Size 1/2x36YD
Color Black
Type Premium Grade, Heavy Duty, Electrical, Insulated
Thickness 10 mil
Material PVC,Polyvinyl Chloride
Backing Material PVC
Family Brand Name 3M
Sub Brand Scotch
Width 1/2 in
Voltage 600 Volt
Product Type Vinyl Electrical Tapes
Performance Level Professional Grade
Max Operating Temperature 176 degrees F
Overall Length 36 yd
