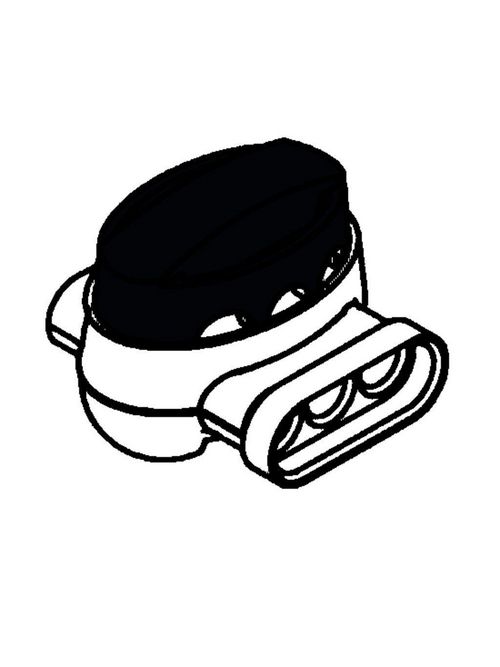

3M 316-IR BAG 30/Bag Low Voltage Irrigation Connector

• rows: 1
• display_name: 1681aa1c38854cdbaf4879b473d2d7c4 360 Image
• base_path_small: xlsx_3M_synd/2021q1/360_images/small/21a4ed1b2ffda06a41cf5040f27cd07f66b70c2c-r{row}-c{col}-small.png
• columns: 20
• base_path_small: xlsx_3M_synd/2021q1/360_images/small/21a4ed1b2ffda06a41cf5040f27cd07f66b70c2c-r{row}-c{col}-small.png
• base_path_large: xlsx_3M_synd/2021q1/360_images/large/21a4ed1b2ffda06a41cf5040f27cd07f66b70c2c-r{row}-c{col}-large.png
• base_path_native: xlsx_3M_synd/2021q1/360_images/native/21a4ed1b2ffda06a41cf5040f27cd07f66b70c2c-r{row}-c{col}-native.png
• rows: 1
• base_path_small: xlsx_3M_synd/2021q1/360_images/small/21a4ed1b2ffda06a41cf5040f27cd07f66b70c2c-r{row}-c{col}-small.png
• columns: 20
• base_path_small: xlsx_3M_synd/2021q1/360_images/small/21a4ed1b2ffda06a41cf5040f27cd07f66b70c2c-r{row}-c{col}-small.png
• base_path_native: xlsx_3M_synd/2021q1/360_images/native/21a4ed1b2ffda06a41cf5040f27cd07f66b70c2c-r{row}-c{col}-native.png
• base_path_medium: xlsx_3M_synd/2021q1/360_images/medium/21a4ed1b2ffda06a41cf5040f27cd07f66b70c2c-r{row}-c{col}-medium.png
• columns: 20
• base_path_medium: xlsx_3M_synd/2021q1/360_images/medium/21a4ed1b2ffda06a41cf5040f27cd07f66b70c2c-r{row}-c{col}-medium.png
• display_name: 1681aa1c38854cdbaf4879b473d2d7c4 360 Image
• columns: 20
• base_path_native: xlsx_3M_synd/2021q1/360_images/native/21a4ed1b2ffda06a41cf5040f27cd07f66b70c2c-r{row}-c{col}-native.png
• display_name: 1681aa1c38854cdbaf4879b473d2d7c4 360 Image
• base_path_medium: xlsx_3M_synd/2021q1/360_images/medium/21a4ed1b2ffda06a41cf5040f27cd07f66b70c2c-r{row}-c{col}-medium.png
• columns: 20
• base_path_medium: xlsx_3M_synd/2021q1/360_images/medium/21a4ed1b2ffda06a41cf5040f27cd07f66b70c2c-r{row}-c{col}-medium.png
• base_path_small: xlsx_3M_synd/2021q1/360_images/small/21a4ed1b2ffda06a41cf5040f27cd07f66b70c2c-r{row}-c{col}-small.png
• base_path_large: xlsx_3M_synd/2021q1/360_images/large/21a4ed1b2ffda06a41cf5040f27cd07f66b70c2c-r{row}-c{col}-large.png
• base_path_small: xlsx_3M_synd/2021q1/360_images/small/21a4ed1b2ffda06a41cf5040f27cd07f66b70c2c-r{row}-c{col}-small.png
• base_path_medium: xlsx_3M_synd/2021q1/360_images/medium/21a4ed1b2ffda06a41cf5040f27cd07f66b70c2c-r{row}-c{col}-medium.png
• base_path_large: xlsx_3M_synd/2021q1/360_images/large/21a4ed1b2ffda06a41cf5040f27cd07f66b70c2c-r{row}-c{col}-large.png
• rows: 1
• display_name: 1681aa1c38854cdbaf4879b473d2d7c4 360 Image
• base_path_small: xlsx_3M_synd/2021q1/360_images/small/21a4ed1b2ffda06a41cf5040f27cd07f66b70c2c-r{row}-c{col}-small.png
• display_name: 1681aa1c38854cdbaf4879b473d2d7c4 360 Image
• base_path_thumb: xlsx_3M_synd/2021q1/360_images/thumbnails/21a4ed1b2ffda06a41cf5040f27cd07f66b70c2c-r{row}-c{col}-thumb.png
• rows: 1
• base_path_medium: xlsx_3M_synd/2021q1/360_images/medium/21a4ed1b2ffda06a41cf5040f27cd07f66b70c2c-r{row}-c{col}-medium.png
• base_path_native: xlsx_3M_synd/2021q1/360_images/native/21a4ed1b2ffda06a41cf5040f27cd07f66b70c2c-r{row}-c{col}-native.png
• rows: 1
• base_path_native: xlsx_3M_synd/2021q1/360_images/native/21a4ed1b2ffda06a41cf5040f27cd07f66b70c2c-r{row}-c{col}-native.png
• base_path_large: xlsx_3M_synd/2021q1/360_images/large/21a4ed1b2ffda06a41cf5040f27cd07f66b70c2c-r{row}-c{col}-large.png
• base_path_medium: xlsx_3M_synd/2021q1/360_images/medium/21a4ed1b2ffda06a41cf5040f27cd07f66b70c2c-r{row}-c{col}-medium.png
• rows: 1
• base_path_medium: xlsx_3M_synd/2021q1/360_images/medium/21a4ed1b2ffda06a41cf5040f27cd07f66b70c2c-r{row}-c{col}-medium.png
• base_path_small: xlsx_3M_synd/2021q1/360_images/small/21a4ed1b2ffda06a41cf5040f27cd07f66b70c2c-r{row}-c{col}-small.png
• columns: 20
• rows: 1
• rows: 1
• base_path_medium: xlsx_3M_synd/2021q1/360_images/medium/21a4ed1b2ffda06a41cf5040f27cd07f66b70c2c-r{row}-c{col}-medium.png
• columns: 20
• base_path_native: xlsx_3M_synd/2021q1/360_images/native/21a4ed1b2ffda06a41cf5040f27cd07f66b70c2c-r{row}-c{col}-native.png
• rows: 1
• base_path_large: xlsx_3M_synd/2021q1/360_images/large/21a4ed1b2ffda06a41cf5040f27cd07f66b70c2c-r{row}-c{col}-large.png
• base_path_thumb: xlsx_3M_synd/2021q1/360_images/thumbnails/21a4ed1b2ffda06a41cf5040f27cd07f66b70c2c-r{row}-c{col}-thumb.png
• base_path_medium: xlsx_3M_synd/2021q1/360_images/medium/21a4ed1b2ffda06a41cf5040f27cd07f66b70c2c-r{row}-c{col}-medium.png
• rows: 1
• rows: 1
• base_path_small: xlsx_3M_synd/2021q1/360_images/small/21a4ed1b2ffda06a41cf5040f27cd07f66b70c2c-r{row}-c{col}-small.png
• base_path_native: xlsx_3M_synd/2021q1/360_images/native/21a4ed1b2ffda06a41cf5040f27cd07f66b70c2c-r{row}-c{col}-native.png
• base_path_medium: xlsx_3M_synd/2021q1/360_images/medium/21a4ed1b2ffda06a41cf5040f27cd07f66b70c2c-r{row}-c{col}-medium.png
• base_path_large: xlsx_3M_synd/2021q1/360_images/large/21a4ed1b2ffda06a41cf5040f27cd07f66b70c2c-r{row}-c{col}-large.png
• display_name: 1681aa1c38854cdbaf4879b473d2d7c4 360 Image
• base_path_native: xlsx_3M_synd/2021q1/360_images/native/21a4ed1b2ffda06a41cf5040f27cd07f66b70c2c-r{row}-c{col}-native.png
• base_path_large: xlsx_3M_synd/2021q1/360_images/large/21a4ed1b2ffda06a41cf5040f27cd07f66b70c2c-r{row}-c{col}-large.png
• base_path_native: xlsx_3M_synd/2021q1/360_images/native/21a4ed1b2ffda06a41cf5040f27cd07f66b70c2c-r{row}-c{col}-native.png
• base_path_small: xlsx_3M_synd/2021q1/360_images/small/21a4ed1b2ffda06a41cf5040f27cd07f66b70c2c-r{row}-c{col}-small.png
• columns: 20
• base_path_medium: xlsx_3M_synd/2021q1/360_images/medium/21a4ed1b2ffda06a41cf5040f27cd07f66b70c2c-r{row}-c{col}-medium.png
• display_name: 1681aa1c38854cdbaf4879b473d2d7c4 360 Image
• columns: 20
• columns: 20
• base_path_native: xlsx_3M_synd/2021q1/360_images/native/21a4ed1b2ffda06a41cf5040f27cd07f66b70c2c-r{row}-c{col}-native.png
• columns: 20
• display_name: 1681aa1c38854cdbaf4879b473d2d7c4 360 Image
• rows: 1
• display_name: 1681aa1c38854cdbaf4879b473d2d7c4 360 Image
• base_path_small: xlsx_3M_synd/2021q1/360_images/small/21a4ed1b2ffda06a41cf5040f27cd07f66b70c2c-r{row}-c{col}-small.png
• base_path_large: xlsx_3M_synd/2021q1/360_images/large/21a4ed1b2ffda06a41cf5040f27cd07f66b70c2c-r{row}-c{col}-large.png
• base_path_thumb: xlsx_3M_synd/2021q1/360_images/thumbnails/21a4ed1b2ffda06a41cf5040f27cd07f66b70c2c-r{row}-c{col}-thumb.png
• rows: 1
• base_path_small: xlsx_3M_synd/2021q1/360_images/small/21a4ed1b2ffda06a41cf5040f27cd07f66b70c2c-r{row}-c{col}-small.png
• base_path_large: xlsx_3M_synd/2021q1/360_images/large/21a4ed1b2ffda06a41cf5040f27cd07f66b70c2c-r{row}-c{col}-large.png
• columns: 20
• base_path_large: xlsx_3M_synd/2021q1/360_images/large/21a4ed1b2ffda06a41cf5040f27cd07f66b70c2c-r{row}-c{col}-large.png
• base_path_native: xlsx_3M_synd/2021q1/360_images/native/21a4ed1b2ffda06a41cf5040f27cd07f66b70c2c-r{row}-c{col}-native.png
• base_path_native: xlsx_3M_synd/2021q1/360_images/native/21a4ed1b2ffda06a41cf5040f27cd07f66b70c2c-r{row}-c{col}-native.png
• base_path_small: xlsx_3M_synd/2021q1/360_images/small/21a4ed1b2ffda06a41cf5040f27cd07f66b70c2c-r{row}-c{col}-small.png
• columns: 20
• base_path_thumb: xlsx_3M_synd/2021q1/360_images/thumbnails/21a4ed1b2ffda06a41cf5040f27cd07f66b70c2c-r{row}-c{col}-thumb.png
• base_path_small: xlsx_3M_synd/2021q1/360_images/small/21a4ed1b2ffda06a41cf5040f27cd07f66b70c2c-r{row}-c{col}-small.png
• base_path_medium: xlsx_3M_synd/2021q1/360_images/medium/21a4ed1b2ffda06a41cf5040f27cd07f66b70c2c-r{row}-c{col}-medium.png
• display_name: 1681aa1c38854cdbaf4879b473d2d7c4 360 Image
• base_path_native: xlsx_3M_synd/2021q1/360_images/native/21a4ed1b2ffda06a41cf5040f27cd07f66b70c2c-r{row}-c{col}-native.png
• base_path_medium: xlsx_3M_synd/2021q1/360_images/medium/21a4ed1b2ffda06a41cf5040f27cd07f66b70c2c-r{row}-c{col}-medium.png
• base_path_thumb: xlsx_3M_synd/2021q1/360_images/thumbnails/21a4ed1b2ffda06a41cf5040f27cd07f66b70c2c-r{row}-c{col}-thumb.png
• columns: 20
• base_path_large: xlsx_3M_synd/2021q1/360_images/large/21a4ed1b2ffda06a41cf5040f27cd07f66b70c2c-r{row}-c{col}-large.png
• rows: 1
• display_name: 1681aa1c38854cdbaf4879b473d2d7c4 360 Image
• display_name: 1681aa1c38854cdbaf4879b473d2d7c4 360 Image
• display_name: 1681aa1c38854cdbaf4879b473d2d7c4 360 Image
• rows: 1
• base_path_medium: xlsx_3M_synd/2021q1/360_images/medium/21a4ed1b2ffda06a41cf5040f27cd07f66b70c2c-r{row}-c{col}-medium.png
• base_path_thumb: xlsx_3M_synd/2021q1/360_images/thumbnails/21a4ed1b2ffda06a41cf5040f27cd07f66b70c2c-r{row}-c{col}-thumb.png
• rows: 1
• base_path_thumb: xlsx_3M_synd/2021q1/360_images/thumbnails/21a4ed1b2ffda06a41cf5040f27cd07f66b70c2c-r{row}-c{col}-thumb.png
• base_path_large: xlsx_3M_synd/2021q1/360_images/large/21a4ed1b2ffda06a41cf5040f27cd07f66b70c2c-r{row}-c{col}-large.png
• base_path_thumb: xlsx_3M_synd/2021q1/360_images/thumbnails/21a4ed1b2ffda06a41cf5040f27cd07f66b70c2c-r{row}-c{col}-thumb.png
• base_path_native: xlsx_3M_synd/2021q1/360_images/native/21a4ed1b2ffda06a41cf5040f27cd07f66b70c2c-r{row}-c{col}-native.png
• columns: 20
• base_path_native: xlsx_3M_synd/2021q1/360_images/native/21a4ed1b2ffda06a41cf5040f27cd07f66b70c2c-r{row}-c{col}-native.png
• base_path_thumb: xlsx_3M_synd/2021q1/360_images/thumbnails/21a4ed1b2ffda06a41cf5040f27cd07f66b70c2c-r{row}-c{col}-thumb.png
• base_path_large: xlsx_3M_synd/2021q1/360_images/large/21a4ed1b2ffda06a41cf5040f27cd07f66b70c2c-r{row}-c{col}-large.png
• base_path_large: xlsx_3M_synd/2021q1/360_images/large/21a4ed1b2ffda06a41cf5040f27cd07f66b70c2c-r{row}-c{col}-large.png
• base_path_thumb: xlsx_3M_synd/2021q1/360_images/thumbnails/21a4ed1b2ffda06a41cf5040f27cd07f66b70c2c-r{row}-c{col}-thumb.png
• base_path_large: xlsx_3M_synd/2021q1/360_images/large/21a4ed1b2ffda06a41cf5040f27cd07f66b70c2c-r{row}-c{col}-large.png
• display_name: 1681aa1c38854cdbaf4879b473d2d7c4 360 Image
• base_path_small: xlsx_3M_synd/2021q1/360_images/small/21a4ed1b2ffda06a41cf5040f27cd07f66b70c2c-r{row}-c{col}-small.png
• columns: 20
• base_path_small: xlsx_3M_synd/2021q1/360_images/small/21a4ed1b2ffda06a41cf5040f27cd07f66b70c2c-r{row}-c{col}-small.png
• base_path_thumb: xlsx_3M_synd/2021q1/360_images/thumbnails/21a4ed1b2ffda06a41cf5040f27cd07f66b70c2c-r{row}-c{col}-thumb.png
• base_path_thumb: xlsx_3M_synd/2021q1/360_images/thumbnails/21a4ed1b2ffda06a41cf5040f27cd07f66b70c2c-r{row}-c{col}-thumb.png
• columns: 20
• base_path_large: xlsx_3M_synd/2021q1/360_images/large/21a4ed1b2ffda06a41cf5040f27cd07f66b70c2c-r{row}-c{col}-large.png
• base_path_medium: xlsx_3M_synd/2021q1/360_images/medium/21a4ed1b2ffda06a41cf5040f27cd07f66b70c2c-r{row}-c{col}-medium.png
• base_path_thumb: xlsx_3M_synd/2021q1/360_images/thumbnails/21a4ed1b2ffda06a41cf5040f27cd07f66b70c2c-r{row}-c{col}-thumb.png
• display_name: 1681aa1c38854cdbaf4879b473d2d7c4 360 Image
• display_name: 1681aa1c38854cdbaf4879b473d2d7c4 360 Image
• base_path_small: xlsx_3M_synd/2021q1/360_images/small/21a4ed1b2ffda06a41cf5040f27cd07f66b70c2c-r{row}-c{col}-small.png
• base_path_thumb: xlsx_3M_synd/2021q1/360_images/thumbnails/21a4ed1b2ffda06a41cf5040f27cd07f66b70c2c-r{row}-c{col}-thumb.png
• base_path_native: xlsx_3M_synd/2021q1/360_images/native/21a4ed1b2ffda06a41cf5040f27cd07f66b70c2c-r{row}-c{col}-native.png
• base_path_medium: xlsx_3M_synd/2021q1/360_images/medium/21a4ed1b2ffda06a41cf5040f27cd07f66b70c2c-r{row}-c{col}-medium.png
• base_path_small: xlsx_3M_synd/2021q1/360_images/small/21a4ed1b2ffda06a41cf5040f27cd07f66b70c2c-r{row}-c{col}-small.png
• base_path_small: xlsx_3M_synd/2021q1/360_images/small/21a4ed1b2ffda06a41cf5040f27cd07f66b70c2c-r{row}-c{col}-small.png
• columns: 20
• base_path_medium: xlsx_3M_synd/2021q1/360_images/medium/21a4ed1b2ffda06a41cf5040f27cd07f66b70c2c-r{row}-c{col}-medium.png
• base_path_native: xlsx_3M_synd/2021q1/360_images/native/21a4ed1b2ffda06a41cf5040f27cd07f66b70c2c-r{row}-c{col}-native.png
• base_path_thumb: xlsx_3M_synd/2021q1/360_images/thumbnails/21a4ed1b2ffda06a41cf5040f27cd07f66b70c2c-r{row}-c{col}-thumb.png
• base_path_small: xlsx_3M_synd/2021q1/360_images/small/21a4ed1b2ffda06a41cf5040f27cd07f66b70c2c-r{row}-c{col}-small.png
• rows: 1
• rows: 1
• rows: 1
• base_path_native: xlsx_3M_synd/2021q1/360_images/native/21a4ed1b2ffda06a41cf5040f27cd07f66b70c2c-r{row}-c{col}-native.png
• base_path_large: xlsx_3M_synd/2021q1/360_images/large/21a4ed1b2ffda06a41cf5040f27cd07f66b70c2c-r{row}-c{col}-large.png
• columns: 20
• rows: 1
• base_path_large: xlsx_3M_synd/2021q1/360_images/large/21a4ed1b2ffda06a41cf5040f27cd07f66b70c2c-r{row}-c{col}-large.png
• columns: 20
• display_name: 1681aa1c38854cdbaf4879b473d2d7c4 360 Image
• base_path_medium: xlsx_3M_synd/2021q1/360_images/medium/21a4ed1b2ffda06a41cf5040f27cd07f66b70c2c-r{row}-c{col}-medium.png
• base_path_thumb: xlsx_3M_synd/2021q1/360_images/thumbnails/21a4ed1b2ffda06a41cf5040f27cd07f66b70c2c-r{row}-c{col}-thumb.png
• base_path_thumb: xlsx_3M_synd/2021q1/360_images/thumbnails/21a4ed1b2ffda06a41cf5040f27cd07f66b70c2c-r{row}-c{col}-thumb.png
• base_path_large: xlsx_3M_synd/2021q1/360_images/large/21a4ed1b2ffda06a41cf5040f27cd07f66b70c2c-r{row}-c{col}-large.png
• base_path_native: xlsx_3M_synd/2021q1/360_images/native/21a4ed1b2ffda06a41cf5040f27cd07f66b70c2c-r{row}-c{col}-native.png
• display_name: 1681aa1c38854cdbaf4879b473d2d7c4 360 Image
• base_path_thumb: xlsx_3M_synd/2021q1/360_images/thumbnails/21a4ed1b2ffda06a41cf5040f27cd07f66b70c2c-r{row}-c{col}-thumb.png
• base_path_thumb: xlsx_3M_synd/2021q1/360_images/thumbnails/21a4ed1b2ffda06a41cf5040f27cd07f66b70c2c-r{row}-c{col}-thumb.png
• base_path_native: xlsx_3M_synd/2021q1/360_images/native/21a4ed1b2ffda06a41cf5040f27cd07f66b70c2c-r{row}-c{col}-native.png
• display_name: 1681aa1c38854cdbaf4879b473d2d7c4 360 Image
• display_name: 1681aa1c38854cdbaf4879b473d2d7c4 360 Image
• base_path_thumb: xlsx_3M_synd/2021q1/360_images/thumbnails/21a4ed1b2ffda06a41cf5040f27cd07f66b70c2c-r{row}-c{col}-thumb.png
• base_path_medium: xlsx_3M_synd/2021q1/360_images/medium/21a4ed1b2ffda06a41cf5040f27cd07f66b70c2c-r{row}-c{col}-medium.png
• base_path_large: xlsx_3M_synd/2021q1/360_images/large/21a4ed1b2ffda06a41cf5040f27cd07f66b70c2c-r{row}-c{col}-large.png

Features

• Helps provide a moisture-resistant seal
• Suitable for applications requiring moisture and UV protection
• Accommodates 16 to 14 AWG solid/stranded, 12 AWG stranded (outer ports) and 18 AWG solid/stranded, 20 AWG stranded (inner port)
• C UL Listed and RoHS 2011/65/EU Compliant

Specifications

• Color Family: Multi-Color
• Conductor Size: 22 - 16 AWG
• Conductor Sizes: 22 - 16 AWG
• Connection Type: Pigtail
• Connector / Connector Tool: 3M Crimping Tool E-9BM, 8" Mechanics (slip joint) Pliers
• Connector Style: Insulation Displacement
• Family: IDC for Electrical Applications
• Flame Retardant: Yes
• Grease Filling Against Corrosion: Yes
• Insulation Color: cap black, body white
• Insulation Material: Nylon
• Insulation Outer Diameter (Imperial): 0.155 in
• Interrupt Free Shifting: No
• Material: Flame Retardant Nylon
• Maximum Operating Temperature (Celsius): 105 Degree Celsius
• Maximum Operating Temperature (Fahrenheit): 221 Degree Fahrenheit
• Maximum Recommended Voltage Rating: 600 V
• Maximum Wire Gauge: 16 AWG
• Minimum Operating Temperature (Celsius): 0 NP
• Minimum Operating Temperature (Fahrenheit): 0 NP
• Minimum Wire Gauge: 22 AWG
• Package Quantity: 1000
• Product Color: White - Black
• Product Type: Connector
• Recommended Crimping Tool: E-9BM
• RoHS EU Comments: RoHS 2011/65/EU compliant without exemption
• UL File Number: E23438
• Voltage Application: Low Voltage
• Water-resistant: Yes
• Wire Connector Type: IDC Connectors
• Wire Gauge: 22 to 14 AWG
