3M 40025 40025 ALUMINUM COMPRESSION
$9.93/ea
Usually ships within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # 40025
North Coast Part # 216049

Overview

The 3M Scotchlok Aluminum One Hole Lug 40025 is for use with copper or aluminum conductors. These aluminum lugs feature color coded end caps for identification. Contact aid provided in the lug barrel is compatible with poly/EPR insulations.

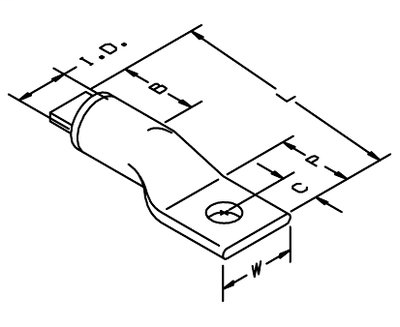

Specifications

  • Barrel Length (metric): 23.4 mm
  • Barrel Style: Standard Barrel
  • Pad Length (metric): 28.4 mm
  • Pad Width: 0.75 Inch
  • Length: 2.62 Inch
  • Pad Width (metric): 19.1 mm
  • Pad Length: 1.12 Inch
  • Trademark: Scotchlok
  • Inside Diameter (metric): 7.8 mm
  • For Use With: Aluminum or Copper Conductors
  • Stud Sizes: 1/2 Inch
  • Barrel Length: 0.92 Inch
  • Outside Diameter (metric): 13.5 mm
  • Color: Pink
  • Number of Holes: 1
  • RoHS 2011/65/EU Compliant: Yes
  • Conductor Sizes: 2 AWG
  • Outside Diameter: 0.531 Inch
  • RoHS EU Comments: RoHS 2011/65/EU compliant without exemption
  • Center of Hole to End of Pad (metric): 11.2 mm
  • Length (Metric): 66.5 mm
  • Inside Diameter: 0.307 Inch
  • Lug Base Metal: Aluminum
  • Center of Hole to End of Pad: 0.44 Inch

Documents

Overview

UPC 05400713434
GTiN 00054007134343
Length 2.62 in
Width 0.531 in
Color Pink
Type Standard Barrel
Applications Aluminum or Copper Conductors
Family Brand Name 3M
Sub Brand Scotchlok
Barrel Type Standard Barrel
Stud Size 1/2 in
Conductor Size 2 AWG
Barrel Length 0.92 in
Inside Diameter 0.307 in
