3M 40141 40141 ALUMINUM COMPRESSION
$18.29/ea
Usually ships within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # 40141
North Coast Part # 1339461

Features

  • Standard barrel ensures a secure fit and offers reliable performance

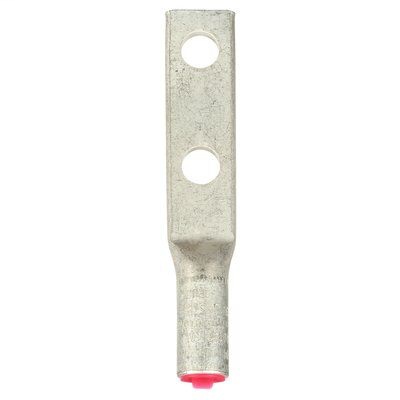

  • 3M™ Scotchlok™ 40100 2 Hole Compression Lug is suitable for use with copper or aluminum conductors. The lug has a standard barrel that ensures a secure fit. Aluminum construction offers high conductivity and an electro tin plated finish resists corrosion. It is rated for 35 kV voltage applications.
  • Barrel sealing caps are color coded to help to indicate the wire guage
  • Made of aluminum for good conductivity and tin plating for corrosion resistance
  • Rated for 35 kV voltage applications
  • UL Listed and RoHS 2011/65/EU Compliant

Legal Disclaimer

  • The designation that a product is Manufactured in the USA means the product undergoes substantial transformation in one of our U.S. Manufacturing plants. Some products contain imported components.
  • Note: 3M products offered on a government contract that require country of origin representation must be certified by 3M Trade Compliance. Contact customer service at 800-245-3573 to request a certificate.

Specifications

  • 3M ID: 80610033906
  • Agency Approvals: UL Listed
  • Barrel Length (Imperial): 1.5 in
  • Barrel Length (Metric): 38.1 mm
  • Barrel Style: Standard Barrel
  • Brand: Scotchlok™
  • Case Quantity: 10
  • Center of Hole to Center of Hole: 1.75 Inch
  • Center of Hole to Center of Hole (Metric): 44.5 mm
  • Center of Hole to End of Pad: 0.62 Inch
  • Center of Hole to End of Pad (Metric): 15.7 mm
  • Color Family: Red
  • Conductor Size: 3/0 AWG
  • Connector Description: Two hole
  • For Use With: Aluminum or Copper Conductors
  • Inside Diameter (Imperial): 0.484 in
  • Inside Diameter (Metric): 12.3 mm
  • Lug Type: Compression Lugs
  • Manufacturing Origin: USA
  • Material: Aluminum
  • Maximum Operating Voltage: 35 Kilovolt
  • Number of Stud Holes: 2
  • Outer Diameter (Imperial): 0.76 in
  • Outside Diameter (Metric): 19.3 mm
  • Overall Length (Imperial): 5.5 in
  • Overall Length (Metric): 139.7 mm
  • Pad Length (Imperial): 3.25 in
  • Pad Length (Metric): 82.6 mm
  • Pad Width: 1.06 in
  • Product Color: Ruby
  • Stud Sizes: 1/2 Inch

Overview

UPC 05400713624
GTiN 00054007136248
Length 5.5 in
Width 0.484 in
Color Red,Ruby
Type Standard Barrel
Barrel Type Standard Barrel
Conductor Size 3/0 AWG
Number of Holes 2 Hole
Applications Aluminum or Copper Conductors
Family Brand Name Scotchlok
Outside Diameter 0.76 in
Barrel Length 1.50 in
Max Voltage 35 kV
Sub Brand Scotchlok
Material Aluminum
Overall Length 5.5 in
