Overview
3M™ Scotchlok™ 40100 2-Hole Compression Lug is suitable for use with copper or aluminum conductors. The lug has a standard barrel that ensures a secure fit. Aluminum construction offers high conductivity and an electro tin-plated finish resists corrosion. It is rated for 35 kV voltage applications.
3M™ Scotchlok™ 40100 2-Hole Compression Lug is color-coded for easy identification. The standard barrel ensures a secure fit and offers reliable performance. It has chamfered ends that enable fast, simple conductor insertion. The contact aid in the lug barrel is compatible with poly/EPR insulations. It withstands a maximum temperature of 221 degrees F (105 degrees C). UL Listed and RoHS 2011/65/EU Compliant.
- Standard barrel ensures a secure fit and offers reliable performance
- Barrel has brown stripes that help to indicate the wire range
- Stud size 1/2 in
- Accommodates wire size of 1000 kcmil
- Made of aluminum for good conductivity and tin plating for corrosion resistance
- Rated for 35 kV voltage applications
- UL Listed and RoHS 2011/65/EU Compliant
- 6/case
Specifications
- 3M ID: 80610033997
- Agency Approvals: UL Listed

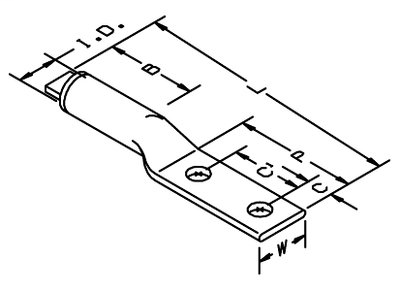

- Barrel Length: 4.62 Inch
- Barrel Length (metric): 117.4 mm
- Barrel Style: Standard Barrel
- Brand: Scotchlok
- Case Quantity: 6
- Center of Hole to Center of Hole: 1.75 Inch
- Center of Hole to Center of Hole (metric): 44.5 mm
- Center of Hole to End of Pad: 0.62 Inch
- Center of Hole to End of Pad (metric): 15.7 mm
- Color: Brown
- Conductor Size: 1000 kcmil
- Conductor Sizes: 1000 kcmil
- Connector Description: Two hole
- Connector Material: Aluminum
- For Use With: Aluminum or Copper Conductors
- Inside Diameter: 1.19 Inch
- Inside Diameter (metric): 30.2 mm
- Length: 9.68 Inch
- Length (Metric): 245.8 mm
- Lug Base Metal: Aluminum
- Lug Type: Compression Lugs
- Maximum Voltage: 35 Kilovolt
- Number of Holes: 2
- Outside Diameter: 1.84 Inch
- Outside Diameter (metric): 46.7 mm
- Pad Length: 3.62 Inch
- Pad Length (metric): 92.0 mm
- Pad Width: 2.44 Inch
- Pad Width (metric): 62 mm
- Product Series: 40000
- RoHS 2011/65/EU Compliant: Yes
- RoHS EU Comments: RoHS 2011/65/EU compliant without exemption
- Stud Sizes: 1/2 Inch
- Trademark: Scotchlok
