3M 5110-OS 5110-OS PILC ACCESS OIL

Features

• Seals the oil inside the paper-insulated, lead-covered cable
• Environmentally seals the accessory end, as well as the cable jacket
• 3M™ PILC Accessory Oil Stop Kit is specifically designed to seal the oil inside the paper insulated, lead covered cable. The kit offers an accessory ground lead and it environmentally seals the accessory end, as well as the cable jacket.
• IEEE Approved

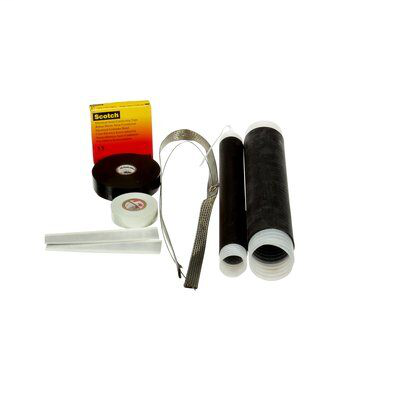

• 3M™ PILC Accessory Oil Stop Kit contains all the necessary accessories that are required for sealing PILC cables. It includes a cold shrink oil stop tube, cold shrink jacket tube, white restricting tape, Scotch® Rubber Tape 130C, Scotch® Semi Conducting Tape 13, a ground lead with accessory bleed wire and mastic seal strips. IEEE Approved.

Legal Disclaimer

• The designation that a product is Manufactured in the USA means the product undergoes substantial transformation in one of our U.S. Manufacturing plants. Some products contain imported components.
• Note: 3M products offered on a government contract that require country of origin representation must be certified by 3M Trade Compliance. Contact customer service at 800-245-3573 to request a certificate.

Specifications

• 3M ID: 80611200033
• Brand: 3M™
• Cable Shielding: Paper Insulated Lead Covered (PILC)
• Conductor Size by Voltage: (15 kV,) 4-3/0 AWG
• Conductor Sizes: 1 AWG || 1/0 AWG || 2 AWG || 2/0 AWG || 3/0 AWG || 4 AWG
• Family: 200 amp Load Break Accessories
• Manufacturing Origin: USA
• Maximum Insulation Diameter (Over Paper): 0.58 in
• Maximum Insulation Diameter (Over Paper) (Metric): 14.7 mm
• Maximum Lead Diameter: 1.1 in
• Maximum Lead Diameter (Metric): 27.9 mm
• Maximum Operating Voltage: 15 kV
• Product Type: Accessory
• Voltage: 15 kV || 25/28 kV
