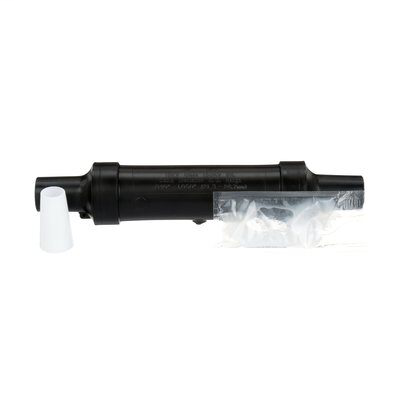

3M 5411 Molded Rubber Inline 15 kV Splicing Kit

Features

• 1-piece inline splice to use on jacketed concentric neutral (JCN) or concentric neutral (CN) cables
• Provides an electrical connection for the outer conducting jacket to the cable semi-conductive jacket
• 3M™ 5411/5412 Series Molded Rubber QS II Splice Kit is a 1 piece inline splice designed to use on 15kV jacketed concentric neutral (JCN) or concentric neutral (CN) cables. The cold shrink jacket has peroxide cured EPDM rubber construction to ensure moisture resistance and durability.
• 3M™ 5411/5412 Series Molded Rubber QS II Splice Kit is suitable to use on cables that can withstand a maximum temperature of 90 °C. It provides an electric connection of outer conducting jacket to a cable semi conductive jacket. The kit meets the requirements of IEEE 404 standards.
• Designed to use on cables that can withstand a maximum temperature of 194 °F (90 °C)
• The cold shrink jacket is made of peroxide-cured EPDM rubber which provides moisture resistance and durability
• Rated for 15 kV cables
• Factory-tested to offer reliability

Legal Disclaimer

• The designation that a product is Manufactured in the USA means the product undergoes substantial transformation in one of our U.S. Manufacturing plants. Some products contain imported components.
• Note: 3M products offered on a government contract that require country of origin representation must be certified by 3M Trade Compliance. Contact customer service at 800-245-3573 to request a certificate.

Specifications

• 3M ID: 80610076715
• Brand: 3M™
• Cable Shielding: Concentric Neutral (CN) || Jacketed Concentric Neutral (JCN)
• Case Quantity: 1
• Connector Included: None
• Insulation O.D. Range: 0.637 - 0.900 Inch
• Insulation Outer Diameter (Imperial): 0.63 in || 0.64 in || 0.65 in || 0.66 in || 0.67 in || 0.68 in || 0.69 in || 0.7 in || 0.71 in || 0.72 in || 0.73 in || 0.74 in || 0.75 in || 0.76 in || 0.77 in || 0.78 in || 0.79 in || 0.8 in || 0.81 in || 0.82 in || 0.83 in || 0.84 in || 0.85 in || 0.86 in || 0.87 in || 0.88 in || 0.89 in || 0.9 in
• Insulation Outer Diameter (Metric): 16 mm || 16.256 mm || 16.51 mm || 16.764 mm || 17.018 mm || 17.272 mm || 17.526 mm || 17.78 mm || 18.034 mm || 18.288 mm || 18.542 mm || 18.796 mm || 19.05 mm || 19.304 mm || 19.558 mm || 19.812 mm || 20.066 mm || 20.32 mm || 20.574 mm || 20.828 mm || 21.082 mm || 21.336 mm || 21.59 mm || 21.844 mm || 22.098 mm || 22.352 mm || 22.606 mm || 22.86 mm
• Insulation Outside Diameter Range: 0.637 - 0.900 Inch
• Insulation Outside Diameter Range (Metric): 16.2 - 22.9 mm
• Manufacturing Origin: USA
• Maximum Solid Conductor Size: 1 AWG || 1/0 AWG || 2 AWG
• Maximum Stranded Conductor Size: 1 AWG || 1/0 AWG || 2 AWG || 2/0 AWG (175 mil) || 4 AWG
• Number of Conductors: 1
• Operating Voltage: 15 kV
• Product Type: Inline Splice
• Splice Type: Inline
