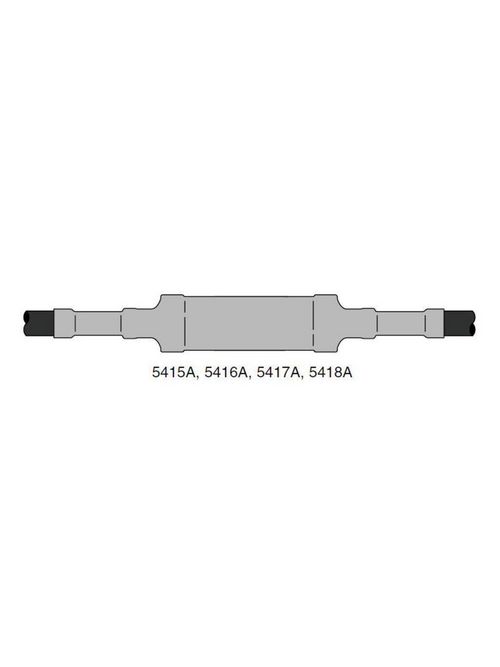

3M 5418A-1000-AL QS-III Splice Kit
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$936.18/ea
Usually ships within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # 5418A-1000-AL
North Coast Part # 663941

Features

  • Inline splice for joining jacketed concentric neutral (JCN) and concentric neutral (CN) power cables
  • Special electrode design of the kit reduces the electrical stress at a critical cable/splice interface
  • Designed for feeder and distribution circuits, size transition splicing, direct burial installations, submerged locations and use with standard inline crimp connectors
  • Silicon rubber-splice body provides good high and low temperature performance, and the EPDM rubber jacket offers physical protection
  • Rated for 15 kV class cables
  • Factory-tested partial discharge and AC ensure reliability

Specifications

  • Cable Shielding: Concentric Neutral (CN) - Jacketed Concentric Neutral (JCN)
  • Conductor Material: Aluminum
  • Conductor Sizes: 250 kcmil
  • Insulation Level: 133% - 100% - 1.33
  • Insulation Outer Diameter (Imperial): 1.62 in - 1.36 in - 1.5 in - 1.58 in - 1.13 in - 1.65 in - 1.27 in - 1.37 in - 1.12 in - 1.66 in - 1.55 in - 1.23 in - 1.53 in - 1.46 in - 1.6 in - 1.26 in - 1.24 in - 1.1 in - 1.32 in - 1.39 in - 1.4 in - 1.19 in - 1.48 in - 1.34 in - 1.59 in - 1.49 in - 1.68 in - 1.14 in - 1.28 in - 1.69 in - 1.21 in - 1.54 in - 1.38 in - 1.43 in - 1.11 in - 1.15 in - 1.57 in - 1.08 in - 1.31 in - 1.51 in - 1.29 in - 1.52 in - 1.2 in - 1.7 in - 1.3 in - 1.47 in - 1.16 in - 1.64 in - 1.61 in - 1.56 in - 1.18 in - 1.35 in - 1.63 in - 1.22 in - 1.44 in - 1.09 in - 1.42 in - 1.33 in - 1.67 in - 1.17 in - 1.41 in - 1.25 in - 1.45 in
  • Number of Conductors: 1
  • Splice Type: Cold Shrink
  • Voltage: 15 kV

Overview

UPC 05400742130
Item Long Description 3M Cold Shrink QS-III Inline CN/JCN Cable Splices 5456A-WG, 5457A-WG and 5458A-WG are inline splices for joining 25/28 kV jacketed concentric neutral (JCN) or concentric neutral (CN) power cables. It is a cold shrink design.
GTiN 00054007421306
Type Inline
Number of Conductors 1
Conductor Size 1000 MCM
Cable Type Concentric Neutral (CN); Jacketed Concentric Neutral (JCN)
Family Brand Name 3M
Conductor Material Aluminum
Voltage 15,000 Volt
