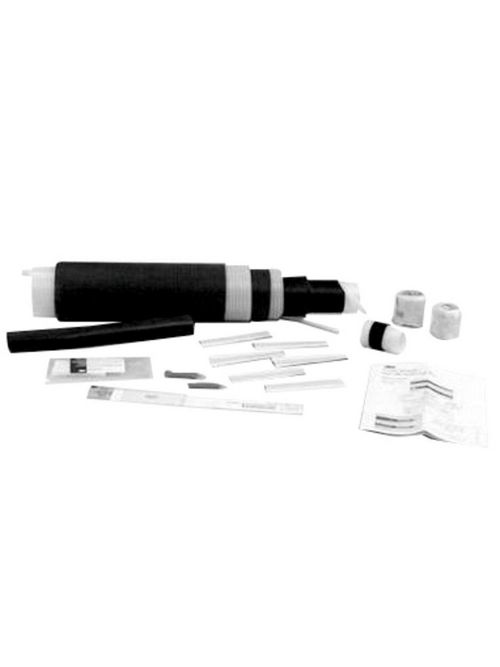

3M 5516A-500-CU QSIII Splice Kit
Product image thumbnail 0
Product image thumbnail 1
$1,076.36/ea
Usually ships within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # 5516A-500-CU
North Coast Part # 269529

Features

  • Inline splice for joining tape shield, wire shield, UniShield® or longitudinally corrugated shielded power cables
  • Special electrode design of the kit reduces the electrical stress at a critical cable/splice interface
  • Designed for feeder and distribution circuits, it transitions from shielded to neutral power cables and fits type MV-90 cables
  • Cable has 1.08 to 1.7-in insulation O.D.
  • Accommodates 500 kcmil size copper conductors
  • Silicon rubber-splice body provides good high and low temperature performance, and the EPDM rubber jacket offers physical protection
  • Rated for 15 kV class cables
  • Factory-tested partial discharge and AC ensure reliability
  • Meets or exceeds the class rating requirements of IEEE 404 standards

Specifications

  • Cable Shielding: Longitudinally Corrugated (LC) - UniShield® - Wire Shield - Tape Shield
  • Conductor Material: Copper
  • Conductor Sizes: 500 kcmil
  • Connector Included: 10014
  • Number of Conductors: 1
  • Product Technology: Cold Shrink
  • Product Type: Splice
  • RoHS EU Comments: Contact 3M for information
  • Splice Type: Inline
  • Voltage: 15 kV

Overview

UPC 05400744406
GTiN 00054007444060
Type Inline
Number of Conductors 1
Conductor Size 500 MCM
Cable Type Longitudinally Corrugated (LC); Tape Shield; UniShield(R); Wire Shield
Family Brand Name 3M
Conductor Material Copper
Voltage 15 kV
Splice Type Inline
Product Type Splice
