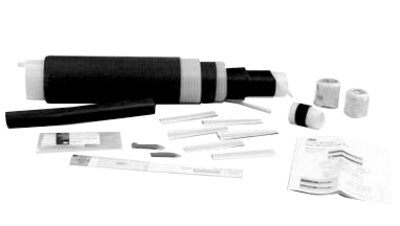

3M 5536A QS-III Splice Kit
$2,004.08/ea
Usually ships within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # 5536A
North Coast Part # 879511

Features

  • Inline splice for joining tape shield, wire shield, UniShield® or longitudinally corrugated shielded power cables
  • Special electrode design of the kit reduces the electrical stress at a critical cable/splice interface
  • 3M™ Cold Shrink QS-III Inline Shielded Cable Splice Kits 5535A and 5536A Series are inline splices for joining 35 kV tape shield, wire shield, UniShield® or longitudinally corrugated (LC) shielded power cables. The cold shrink splice body is a one-piece molded design made of specially formulated silicone rubbers, while the jacketing is made of EPDM rubber for its special physical properties.
  • Designed for inline splicing, feeder and distribution circuits, size transition splicing, direct burial installations and submerged locations
  • Each splice is high-voltage production tested to ensure reliability. The splices can be used with standard copper (Cu) or aluminum (Al/Cu) inline compression (crimp type) connectors, and can be used for size transitions within the listed kit size range. They are designed to exceed minimum industry test standards, and have a BIL rating of 250 kV (equal to a 46 kV voltage class). The 3M™ Cold Shrink QS-III Splices 5535A and 5536A meet or exceed the 35 kV Voltage Class rating requirements of IEEE 404. Kits can be ordered with connectors packed in the kit, or the kit and connector can be ordered as separate items. Each kit makes one splice. Note: Cable sizes shown below are for standard insulation thickness. Final determining factor is cable insulation O.D.
  • Silicon rubber-splice body provides good high and low temperature performance, and the EPDM rubber jacket offers physical protection
  • Rated for 35 kV cables
  • High-voltage, production-tested for partial discharge and AC ensure reliability

Legal Disclaimer

  • The designation that a product is Manufactured in the USA means the product undergoes substantial transformation in one of our U.S. Manufacturing plants. Some products contain imported components.
  • Note: 3M products offered on a government contract that require country of origin representation must be certified by 3M Trade Compliance. Contact customer service at 800-245-3573 to request a certificate.

Specifications

  • 3M ID: 80611232200
  • Manufacturing Origin: USA
  • Brand: 3M™
  • Cable Shielding: Longitudinally Corrugated (LC)
  • Voltage: 35 kV

Overview

UPC 05400743082
GTiN 00054007430827
Number of Conductors 1
Conductor Size 1000 MCM; 350 MCM; 500 MCM; 750 MCM
Cable Type Longitudinally Corrugated (LC); Tape Shield; UniShield(R); Wire Shield
Family Brand Name 3M
Conductor Material Aluminum; Copper
Voltage 35 kV
Splice Type QS-III,Inline
Product Type Splice
