3M 558-BULK 558 S/LOK BULK 500/BAG
$0.43/ea
Usually ships within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # 558-BULK
North Coast Part # 152601

Features

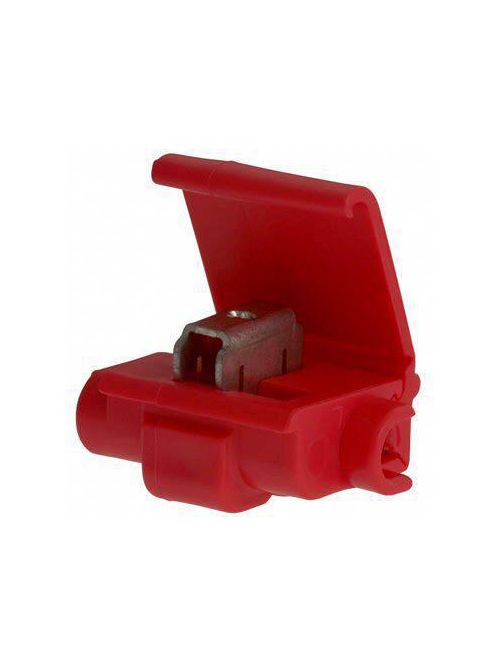

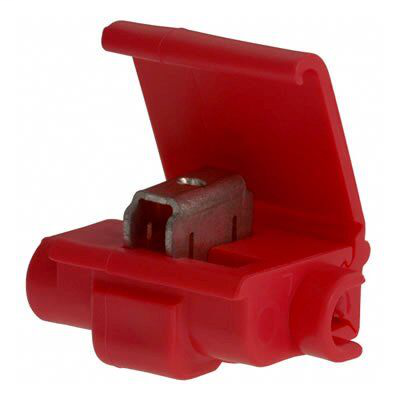

  • Red, polypropylene-insulated connector
  • 3M™ Scotchlok™ Insulation Displacement Connector 558 electrically connects a tap wire to a run (through) wire while insulating the connection. The connector is polypropylene insulated and self stripping.
  • Suitable for general purpose electrical connections on an auto, boat, van or trailer
  • Accommodates 18 to 16 AWG solid/stranded or 14 AWG stranded
  • 3M™ Scotchlok™ Insulation Displacement Connector 558 is suitable for control circuit wiring, fixture wiring, appliance wiring, signal and PA systems and automotive/boat/RV wiring. It is 600V rated for building wire and 1000V rated for signs, fixtures and luminaires. The connector withstands temperatures of 221 degrees F (105 degrees C). UL Listed, CSA Certified and RoHS 2011/65/EU Compliant.
  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant

Legal Disclaimer

  • The designation that a product is Manufactured in the USA means the product undergoes substantial transformation in one of our U.S. Manufacturing plants. Some products contain imported components.
  • Note: 3M products offered on a government contract that require country of origin representation must be certified by 3M Trade Compliance. Contact customer service at 800-245-3573 to request a certificate.

Specifications

  • 3M ID: 80004000487
  • Agency Approvals: UL and CSA
  • Brand: Scotchlok™
  • China RoHS - Below MCV: Yes
  • Color Family: Red
  • Conductor Size: 18 - 16 AWG / 14 AWG Stranded
  • Conductor Sizes: 22 - 16 AWG (Tap)
  • Connection Type: Double Run or Tap
  • Connector Style: Insulation Displacement
  • Family: IDC for Electrical Applications
  • Flame Retardant: Yes
  • Insulation Material: Polypropylene
  • Insulation Outer Diameter (Imperial): 0.12 in
  • Manufacturing Origin: USA
  • Material: Insulator: FR Polypropylene, U-Contact: Tin-plated brass
  • Maximum Operating Temperature (Celsius): 105 Degree Celsius
  • Maximum Operating Temperature (Fahrenheit): 221 Degree Fahrenheit
  • Maximum Recommended Voltage Rating: 600 V
  • Maximum Wire Gauge: 16 AWG
  • Minimum Wire Gauge: 22 AWG
  • Package Quantity: 1000
  • Product Color: Red
  • Product Type: Run & Tap
  • Recommended Crimping Tool: E-9BM or 9 in. Linemans Pliers
  • Run Maximum Insulation Outer Diameter (Imperial): 0.12 in
  • Run Maximum Insulation Outer Diameter (Metric): 3.1 mm
  • Tap Maximum Insulation Outer Diameter (Imperial): 0.12 in
  • Tap Maximum Insulation Outer Diameter (Metric): 3.1 mm
  • Voltage Application: Low Voltage
  • Water-resistant: No
  • Wire Connector Type: IDC Connectors
  • Wire Gauge: 18 to 16 AWG solid/stranded or 14 AWG stranded

Overview

UPC 05400714879
GTiN 00054007148791
Color Red
Type Insulation Displacement
Wire Size 22-16 AWG
Temperature Rating 221 F
Family Brand Name Scotchlok
Sub Brand Scotchlok
Max Operating Temperature 221 degrees F
Voltage null
