3M 5613A 5613A SILICONE RUBBER COLD
$176.36/ea
Usually ships within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # 5613A
North Coast Part # 681627

Features

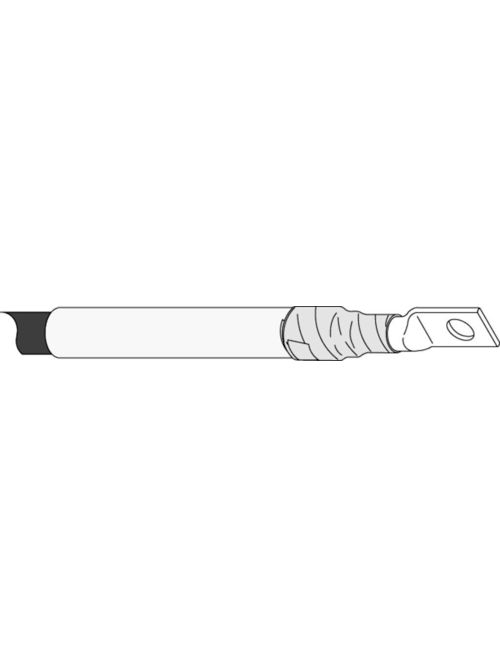

  • Provides a seal between the connecting lug and unshielded power cables
  • 3M™ Cold Shrink QT II 5610 A Series Termination Kit includes 3 non skirted, single conductor terminations. It ensures a pliable, tight seal for unshielded power cables. The silicone rubber insulation allows the termination to withstand voltages of 5kV to 8 kV.
  • Suitable for indoor and outdoor applications
  • 3M™ Cold Shrink QT II 5610 A Series Termination Kit is designed for terminating medium voltage cables in both indoor and weather exposed outdoor applications. The track resistant, silicone rubber insulation of the termination has a hydrophobic property and offers a long lasting service life while minimizing leakage currents in wet conditions.
  • Silicone rubber insulation offers durability and reduces leakage currents in damp conditions
  • Withstands voltages of 5kV to 8 kV

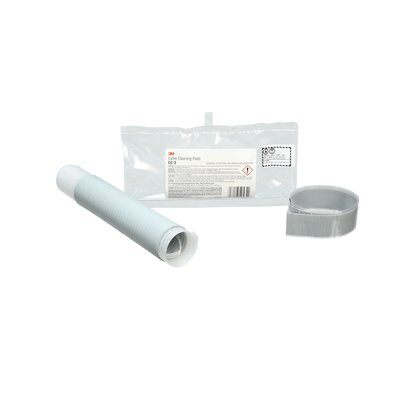

  • Includes 3 non-skirted, single-conductor, cold shrink terminations

Legal Disclaimer

  • The designation that a product is Manufactured in the USA means the product undergoes substantial transformation in one of our U.S. Manufacturing plants. Some products contain imported components.
  • Note: 3M products offered on a government contract that require country of origin representation must be certified by 3M Trade Compliance. Contact customer service at 800-245-3573 to request a certificate.

Specifications

  • 3M ID: 80610592885
  • Agency Approvals: IEEE
  • Brand: 3M™
  • Breakout Boot: No
  • Cable Insulation Outside Diameter Range: 0.56-1.18 in
  • Cable Insulation Outside Diameter Range (Metric): 14.2-30.0 mm
  • Cable Shielding: Non-shielded
  • Case Quantity: 1
  • Conductor Size Range: 3/0 AWG-300 kcmil
  • Conductor Sizes: 250 kcmil || 3/0 AWG || 300 kcmil || 4/0 AWG
  • Family: QT-II
  • Indoor/Outdoor: Indoor Non-skirted
  • Insulation Level: 100% || 133%
  • Insulation Outer Diameter (Imperial): 0.56 in || 0.57 in || 0.58 in || 0.59 in || 0.6 in || 0.61 in || 0.62 in || 0.63 in || 0.64 in || 0.65 in || 0.66 in || 0.67 in || 0.68 in || 0.69 in || 0.7 in || 0.71 in || 0.72 in || 0.73 in || 0.74 in || 0.75 in || 0.76 in || 0.77 in || 0.78 in || 0.79 in || 0.8 in || 0.81 in || 0.82 in || 0.83 in || 0.84 in || 0.85 in || 0.86 in || 0.87 in || 0.88 in || 0.89 in || 0.9 in || 0.91 in || 0.92 in || 0.93 in || 0.94 in || 0.95 in || 0.96 in || 0.97 in || 0.98 in || 0.99 in || 1 in || 1.01 in || 1.02 in || 1.03 in || 1.04 in || 1.05 in || 1.06 in || 1.07 in || 1.08 in || 1.09 in || 1.1 in || 1.11 in || 1.12 in || 1.13 in || 1.14 in || 1.15 in || 1.16 in || 1.17 in || 1.18 in
  • Insulation Outer Diameter (Metric): 14.224 mm || 14.478 mm || 14.732 mm || 14.986 mm || 15.24 mm || 15.494 mm || 15.748 mm || 16.002 mm || 16.256 mm || 16.51 mm || 16.764 mm || 17.018 mm || 17.272 mm || 17.526 mm || 17.78 mm || 18.034 mm || 18.288 mm || 18.542 mm || 18.796 mm || 19.05 mm || 19.304 mm || 19.558 mm || 19.812 mm || 20.066 mm || 20.32 mm || 20.574 mm || 20.828 mm || 21.082 mm || 21.336 mm || 21.59 mm || 21.844 mm || 22.098 mm || 22.352 mm || 22.606 mm || 22.86 mm || 23.114 mm || 23.368 mm || 23.622 mm || 23.876 mm || 24.13 mm || 24.384 mm || 24.638 mm || 24.892 mm || 25.146 mm || 25.4 mm || 25.654 mm || 25.908 mm || 26.162 mm || 26.416 mm || 26.67 mm || 26.924 mm || 27.178 mm || 27.432 mm || 27.686 mm || 27.94 mm || 28.194 mm || 28.448 mm || 28.702 mm || 28.956 mm || 29.21 mm || 29.464 mm || 29.718 mm || 29.972 mm
  • Insulation Rejacketing: No
  • Lug/Stem Connector Included in Kit: No
  • Manufacturing Origin: USA
  • Maximum Installed Length: 8.00 in
  • Number of Conductors: 1
  • Voltage: 5 kV || 8 kV

Overview

UPC 05400749551
GTiN 00054007495512
Voltage 5 kV
Type QT-II
Conductor Size 300 MCM
Applications Indoor/Outdoor
Cable Type Non-Shielded
Family Brand Name 3M
Indoor Outdoor Outdoor Skirted,Indoor Non-skirted
