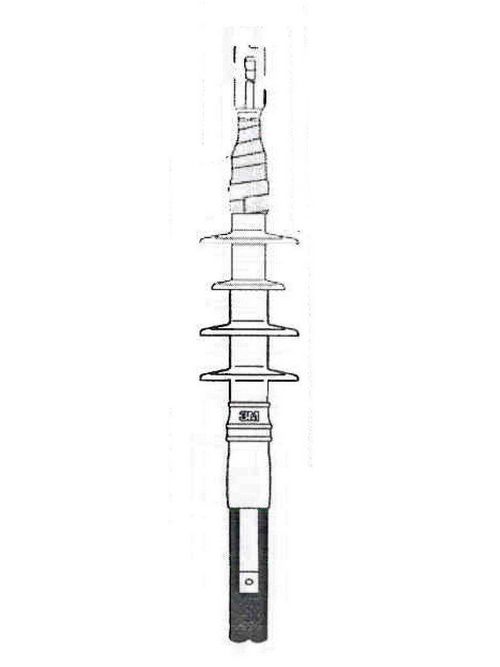

3M 5632K Cold Shrink 3 Terms/Kit Skirted Termination Kit

Features

• One-piece cold shrink termination.
• High dielectric-constant material regulates the distribution of electric field stress
• Suitable for outdoor, weather exposed applications
• Silicone rubber insulation is track-resistance and hydrophobic
• Silicone cold shrink application provides constant radial pressure, "living seal"
• Withstands voltages of 5 to 15kV and is 110 kV BIL-rated
• Includes three 4-skirt, 1-piece, cold shrink terminations
• Meets IEEE Standard 48, Class 1 for outdoor, weather-exposed applications

Specifications

• Application: Cable Termination
• BIL: 110 kV
• Breakout Boot: No
• Cable Insulation Outside Diameter Range: 0.33-0.69 in
• Cable Insulation Outside Diameter Range (Metric): 8.4-17.5 mm
• Cable Shielding: Wire-Over-Tape Shield - Wire Shield - UniShield® - Tape Shield
• Conductor Size by Voltage: (5 kV, 100%) 8-2/0 AWG, (5 kV, 133%) 8-1/0 AWG, (8 kV, 100%) 8-1/0 AWG, (8 kV, 133%) 8-1 AWG, (15 kV, 100%) 8-4 AWG, (15 kV, 133%) 8-6 AWG
• Conductor Sizes: 8 AWG - 4 AWG - 2/0 AWG - 1/0 AWG - 2 AWG - 1 AWG - 6 AWG
• Family: QT-II
• Indoor/Outdoor: Outdoor Skirted
• Insulation Level: 133% - 100%
• Insulation Outer Diameter (Imperial): 0.61 in - 0.57 in - 0.5 in - 0.49 in - 0.43 in - 0.46 in - 0.6 in - 0.48 in - 0.42 in - 0.53 in - 0.64 in - 0.67 in - 0.68 in - 0.66 in - 0.65 in - 0.51 in - 0.55 in - 0.33 in - 0.59 in - 0.36 in - 0.45 in - 0.41 in - 0.34 in - 0.37 in - 0.4 in - 0.58 in - 0.63 in - 0.54 in - 0.39 in - 0.44 in - 0.69 in - 0.56 in - 0.52 in - 0.47 in - 0.38 in - 0.35 in - 0.62 in
• Insulation Outer Diameter (Metric): 11.43 mm - 13.97 mm - 11.938 mm - 12.446 mm - 14.478 mm - 9.398 mm - 11.684 mm - 15.748 mm - 9.652 mm - 14.732 mm - 16.51 mm - 17.526 mm - 15.494 mm - 8.382 mm - 13.462 mm - 17.018 mm - 13.716 mm - 12.192 mm - 10.922 mm - 9.906 mm - 12.7 mm - 10.414 mm - 8.89 mm - 14.986 mm - 8.636 mm - 10.16 mm - 16.002 mm - 14.224 mm - 16.256 mm - 12.954 mm - 10.668 mm - 17.272 mm - 13.208 mm - 15.24 mm - 11.176 mm - 16.764 mm - 9.144 mm
• Insulation Rejacketing: No
• Lug/Stem Connector Included in Kit: No
• Maximum Installed Length: 13.25 in
• Number of Conductors: 1
• Number of Skirts: 4
• Product Color: Gray
• RoHS EU Comments: Contact 3M for information
• Voltage: 8 kV - 15 kV - 5 kV
