3M 5802-Pb-4/0 Cold Shrink Terminat
$665.14/ea
Usually ships within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # 5802-PB-4/0
North Coast Part # 423114

Overview

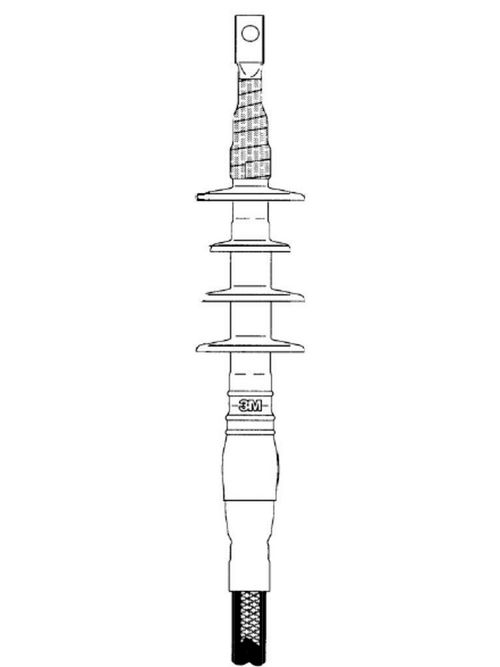

3M™ Cold Shrink QT-II 5800-Pb Series Termination Kit includes a 4-skirt, 1-conductor termination. It ensures a pliable, tight seal for oil/paper-insulated, lead-covered power cables. The conjunction of high dielectric-constant material and silicone rubber insulation allows the termination to withstand voltages up to 15kV.

3M™ Cold Shrink QT-II 5800-Pb Series PILC Termination Kit is designed for terminating medium voltage cables in outdoor applications. When the 4-skirt terminal's core is unwound, it shrinks over the cable and ensures a leak-proof, ideal fit. The track-resistant, silicone rubber insulation of the termination has a hydrophobic property and offers a long-lasting service life while minimizing leakage currents in wet conditions. IEEE 404/IEEE Standard 48 Approved for Class 1 terminations.

  • Provides a void-free seal to oil/paper-insulated, lead-covered power cables
  • High dielectric-constant material regulates the distribution of electric field stress
  • Suitable for outdoor applications
  • Termination has 0.71 to 1.01-in insulation O.D.
  • Accommodates stranded wires of size 4/0 AWG and solid wires of size 250 kcmil
  • Molded, silicone rubber insulation offers durability and reduces leakage currents in damp conditions
  • Withstands voltages up to 15kV and is 110 kV BIL-rated
  • Includes a 4-skirt, single-conductor, cold shrink termination and an OS-0040 1-hole lug/stem connector
  • IEEE 404/IEEE Standard 48 Approved for Class 1 terminations

Specifications

  • 3M ID: 80610734883
  • Agency Approvals: IEEE
  • BIL: 110 kV
  • Breakout Boot: No
  • Cable Insulation Outside Diameter Range: 0.71-1.01 in
  • Cable Insulation Outside Diameter Range (metric): 18.0-25.6 mm
  • Case Quantity: 1
  • Conductor Size by Voltage: (15 kV) 4/0 AWG, Stranded, (15 kV) 250 kcmil, Solid
  • Conductor Sizes: 250 kcmil, 4/0 AWG
  • Family: QT-II
  • Indoor/Outdoor: Outdoor Skirted
  • Insulation Level: 100%, 133%
  • Insulation Rejacketing: No
  • Lug/Stem Connector Included in Kit: OS-0040 (1-Hole)
  • Maximum Installed Length: 17.25 in
  • Number of Conductors: 1
  • Number of Skirts: 4
  • Product Series: 5800-Pb
  • RoHS 2011/65/EU Compliant: Undetermined
  • RoHS EU Comments: Contact 3M for information
  • Shielding Type: Paper Insulated Lead Covered (PILC)
  • Trademark: 3M
  • Voltage: 15 kV

Legal Disclaimer

  • Manufacturing Origin: USA
  • The designation that a product is Manufactured in the USA means the product undergoes substantial transformation in one of our U.S. Manufacturing plants. Some products contain imported components.
  • Note: 3M products offered on a government contract that require country of origin representation must be certified by 3M Trade Compliance. Contact customer service at 800-245-3573 to request a certificate.

Overview

UPC 05400750454
GTiN 00054007504542
Family Brand Name 3M
Voltage 15 kV
Number of Conductors 1
Conductor Size 4/0 AWG
