3M 5810-A-2/0 5810-A-2/0 200 AMP LO

Overview

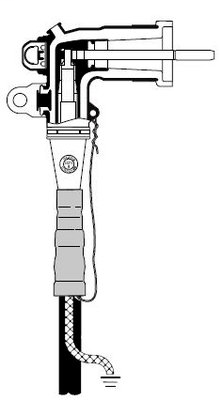

This kit contains an elbow body, coppertop compression connector, loadbreak probe, probe installation tool, silicone lubricant, cold shrink jacketing tube, mastic strips, ground braid assembly, constant force spring, CC-3 cable cleaning pads, and installation instructions

Specifications

• Product Series: 5810
• Insulation Diameter Range (metric): 16.0-20.8 mm
• RoHS EU Comments: Contact 3M for information
• Component Type: Elbow
• Cable Voltage Rating: 8 kV, 5 kV
• Insulation Level: 100%, 133%
• Family: 3M 200 Amp 5-15 kV Industrial Loadbreak Elbow
• Insulation Diameter Range: 0.630-0.820 in
• RoHS 2011/65/EU Compliant: Undetermined
• Cable Type: Stranded, Compact/Solid
• Conductor Size by Voltage: (8 kV, 133%) 3/0 AWG, Compact/Solid, (5 kV, 100%) 3/0 AWG, Compact/Solid, (5 kV, 133%) 3/0 AWG, Compact/Solid, (8 kV, 100%) 3/0 AWG, Compact/Solid, (8 kV, 133%) 2/0 AWG, Stranded, (8 kV, 100%) 2/0 AWG, Stranded, (5 kV, 133%) 2/0 AWG, Stranded
• Conductor Sizes: 2/0 AWG, 3/0 AWG
• Insulation Outside Diameter: 0.63 to 0.82 Inch
• Current Rating: 200 Ampere
