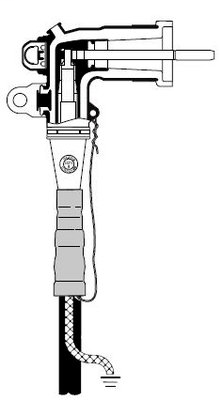

3M 5810-C-4/0 15 kV - 200 Amp Industrial Loadbreak Elbow Connector
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$261.03/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # 5810-C-4/0
North Coast Part # 271894

Features

  • Ideal for connecting underground cable to transformers, switchgear and junctions that come with loadbreak bushings
  • Cold shrink tube seals from the bottom of the elbow to the cable jacket
  • Specially designed for use on tape shield, wire shield, UniShield® and jacketed concentric neutral types of cables
  • High-quality, peroxide-cured EPDM provides better insulation
  • Meets ANSI/IEEE Standard 386.

Specifications

  • Cable Type: Compact/Solid - Stranded
  • Cable Voltage Rating: 15 kV
  • Component Type: Elbow
  • Conductor Size by Voltage: (15 kV, 100%) 250 kcmil, Compact/Solid - (15 kV, 100%) 4/0 AWG, Stranded - (15 kV, 133%) 250 kcmil, Compact/Solid - (15 kV, 133%) 4/0 AWG, Stranded
  • Conductor Sizes: 4/0 AWG - 250 kcmil
  • Current Rating: 200 Ampere
  • Family: 3M™ 200 Amp 5-15 kV Industrial Loadbreak Elbow
  • Includes Compression Connector: Yes
  • Insulation Diameter Range: 0.850-1.100 in
  • Insulation Diameter Range (Metric): 21.6-27.9 mm
  • Insulation Level: 100% - 133%
  • Maximum Insulation Outer Diameter (Imperial): 1.1 in
  • Maximum Insulation Outer Diameter (Metric): 28 mm
  • Maximum Operating Voltage: Non Pertinent
  • Product Type: Accessory
  • RoHS EU Comments: Contact 3M for information
  • Separable Connector Type: Load Break Elbows

Overview

UPC 05400704783
Item Long Description 3M 5810 Series Industrial Loadbreak Elbow Kit is a fully shielded and insulated dead front termination. This kit is for connecting underground cable to transformers, switchgear and junctions that come with loadbreak bushings. It is designed for use on tape shield, wire shield, UniShield and JCN types of cables. The elbow is peroxide cured EPDM.
GTiN 00054007047834
Size 250 kcmil; 4/0 AWG
Type Elbow
Family Brand Name 3M
Conductor Size 250 MCM
Component Type Elbow
Voltage 15,000 Volt
