Usually ships within 8 to 12 Days
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # 5842
North Coast Part # 545692


  • Requires no heat

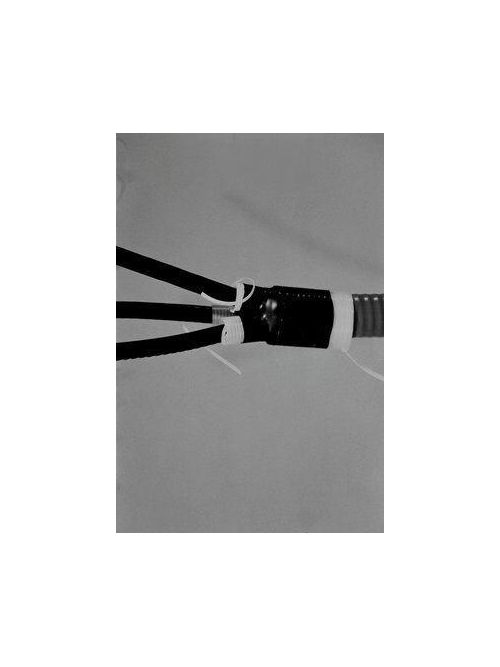

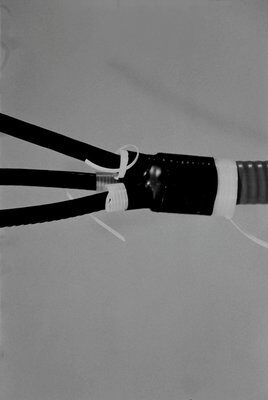

  • Seals the sheath area for 3-conductor cables without ground wires
  • 3M™ Cold Shrink Sheath Seal Kit contains all the accessories required for sealing the break out for 3 conductor cables without ground wires.
  • 3M™ Cold Shrink Sheath Seal Kit has sufficient materials to make a single 3 conductor break out. RoHS 2011/65/EU Compliant.
  • Handles conductors of size 2 to 4/0 AWG
  • RoHS 2011/65/EU Compliant

Legal Disclaimer

  • The designation that a product is Manufactured in the USA means the product undergoes substantial transformation in one of our U.S. Manufacturing plants. Some products contain imported components.
  • Note: 3M products offered on a government contract that require country of origin representation must be certified by 3M Trade Compliance. Contact customer service at 800-245-3573 to request a certificate.


  • 3M ID: 80610123483
  • Brand: 3M™
  • Cable Accessory Products: Sheath Seal Kits
  • Conductor Sizes: 4/0 AWG - 500 kcmil (120 - 250 mm²)
  • Inner Diameter After Shrink (Imperial): 1.8 in
  • Inner Diameter After Shrink (Metric): 45.7 mm
  • Inner Diameter Before Shrink (Imperial): 3.1 in
  • Inner Diameter Before Shrink (Metric): 78.7 mm
  • Insulation/Jacket O.D. Range: 1.80 - 3.10 in
  • Insulation/Jacket O.D. Range (Metric): 45.7 - 78.7 mm
  • Insulation O.D. Range: 0.77 - 1.38 in
  • Insulation O.D. Range (Metric): 19.6 - 35.1 mm
  • Manufacturing Origin: USA
  • Maximum Jacket Outside Diameter: 3.1 in
  • Maximum Jacket Outside Diameter (Metric): 78.7 mm


UPC 05400712292
GTiN 00054007122920
Family Brand Name 3M
Conductor Size 4/0 AWG
