Overview

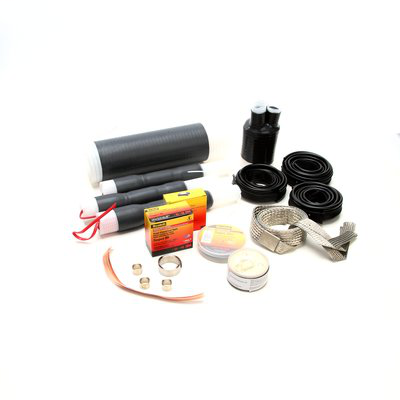

3M™ Cold Shrink QT-III 7600-T-3G Series Termination Kit includes a non-skirted, 3-phase termination. It ensures a pliable, tight seal for tape shield, wire shield and UniShield® power cables. The silicone rubber sealing compounds allow the termination to withstand voltages of 5 to 35kV.
3M™ Cold Shrink QT-III 7600-T-3G Series Termination Kit is designed for terminating medium voltage, 3/C-shielded, 3-conductor cables with internal ground wires. The UV stable, track-resistant and hydrophobic construction makes the termination suitable for indoor applications. The lower surface stress, high dielectric-constant material offers an optimized BIL performance while ensuring a leak-proof, compact fit. IEEE Approved.
- Provides a void-free seal to tape shield, wire shield and UniShield® power cables
- High dielectric-constant material regulates the distribution of electric field stress
- Suitable for indoor applications
- Termination has 0.50 to 0.70-in insulation O.D. and 2.80-in maximum cable O.D.
- Accommodates wire sizes of 1 to 3/0 AWG at 5kV 100%, 2 to 2/0 AWG at 8 kV 100%, 2 to 2/0 AWG at 8 kV 133%
- Silicone rubber insulation offers durability and reduces leakage currents in damp conditions
- Withstands voltages of 5 to 35kV and is 95kV BIL-rated
- Includes a non-skirted, 3-phase, cold shrink termination
- IEEE Approved
Specifications
- 3M ID: 80611443609
- Agency Approvals: IEEE
- BIL: 95 kV
- Brand: 3M™
- Cable Insulation Outside Diameter Range: 0.50-0.70 in
- Cable Insulation Outside Diameter Range (metric): 12.7-17.8 mm
- Case Quantity: 1
- Conductor Size by Voltage: (5 kV, 100%) 1-3/0 AWG, (5 kV, 133%) 2-2/0 AWG, (8 kV, 100%) 2-2/0 AWG, 8 kV, 133%) 2-2/0 AWG
- Conductor Sizes: 1 AWG, 1/0 AWG, 2 AWG, 2/0 AWG, 3/0 AWG
- Family: QT-III
- Indoor/Outdoor: Indoor
- Insulation Rejacketing: Yes
- Lug/Stem Connector Included in Kit: No
- Maximum Cable Outside Diameter: 2.80 in
- Maximum Cable Outside Diameter (metric): 71.1 mm
- Maximum Installed Length: 8.50 in
- Number of Conductors: 3
- Number of Skirts: 0
- Product Series: 7600-3G
- RoHS 2011/65/EU Compliant: Undetermined
- RoHS EU Comments: Contact 3M for information
- Shielding Type: Tape Shield, UniShield®, Wire Shield
- Trademark: 3M
- Voltage: 5 kV, 8 kV
- Voltage Application: Medium Voltage
Legal Disclaimer
- Manufacturing Origin: USA
- The designation that a product is Manufactured in the USA means the product undergoes substantial transformation in one of our U.S. Manufacturing plants. Some products contain imported components.
- Note: 3M products offered on a government contract that require country of origin representation must be certified by 3M Trade Compliance. Contact customer service at 800-245-3573 to request a certificate.
