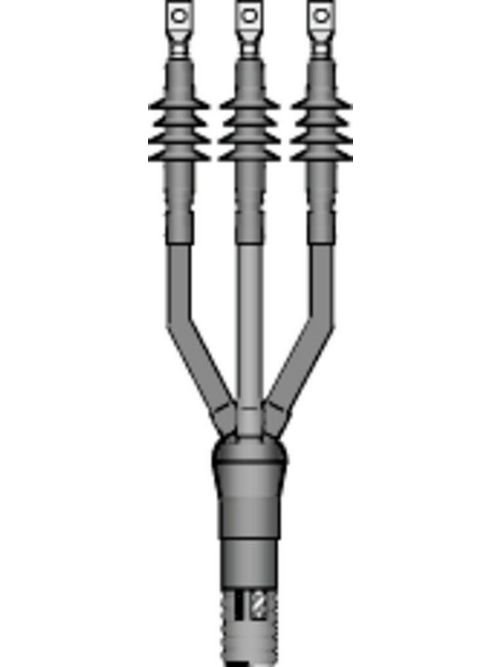

3M 7622-S-2-3G Outdoor 3 Conductor Cables Termination Kit with Ground Wires

Features

• Provides a void-free seal to tape shield, wire shield and UniShield® power cables
• High dielectric-constant material regulates the distribution of electric field stress
• Suitable for outdoor applications
• Integrated design allows for easier installation, while sealing compounds provide constant radial pressure

Specifications

• BIL: 110 kV
• Breakout Boot: Yes
• Cable Insulation Outside Diameter Range: 0.70-0.92 in
• Cable Insulation Outside Diameter Range (Metric): 17.8-23.4 mm
• Cable Shielding: Wire Shield - UniShield® - Tape Shield
• Conductor Size by Voltage: (5 kV, 100%) 4/0 AWG-350 kcmil, (5 kV, 133%) 3/0 AWG-350 kcmil, (8 kV, 100%) 3/0 AWG-350 kcmil, (8 kV, 133%) 3/0 AWG-350 kcmil, (15 kV, 100%) 1/0-4/0 AWG, (15 kV, 133%) 2-3/0 AWG
• Conductor Sizes: 1 AWG - 2 AWG - 350 kcmil - 3/0 AWG - 1/0 AWG - 300 kcmil - 250 kcmil - 4/0 AWG - 2/0 AWG
• Family: QT-III
• Indoor/Outdoor: Outdoor Skirted
• Insulation Level: 133% - 100%
• Insulation Outer Diameter (Imperial): 0.91 in - 0.8 in - 0.78 in - 0.88 in - 0.83 in - 0.75 in - 0.81 in - 0.71 in - 0.85 in - 0.74 in - 0.92 in - 0.73 in - 0.72 in - 0.79 in - 0.82 in - 0.84 in - 0.76 in - 0.86 in - 0.77 in - 0.9 in - 0.89 in - 0.7 in - 0.87 in
• Insulation Outer Diameter (Metric): 21.59 mm - 21.082 mm - 21.844 mm - 22.606 mm - 20.574 mm - 23.368 mm - 19.812 mm - 17.78 mm - 20.828 mm - 18.796 mm - 22.352 mm - 20.066 mm - 18.542 mm - 19.05 mm - 23.114 mm - 18.034 mm - 20.32 mm - 18.288 mm - 19.558 mm - 22.86 mm - 19.304 mm - 21.336 mm - 22.098 mm
• Insulation Rejacketing: Yes
• Lug/Stem Connector Included in Kit: No
• Maximum Cable Outside Diameter: 3.30 Inch
• Maximum Cable Outside Diameter (Metric): 83.8 mm
• Maximum Installed Length: 9.80 in
• Number of Conductors: 3
• Number of Skirts: 2
• RoHS EU Comments: Contact 3M for information
• Voltage: 5 kV - 8 kV - 15 kV
• Voltage Application: Medium Voltage
