3M 7622-T-110-3G Indoor 3 Conductor Cables Termination Kit with Ground Wires

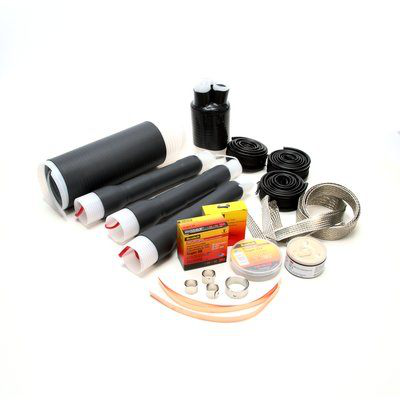

Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$1,338.25/ea
Usually ships within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # 7622-T-110-3G
North Coast Part # 266484

Overview

3M™ Cold Shrink QT-III 7600-T-3G Series Termination Kit includes a non-skirted, 3-phase termination. It ensures a pliable, tight seal for tape shield, wire shield and UniShield® power cables. The silicone rubber sealing compounds allow the termination to withstand voltages of 5 to 35kV.

3M™ Cold Shrink QT-III 7600-T-3G Series Termination Kit is designed for terminating medium voltage, 3/C-shielded, 3-conductor cables with internal ground wires. The UV stable, track-resistant and hydrophobic construction makes the termination suitable for indoor applications. The lower surface stress, high dielectric-constant material offers an optimized BIL performance while ensuring a leak-proof, compact fit. IEEE Approved.

  • Provides a void-free seal to tape shield, wire shield and UniShield® power cables
  • High dielectric-constant material regulates the distribution of electric field stress
  • Suitable for indoor applications
  • Termination has 0.70 to 0.92-in insulation O.D. and 3.30-in maximum cable O.D.
  • Accommodates wire sizes of 4/0 AWG to 350 kcmil at 5kV 100%, 3/0 AWG to 350 kcmil at 8 kV 100%, 3/0 AWG to 350 kcmil at 8 kV 133%, 1/0 to 4/0 AWG at 15kV 100%, 2 to 3/0 AWG at 15kV 133%
  • Silicone rubber insulation offers durability and reduces leakage currents in damp conditions
  • Withstands voltages of 5 to 35kV and is 110 kV BIL-rated
  • Includes a non-skirted, 3-phase, cold shrink termination
  • IEEE Approved

Specifications

  • 3M ID: 80611202708
  • Agency Approvals: IEEE
  • BIL: 110 kV
  • Brand: 3M™
  • Breakout Boot: Yes
  • Cable Insulation Outside Diameter Range: 0.70-0.92 in
  • Cable Insulation Outside Diameter Range (metric): 17.8-23.4 mm
  • Case Quantity: 1
  • Conductor Size by Voltage: (5 kV, 100%) 4/0 AWG-350 kcmil, (5 kV, 133%) 3/0 AWG-350 kcmil, (8 kV, 100%) 3/0 AWG-350 kcmil, (8 kV, 133%) 3/0 AWG-350 kcmil, (15 kV, 100%) 1/0-4/0 AWG, (15 kV, 133%) 2 AWG-3/0 AWG
  • Conductor Sizes: 1/0 AWG, 2/0 AWG, 250 kcmil, 3/0 AWG, 300 kcmil, 350 kcmil, 4/0 AWG
  • Family: QT-III
  • Indoor/Outdoor: Indoor Non-skirted
  • Insulation Level: 1, 1.33
  • Insulation Rejacketing: Yes
  • Lug/Stem Connector Included in Kit: No
  • Maximum Cable Outside Diameter: 3.30 in
  • Maximum Cable Outside Diameter (metric): 83.8 mm
  • Maximum Installed Length: 12.00 in
  • Number of Conductors: 3
  • Number of Skirts: 0
  • Product Series: 7600-T-3G
  • RoHS 2011/65/EU Compliant: Undetermined
  • RoHS EU Comments: Contact 3M for information
  • Shielding Type: Tape Shield, UniShield®, Wire Shield
  • Trademark: 3M
  • Voltage: 15 kV, 5 kV, 8 kV
  • Voltage Application: Medium Voltage

Legal Disclaimer

  • Manufacturing Origin: USA
  • The designation that a product is Manufactured in the USA means the product undergoes substantial transformation in one of our U.S. Manufacturing plants. Some products contain imported components.
  • Note: 3M products offered on a government contract that require country of origin representation must be certified by 3M Trade Compliance. Contact customer service at 800-245-3573 to request a certificate.

Overview

UPC 05400743670
GTiN 00054007436706
Voltage 8 kV
Type QT-III
Number of Conductors 3
Conductor Size 1/0 AWG; 2/0 AWG; 250 MCM; 3/0 AWG; 300 MCM; 350 MCM; 4/0 AWG
Applications Indoor
Cable Type Tape Shield; UniShield(R); Wire Shield
Family Brand Name 3M
