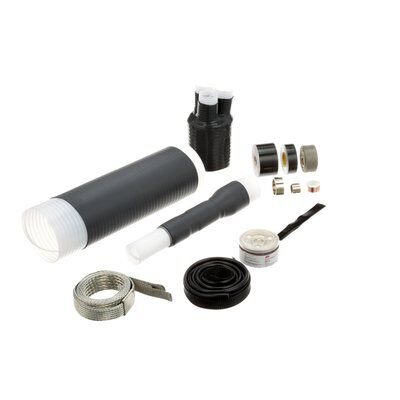

3M 7623-T-95-3G Indoor 3 Conductor Cables Termination Kit with Ground Wires

Features

• Provides a void-free seal to tape shield, wire shield and UniShield® power cables
• High dielectric-constant material regulates the distribution of electric field stress
• 3M™ Cold Shrink QT III 7600 T 3G Series Termination Kit includes a non skirted, 3 phase termination. It ensures a pliable, tight seal for tape shield, wire shield and UniShield® power cables. The silicone rubber sealing compounds allow the termination to withstand voltages of 5 to 35kV.
• Suitable for indoor applications
• Silicone rubber insulation offers durability and reduces leakage currents in damp conditions

Legal Disclaimer

• The designation that a product is Manufactured in the USA means the product undergoes substantial transformation in one of our U.S. Manufacturing plants. Some products contain imported components.
• Note: 3M products offered on a government contract that require country of origin representation must be certified by 3M Trade Compliance. Contact customer service at 800-245-3573 to request a certificate.

Specifications

• 3M ID: 80611443617
• Agency Approvals: IEEE
• Application: Cable Connection
• Brand: 3M™
• Breakout Boot: Yes
• Cable Insulation Outside Diameter Range: 0.70-0.92 in
• Cable Insulation Outside Diameter Range (Metric): 17.8-23.4 mm
• Cable Shielding: Tape Shield || UniShield® || Wire Shield || Wire-Over-Tape Shield
• Case Quantity: 1
• Conductor Material: Aluminum || Copper
• Conductor Size by Voltage: (5 kV, 100%) 4/0 AWG-350 kcmil, (5 kV, 133%) 3/0 AWG-350 kcmil, (8 kV, 100%) 3/0 AWG-350 kcmil, 8 kV, 133%) 3/0 AWG-350 kcmil
• Conductor Sizes: 1000 kcmil || 250 kcmil || 3/0 AWG || 300 kcmil || 350 kcmil || 4/0 AWG || 500 kcmil || 750 kcmil
• Connector Included: None
• Family: QT-III
• Indoor/Outdoor: Indoor Non-skirted
• Insulation Level: 100% || 133%
• Insulation Outer Diameter (Imperial): 0.7 in || 0.71 in || 0.72 in || 0.73 in || 0.74 in || 0.75 in || 0.76 in || 0.77 in || 0.78 in || 0.79 in || 0.8 in || 0.81 in || 0.82 in || 0.83 in || 0.84 in || 0.85 in || 0.86 in || 0.87 in || 0.88 in || 0.89 in || 0.9 in || 0.91 in || 0.92 in
• Insulation Outer Diameter (Metric): 17.78 mm || 18.034 mm || 18.288 mm || 18.542 mm || 18.796 mm || 19.05 mm || 19.304 mm || 19.558 mm || 19.812 mm || 20.066 mm || 20.32 mm || 20.574 mm || 20.828 mm || 21.082 mm || 21.336 mm || 21.59 mm || 21.844 mm || 22.098 mm || 22.352 mm || 22.606 mm || 22.86 mm || 23.114 mm || 23.368 mm
• Insulation Outside Diameter Range: 1.08 - 1.70 Inch
• Insulation Outside Diameter Range (Metric): 27.4 - 43.2 mm
• Insulation Rejacketing: Yes
• Lug/Stem Connector Included in Kit: No
• Manufacturing Origin: USA
• Maximum Cable Outside Diameter: 3.30 in
• Maximum Cable Outside Diameter (Metric): 83.8 mm
• Maximum Installed Length: 8.50 in
• Maximum Wire Gauge: 500mm²
• Minimum Wire Gauge: 240mm²
• Number of Conductors: 3
• Product Type: Splice
• Splice Type: Inline
• Typical Splice Length: 32 in
• Typical Splice Length (Metric): 813 mm
• Voltage: 15 kV || 25 kV || 35 kV || 5 kV || 8 kV
• Voltage Application: Medium Voltage
