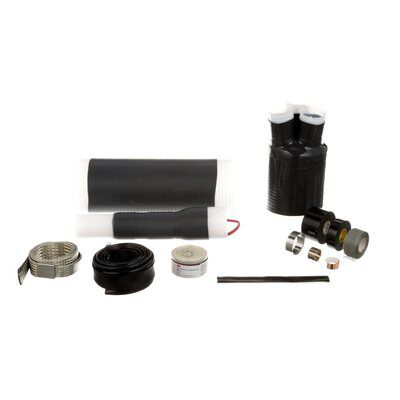

3M 7624-T-95-3G Indoor 3 Conductor Cables Termination Kit with Ground Wires
$1,465.70/ea
Usually ships within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # 7624-T-95-3G
North Coast Part # 1010444

Features

  • Provides a void-free seal to tape shield, wire shield and UniShield® power cables
  • 3M™ Cold Shrink QT III 7600 T 3G Series Termination Kit includes a non skirted, 3 phase termination. It ensures a pliable, tight seal for tape shield, wire shield and UniShield® power cables. The silicone rubber sealing compounds allow the termination to withstand voltages of 5 to 35kV.
  • High dielectric-constant material regulates the distribution of electric field stress
  • Suitable for indoor applications
  • Silicone rubber insulation offers durability and reduces leakage currents in damp conditions

Legal Disclaimer

  • The designation that a product is Manufactured in the USA means the product undergoes substantial transformation in one of our U.S. Manufacturing plants. Some products contain imported components.
  • Note: 3M products offered on a government contract that require country of origin representation must be certified by 3M Trade Compliance. Contact customer service at 800-245-3573 to request a certificate.

Specifications

  • 3M ID: 80611443625
  • Agency Approvals: IEEE
  • Brand: 3M™
  • Breakout Boot: Yes
  • Cable Insulation Outside Diameter Range: 0.92-1.18 in
  • Cable Insulation Outside Diameter Range (Metric): 23.4-30.0 mm
  • Cable Shielding: Tape Shield || UniShield® || Wire Shield
  • Case Quantity: 1
  • Conductor Size by Voltage: (5 kV, 100%) 400-500 kcmil, (5 kV, 133%) 400-500 kcmil, (8 kV, 100%) 400-500 kcmil, 8 kV, 133%) 400-500 kcmil
  • Conductor Sizes: 400 kcmil || 500 kcmil
  • Family: QT-III
  • Indoor/Outdoor: Indoor Non-skirted
  • Insulation Level: 100% || 133%
  • Insulation Outer Diameter (Imperial): 0.92 in || 0.93 in || 0.94 in || 0.95 in || 0.96 in || 0.97 in || 0.98 in || 0.99 in || 1 in || 1.01 in || 1.02 in || 1.03 in || 1.04 in || 1.05 in || 1.06 in || 1.07 in || 1.08 in || 1.09 in || 1.1 in || 1.11 in || 1.12 in || 1.13 in || 1.14 in || 1.15 in || 1.16 in || 1.17 in || 1.18 in
  • Insulation Outer Diameter (Metric): 23.368 mm || 23.622 mm || 23.876 mm || 24.13 mm || 24.384 mm || 24.638 mm || 24.892 mm || 25.146 mm || 25.4 mm || 25.654 mm || 25.908 mm || 26.162 mm || 26.416 mm || 26.67 mm || 26.924 mm || 27.178 mm || 27.432 mm || 27.686 mm || 27.94 mm || 28.194 mm || 28.448 mm || 28.702 mm || 28.956 mm || 29.21 mm || 29.464 mm || 29.718 mm || 29.972 mm
  • Insulation Rejacketing: Yes
  • Lug/Stem Connector Included in Kit: No
  • Manufacturing Origin: USA
  • Maximum Cable Outside Diameter: 3.90 in
  • Maximum Cable Outside Diameter (Metric): 99.1 mm
  • Maximum Installed Length: 8.50 in
  • Number of Conductors: 3
  • Voltage: 5 kV || 8 kV
  • Voltage Application: Medium Voltage

Overview

UPC 05400743667
GTiN 00054007436676
Type QT-III
Conductor Size 400 MCM; 500 MCM
Applications Indoor
Cable Type Tape Shield; UniShield(R); Wire Shield
Family Brand Name 3M
Voltage 5 kV
Indoor Outdoor Indoor
