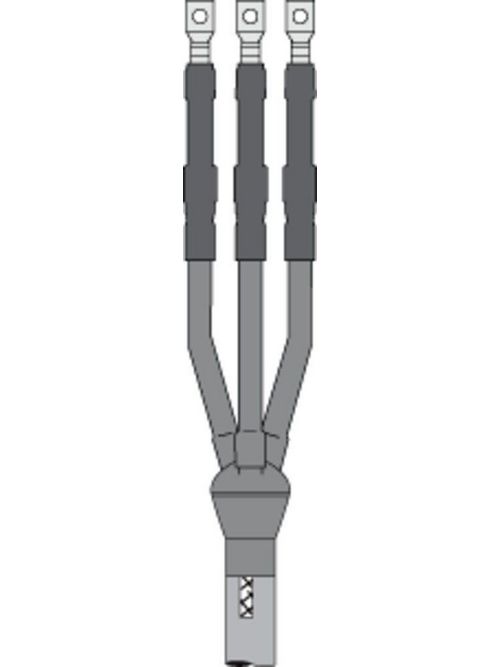

3M 7624-T-95-3W 7624-T-95-3W QT-III

Features

• Provides a void-free seal to tape shield, wire shield and UniShield® power cables
• High dielectric-constant material regulates the distribution of electric field stress
• Suitable for indoor applications and cabinet-mount installations
• Integrated design allows for easier installation in limited spaces, while sealing compounds provide constant radial pressure

Specifications

• BIL: 95 kV
• Breakout Boot: Yes
• Cable Insulation Outside Diameter Range: 0.92-1.18 in
• Cable Insulation Outside Diameter Range (Metric): 23.4-30.0 mm
• Cable Shielding: Tape Shield - Wire Shield - UniShield®
• Conductor Size by Voltage: (5 kV) 500-750 kcmil, (8 kV) 400-600 kcmil
• Conductor Sizes: 600 kcmil - 400 kcmil - 700 kcmil - 750 kcmil - 500 kcmil
• Family: QT-III
• Indoor/Outdoor: Indoor Non-skirted
• Insulation Level: 133% - 100%
• Insulation Outer Diameter (Imperial): 1.15 in - 1.13 in - 1.05 in - 1.11 in - 0.96 in - 0.98 in - 1.16 in - 1.03 in - 1.06 in - 0.94 in - 1.1 in - 1 in - 0.99 in - 0.93 in - 0.95 in - 1.09 in - 0.92 in - 1.18 in - 0.97 in - 1.01 in - 1.04 in - 1.17 in - 1.12 in - 1.14 in - 1.07 in - 1.02 in - 1.08 in
• Insulation Outer Diameter (Metric): 24.638 mm - 27.686 mm - 25.908 mm - 25.146 mm - 28.702 mm - 29.21 mm - 25.4 mm - 24.384 mm - 27.94 mm - 29.464 mm - 26.924 mm - 24.13 mm - 26.67 mm - 25.654 mm - 23.622 mm - 26.162 mm - 23.368 mm - 28.956 mm - 28.448 mm - 26.416 mm - 27.178 mm - 29.972 mm - 28.194 mm - 29.718 mm - 27.432 mm - 23.876 mm - 24.892 mm
• Insulation Rejacketing: Yes
• Lug/Stem Connector Included in Kit: No
• Maximum Installed Length: 8.50 in
• Number of Conductors: 3
• Product Technology: Cold Shrink
• RoHS EU Comments: Contact 3M for information
• Voltage: 15 kV - 5 kV - 8 kV
