3M 7691-S-4-3G 7691-S-4-3G QT-III 3
$1,576.14/ea
Usually ships within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # 7691-S-4-3G
North Coast Part # 544239

Features

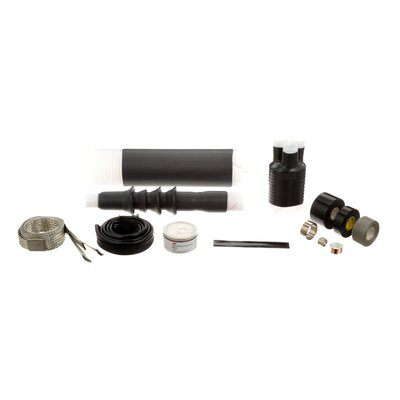

  • Provides a void-free seal to tape shield, wire shield and UniShield® power cables
  • High dielectric-constant material regulates the distribution of electric field stress
  • 3M™ Cold Shrink QT III 7600 S 3G Series Termination Kit includes a skirted, 3 phase termination. It ensures a pliable, tight seal for tape shield, wire shield and UniShield® power cables. The conjunction of high dielectric constant material and sealing compounds allows the termination to withstand voltages of 5 to 35kV.
  • Suitable for outdoor applications
  • Integrated design allows for easier installation, while sealing compounds provide constant radial pressure

Legal Disclaimer

  • The designation that a product is Manufactured in the USA means the product undergoes substantial transformation in one of our U.S. Manufacturing plants. Some products contain imported components.
  • Note: 3M products offered on a government contract that require country of origin representation must be certified by 3M Trade Compliance. Contact customer service at 800-245-3573 to request a certificate.

Specifications

  • 3M ID: 80611450380
  • Agency Approvals: IEEE
  • Application: Cable Connection
  • Brand: 3M™
  • Breakout Boot: Yes
  • Cable Insulation Outside Diameter Range: 0.50-0.70 in
  • Cable Insulation Outside Diameter Range (Metric): 12.7-17.8 mm
  • Cable Shielding: Tape Shield || UniShield® || Wire Shield
  • Cable Type: MV-105 || MV-90
  • Case Quantity: 1
  • Conductor Material: Aluminum || Copper
  • Conductor Size by Voltage: (5 kV, 100%) 1-3/0 AWG, (5 kV, 133%) 3-2/0 AWG, (8 kV, 100%) 2-2/0 AWG, (8 kV, 133%) 2-2/0 AWG, (15 kV, 100%) 2-1 AWG
  • Conductor Sizes: 1 AWG || 1/0 AWG || 2 AWG || 2/0 AWG || 250 kcmil || 3/0 AWG || 350 kcmil || 500 kcmil || 750 kcmil
  • Connector Included: None
  • Family: QT-III
  • Indoor/Outdoor: Outdoor Skirted
  • Insulation Level: 100% || 133%
  • Insulation Outer Diameter (Imperial): 0.5 in || 0.51 in || 0.52 in || 0.53 in || 0.54 in || 0.55 in || 0.56 in || 0.57 in || 0.58 in || 0.59 in || 0.6 in || 0.61 in || 0.62 in || 0.63 in || 0.64 in || 0.65 in || 0.66 in || 0.67 in || 0.68 in || 0.69 in || 0.7 in
  • Insulation Outer Diameter (Metric): 12.7 mm || 12.954 mm || 13.208 mm || 13.462 mm || 13.716 mm || 13.97 mm || 14.224 mm || 14.478 mm || 14.732 mm || 14.986 mm || 15.24 mm || 15.494 mm || 15.748 mm || 16.002 mm || 16.256 mm || 16.51 mm || 16.764 mm || 17.018 mm || 17.272 mm || 17.526 mm || 17.78 mm
  • Insulation Outside Diameter Range: 1.07 - 1.70 Inch
  • Insulation Outside Diameter Range (Metric): 27.2 - 43.2 mm
  • Insulation Rejacketing: Yes
  • Lug/Stem Connector Included in Kit: No
  • Manufacturing Origin: USA
  • Maximum Cable Outside Diameter: 2.80 Inch
  • Maximum Cable Outside Diameter (Metric): 71.1 mm
  • Maximum Installed Length: 12.25 in
  • Maximum Wire Gauge: 325mm²
  • Minimum Wire Gauge: 120mm²
  • Number of Conductors: 3
  • Number of Skirts: 4
  • Product Type: Splice
  • Splice Type: Inline
  • Typical Splice Length: 33 in
  • Typical Splice Length (Metric): 838 mm
  • Voltage: 15 kV || 25 kV || 35 kV || 5 kV || 8 kV
  • Voltage Application: Medium Voltage

Overview

UPC 05400743682
GTiN 00054007436829
Type QT-III
Conductor Size 2/0 AWG
Applications Outdoor
Cable Type Tape Shield; UniShield(R); Wire Shield
Family Brand Name 3M
Voltage 8 kV
Indoor Outdoor Outdoor Skirted
