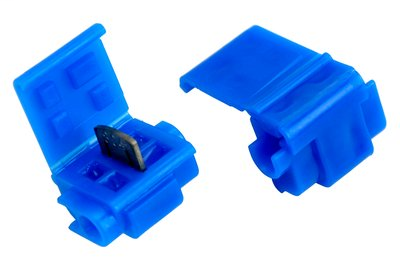

3M 804-POUCH 804-POUCH Mstr Resis T

Overview

Use to electrically connect a (tap) wire end to a through (run) wire, insulate and provide a moisture resistant seal for the connection. Moisture-resistant connection. The 804 connector is greased. Maximum insulation O.D. diameter of .145 inch (3,5mm). The connector shall be rated 600 volts and have a insulation temperature rating of 194(deg)F (90(deg)C). The suggested application tool for this connector is the E-9BM Crimping Tool.

Specifications

• Trademark: Scotchlok
• Minimum Wire Gauge: 18 AWG
• Maximum Operating Temperature (Celsius): 90 Degree Celsius
• Color: Blue
• Maximum Operating Temperature (Fahrenheit): 194 Degree Fahrenheit
• Maximum Recommended Voltage Rating: 600 V
• Conductor Sizes: 18 - 16 AWG / 14 AWG Stranded (Tap)
• Product Family: IDC for Electrical Applications
• RoHS 2011/65/EU Compliant: Yes
• Maximum Wire Gauge: 16 AWG
• RoHS EU Comments: RoHS 2011/65/EU compliant without exemption
• Connector Style: Insulation Displacement
• Agency Approvals: UL
• Flame Retardant: No
• Connection Type: Run and Tap
• Packaging: Box
• Family: IDC for Electrical Applications
