3M 8473 8473 HI-AMP ACCESSORY GROUN
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$114.40/ea
Usually ships within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # 8473
North Coast Part # 819575

Features

  • Offers grounding and sealing for 1 accessory or termination
  • Specially designed to accommodate the shielding and grounding of inline splices
  • Rated for 15 to 35 kV applications

Specifications

  • Cable Accessory Products: Sealing and Grounding Kits
  • Cable Outside Diameter Range: 1.25 - 2.25 in
  • Cable Outside Diameter Range (Metric): 31.8 - 57.2 mm
  • Conductor Size Range: 350-1000 kcmil
  • Conductor Sizes: 750 kcmil - 800 Kcmil - 1000 kcmil - 700 kcmil - 600 kcmil - 900 kcmil - 500 kcmil - 350 kcmil - 400 kcmil
  • Maximum Conductor Size: 1000 kcmil
  • Maximum Operating Voltage: 35 Kilovolt
  • Minimum Conductor Size: 0 NP
  • Overall Width (Imperial): 0 NP
  • Product Type: Grounding Accessory Kit
  • RoHS EU Comments: Contact 3M for information

Overview

UPC 05400750043

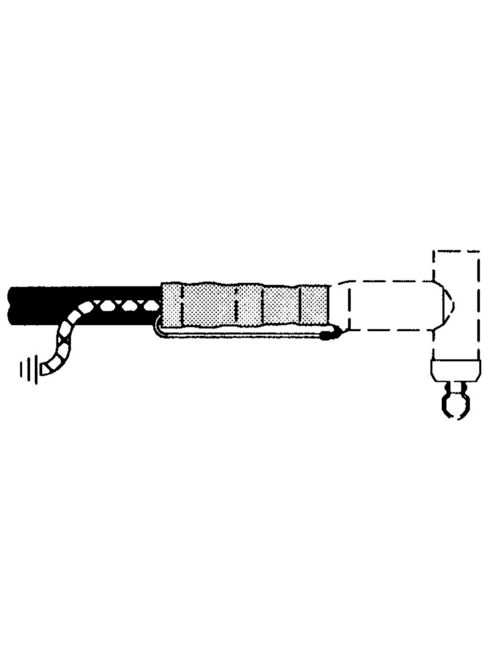

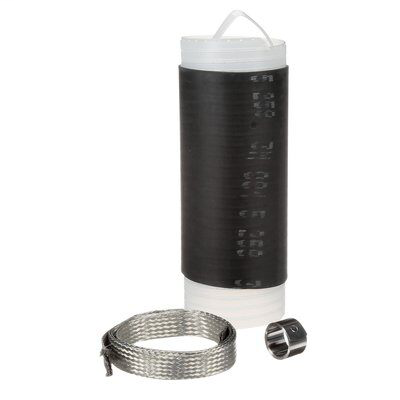

Item Long Description 3M Hi Amp Splice Accessory Grounding Kit is designed to accommodate the grounding accessories installed on 15 to 35 kV longitudinally corrugated, heavy duty tape and conventional tape shielded power cables.
GTiN 00054007500438
Family Brand Name 3M
