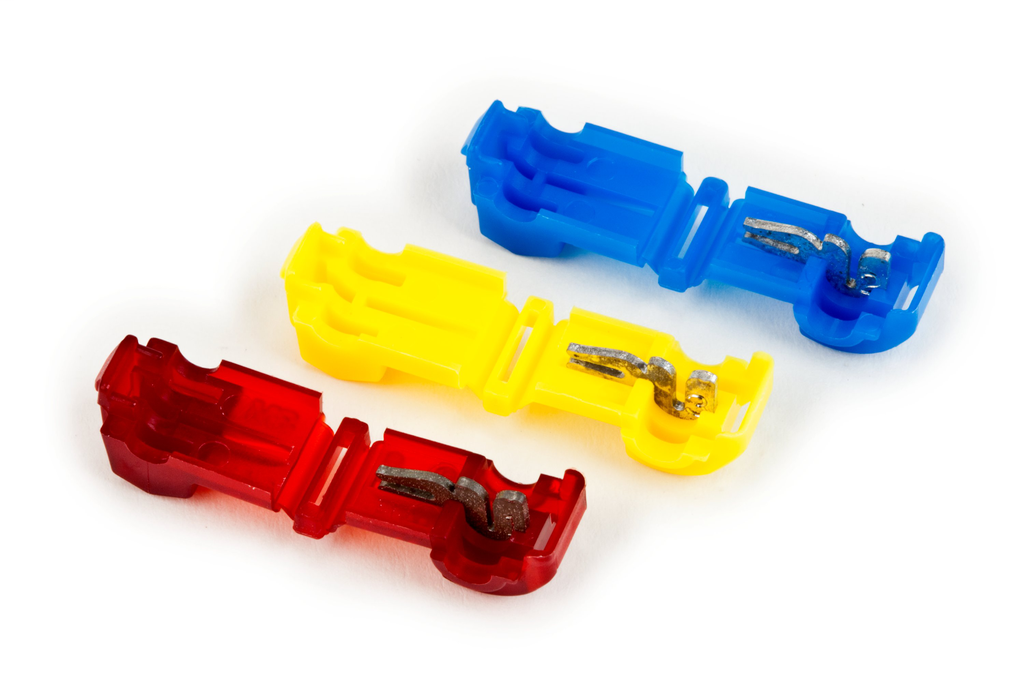

3M 952X-BOTTLE Self-Strip 50/Bottle T-Tap
$0.49/ea
Usually ships within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # 952X-BOTTLE
North Coast Part # 339739

Features

  • Nylon-insulated connector electrically taps into a wire in mid-span without cutting

Specifications

  • Manufacturer Catalog Number: 7000058873
  • Barrel Style: Insulated Self-Stripping
  • Color Family (incorporate Product Color): Blue
  • Conductor Size: 18 - 14 AWG (0.75 - 1.5 mm^2)
  • Connection Type: T-tap
  • Connection Width (Imperial): 0.25 in
  • Connection Width (Metric): 6.35 mm
  • Connector / Connector Tool: 3M Crimping Tool E-9BM Mechanics (slip joint) Pliers
  • Connector Style: Insulation Displacement
  • Disconnect Type: Female
  • Fastener Orientation: Female
  • Flame Retardant: Yes
  • Grease Filling Against Corrosion: No
  • Insulation Color: Blue
  • Insulation Material: Nylon
  • Manufacturing Origin: USA
  • Material: Insulator: FR Nylon, Element: Tin plated brass
  • Maximum Conductor Size: 14 AWG
  • Maximum Insulation Outer Diameter (Metric): 3.7 mm
  • Maximum Insulation Outside Diameter: 0.145 in
  • Maximum Operating Temperature (Celsius): 105 Degree Celsius
  • Maximum Operating Temperature (Fahrenheit): 221 Degree Fahrenheit
  • Maximum Recommended Voltage Rating: 600 V
  • Maximum Wire Gauge: 14 AWG
  • Minimum Conductor Size: 18 AWG
  • Minimum Wire Gauge: 18 AWG
  • Recommended Crimping Tool: E-9BM Mechanics (slip joint) Pliers
  • Terminal Type: T-tap

Packaging

  • Package Length: 1.62500 in
  • Package Height: 4.37500 in
  • Package Weight: 0.1839 LBS

Overview

UPC 05400708427
GTiN 00054007084273
Size 18 - 14 AWG
Type Insulation Displacement
Material Element: Tin Plated Brass,Insulator: FR Nylon
Applications IDC for Electrical Applications
Temperature Rating 221 F
Family Brand Name 3M
TC Connection T-Tap
Sub Brand Scotchlok
Barrel Type Insulated Self-Stripping
Terminal Type T-tap
Conductor Size 14 AWG
Country of Origin USA
Connection Type T-tap
Insulation Material Nylon
Flame Retardant Yes
Max Operating Temperature 221 degrees F
